Study on the moment tensor and seismogenic tectonic of the Ninglang MS5.5 Earthquake on January 2, 2022, Yunnan Province
-
摘要:
基于云南和四川区域地震台网的数字地震观测资料，采用矩心矩张量反演方法，结合断层失稳参数，对2022年1月2日发生在云南宁蒗的MS5.5地震的震源机制和发震构造进行研究. 结果显示，宁蒗MS5.5地震破裂过程由两个在时间和空间上独立的子地震组成：较大子地震Mmajor占总地震矩的74.7%，矩震级为MW5.2，较小子地震Mminor占总地震矩的25.3%，矩震级为MW4.9，二者均为典型的正断层地震. 断层失稳参数分析显示，Mmajor震源机制解中的节面I对应的断裂，即走向NW、倾向NE的永宁断裂推测其为主发震断裂. 较大余震的震源机制解表明，主震激发了震中区附近的次级断裂的活动. 研究认为，2022年宁蒗MS5.5地震是在区域构造应力场的作用下，永宁断裂继2012年6月24日宁蒗—盐源MS5.7地震后，沿NW方向进一步扩展的结果，反映出该断裂在过去十年中持续积累应力并发生破裂的构造演化特征.
-
关键词:
- 2022年宁蒗5.5级地震 /
- 地震矩张量 /
- 震源机制解 /
- CLVD分量
Abstract:Based on digital seismic data from the regional seismic networks of Yunnan and Sichuan, this study investigates the focal mechanism and seismogenic structure of the MS5.5 Ninglang earthquake that occurred on January 2, 2022, using centroid moment tensor inversion combined with fault instability parameter. The results show that the rupture process consisted of two spatially and temporally distinct sub-events. The larger sub-event (Mmajor) accounted for 74.7% of the total seismic moment with a moment magnitude of MW5.2, while the smaller sub-event (Mminor) contributed 25.3% with a moment magnitude of MW4.9. Both sub-events exhibit typical normal faulting characteristics. Fault instability parameter analysis indicates that nodal plane I of the Mmajor focal mechanism corresponds to a NW-striking, NE-dipping fault, consistent with the Yongning fault, which is inferred to be the primary seismogenic fault. The focal mechanisms of the larger aftershocks suggest that the mainshock triggered seismicity on secondary faults near the epicentral area. The results suggest that the 2022 Ninglang MS5.5 earthquake was a continuation of the NW-trending rupture of the Yongning fault under the regional tectonic stress field, following the Ninglang–Yanyuan MS5.7 earthquake on June 24, 2012. This reflects a structural evolution characteristic involving sustained stress accumulation and repeated rupture along the fault over the past decade.
-
-
图 5

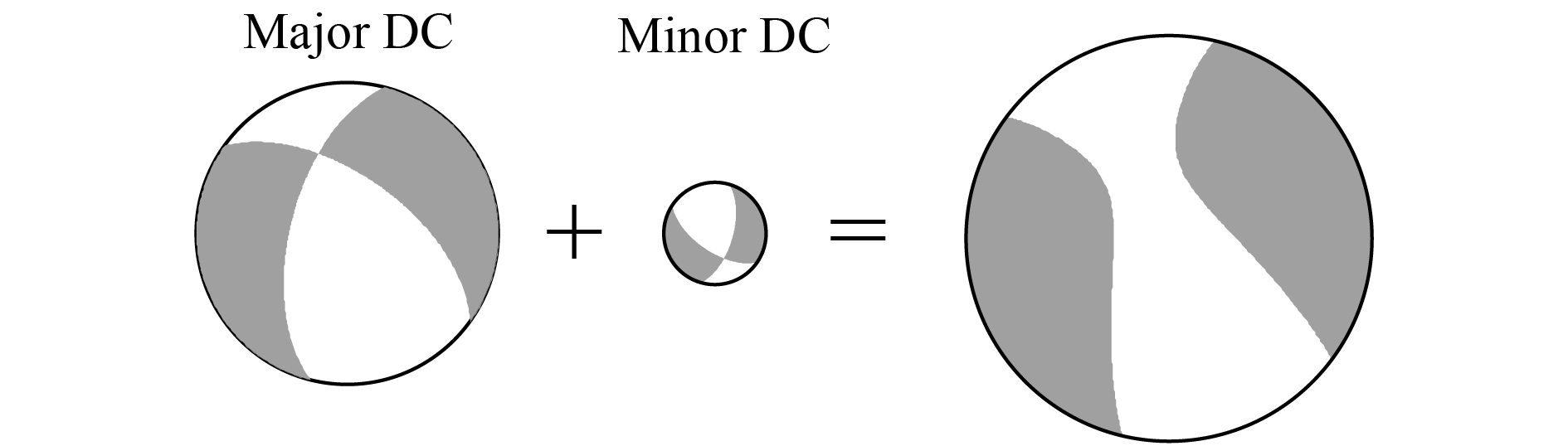

偏矩张量解分解(沙滩球直径与M0成正比)
Figure 5.
Decomposition of the Deviatoric MT solution (The radius of the beach ball is proportional to M0.)
图 7

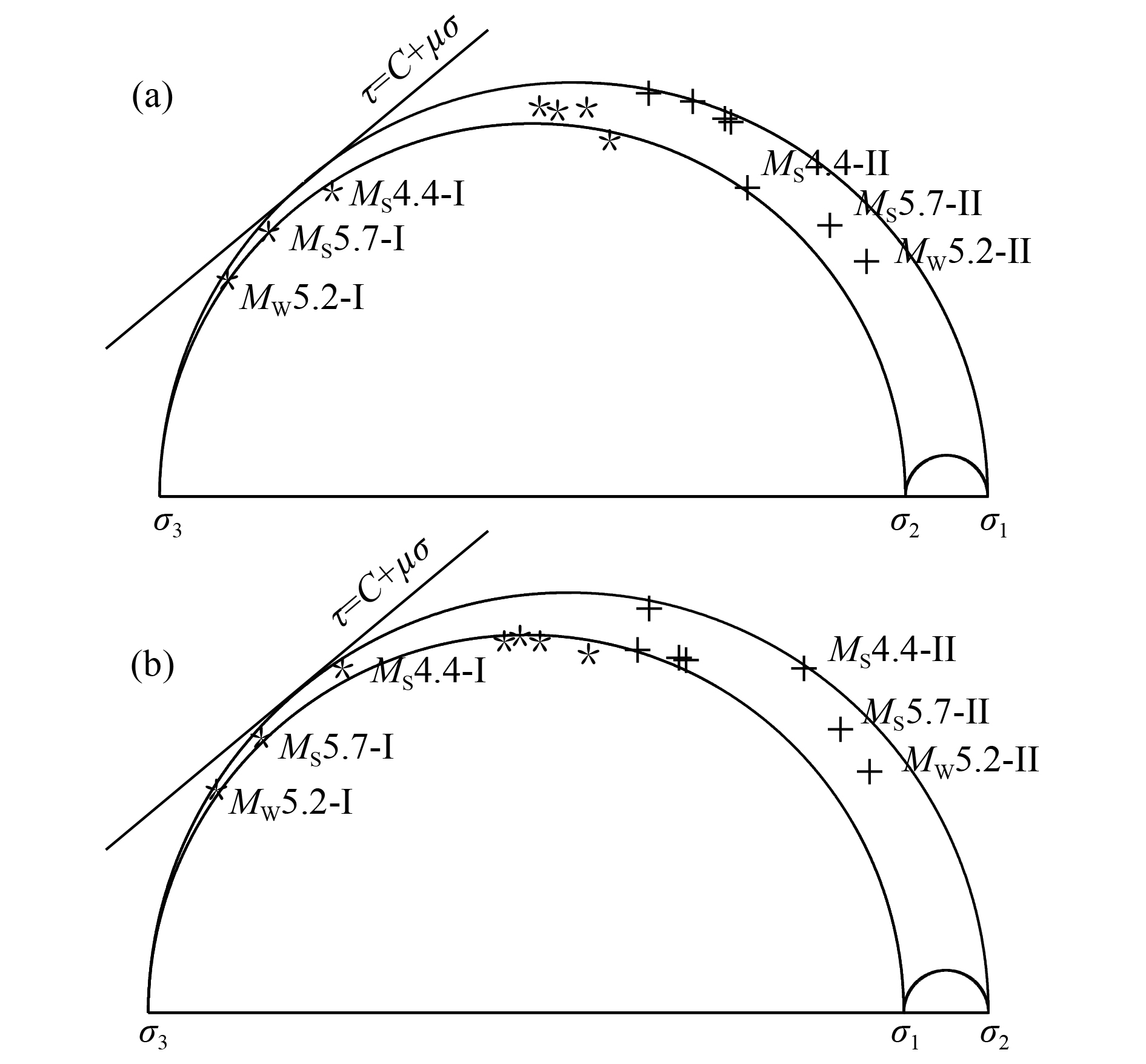

滇西北构造应力场应力莫尔圆与地震震源机制解节面投影
Figure 7.
Mohr circle diagram of tectonic stress field in Northwestern Yunnan and projection of the nodal plane of the focal mechanism solution

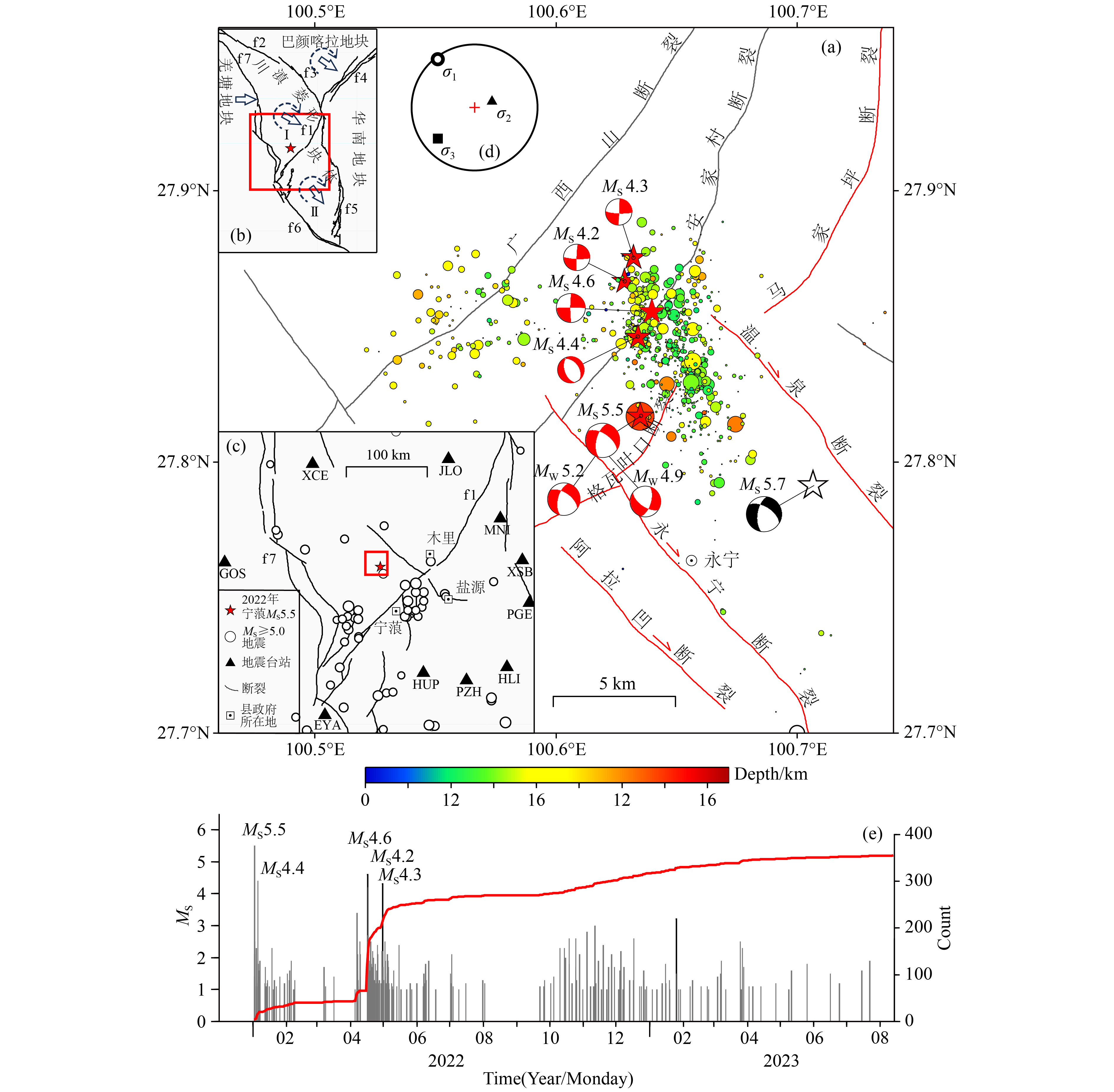

表 1
2022年宁蒗5.5级主震和余震定位
Table 1.
Location of Ninglang MS5.5 mainshock and aftershocks on 2022
MS Date Time Depth(km) Lontitude(°) Latitude(°) 5.5 2022-01-02 15:02:07 10 100.65 27.79 4.4 2022-01-05 17:52:49 6 100.64 27.84 4.6 2022-04-16 08:32:14 9 100.62 27.77 4.2 2022-04-17 00:18:37 8 100.61 27.75 4.3 2022-04-30 01:23:49 8 100.61 27.77
下载: 导出CSV

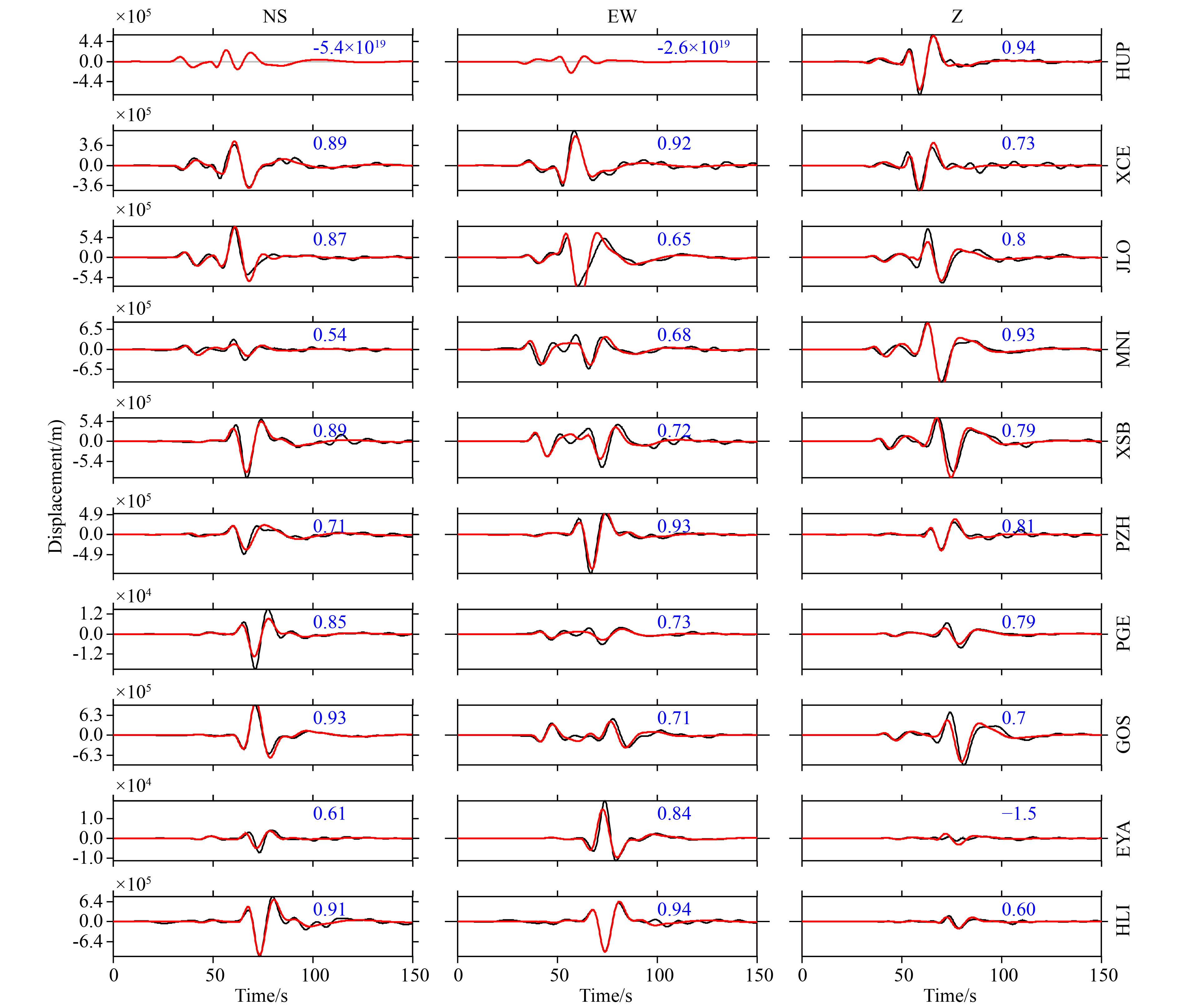

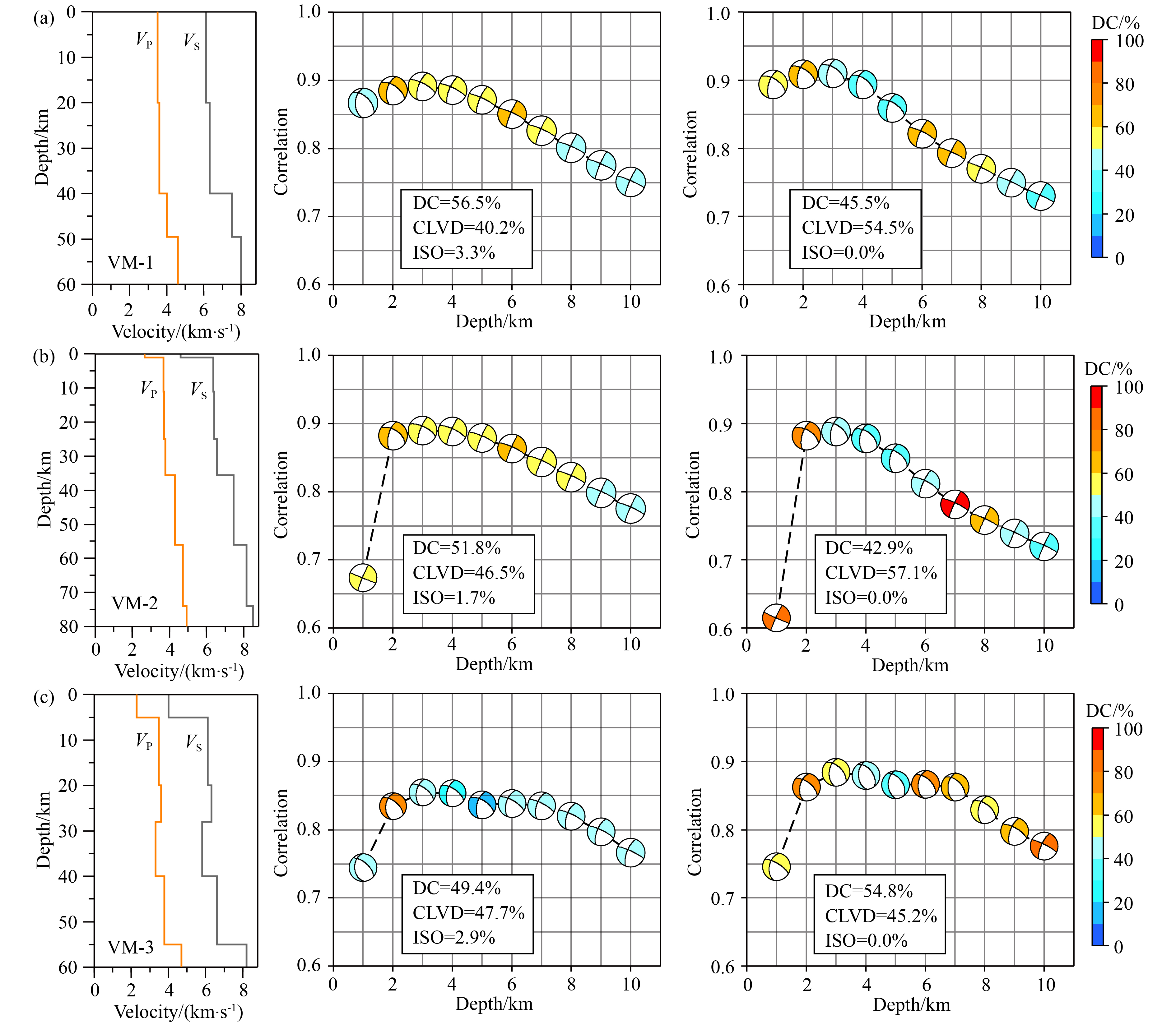

表 2
地壳速度模型与VR值
Table 2.
Crustal velocity models and VR values
VR(DC) VR(Deviatoric MT) VR(Full MT) VM-1 72% 82% 82% VM-2 72% 82% 82% VM-3 68% 76% 76%
下载: 导出CSV

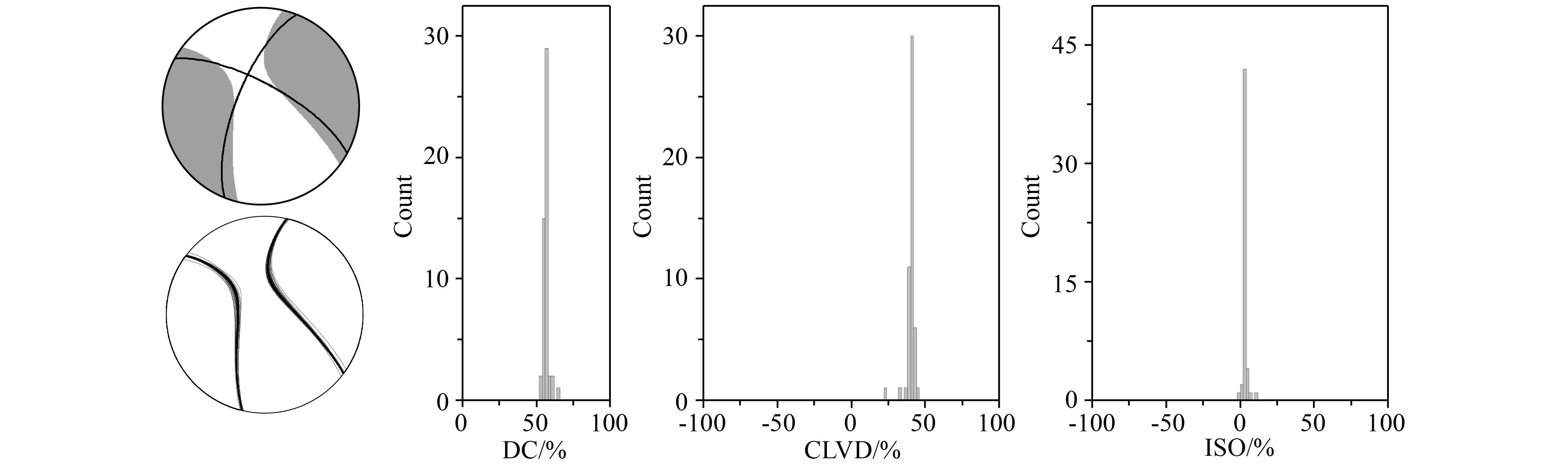

表 3
2022年宁蒗5.5级地震全矩张量反演结果
Table 3.
Full MT inversion results for the 2022 Ninglang MS5.5 earthquake
Item Value Centroid: Lat./Lon./Depth 27.79°/100.65°/3 km Centroid time (hh:mm:ss.s) 15:02:11.4 M0/MW 9.577 × 1016 N·m / 5.29 Nodal Plane-I: Strike/Dip/Rake 299°/71°/-158° Nodal Plane-II: Strike/Dip/Rake 201°/70°/-20° Uncertainty (2σ): Strike/Dip/Rake 1.0°/2.2°/2.0° DC/CLVD/ISO 56.5%/40.2%/3.3% Uncertainty (2σ): DC/CLVD/ISO 3.8%/6.0%/3.0% M [Mrr/Mtt/Mpp/Mrt/Mrp/Mtp] [-2.19/-3.32/10.55/2.40/0.54/-5.8]
× 1016 N·m
下载: 导出CSV

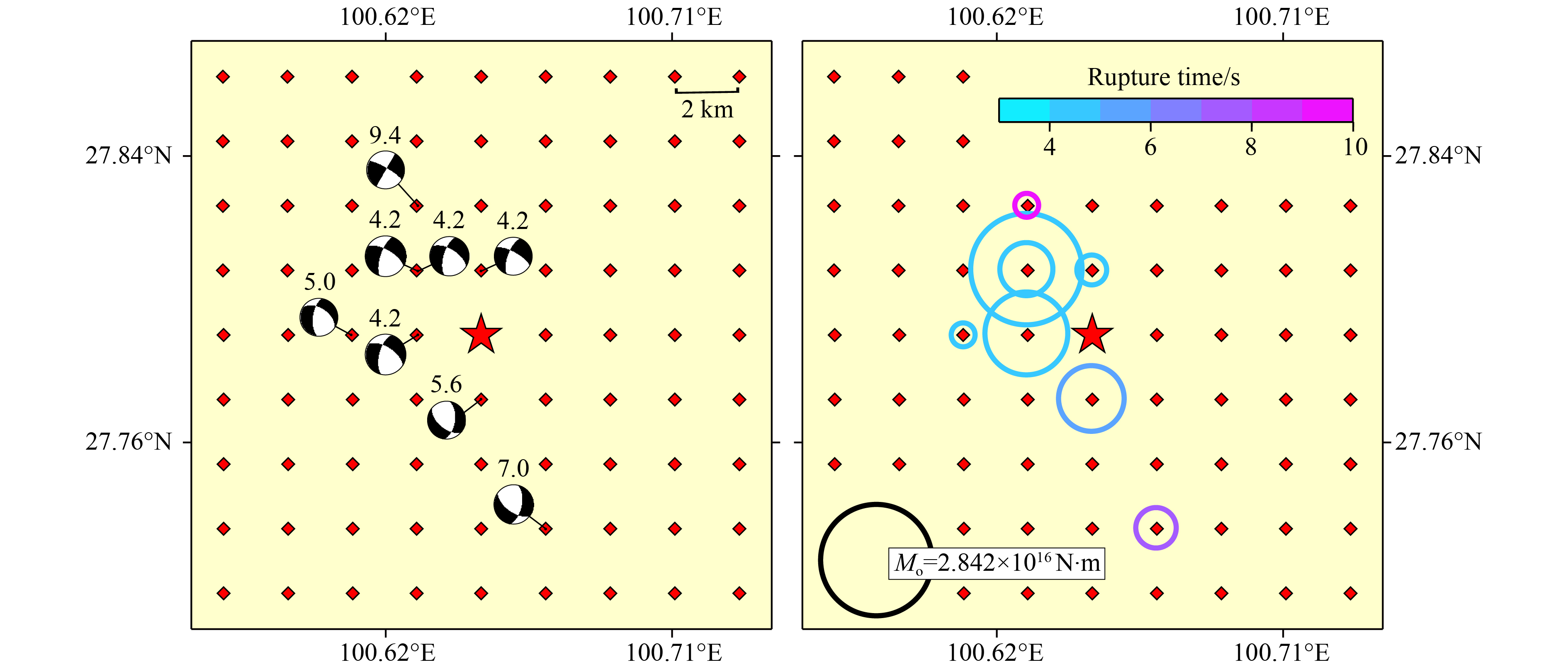

表 4
偏矩张量解分解结果
Table 4.
Results of deviatoric MT decomposition
Sub-event Nodal Plane-I
Strike/Dip/Rake (°)Nodal Plane-II
Strike/Dip/Rake (°)M0(%) M0(N·m) MW Mmajor 306/59/-143 194/59/-37 74.7 7.154 × 1016 5.2 Mminor 124/61/-147 16/61/-33 25.3 2.423 × 1016 4.9
下载: 导出CSV
表 5
余震矩张量反演结果
Table 5.
Moment tensor inversion results of the aftershocks
MS MW Centroid
Depth(km)VR
(%)DC
(%)CLVD
(%)Strike/Dip/Rake(°) P-axis
Azimuth/Plunge(°)T-axis
Azimuth/Plunge(°)4.4 4.3 4 62 97.6 -2.4 325/41/-103
161/50/-79124/81 244/5 4.6 4.6 4 77 92.2 -7.8 270/89/-175
180/85/-1135/4 45/3 4.2 4.4 4 65 85.8 -14.2 92/81/177
183/87/9317/4 48/9 4.3 4.4 5 73 85.9 -14.1 92/80/-179
2/89/-10316/8 47/6
下载: 导出CSV
表 6
震源机制解节面的失稳参数
Table 6.
Instability parameters of the nodal plane in the focal mechanism solution
Date MS Nodal Plane-I
Strike/Dip/Rake (°)I Nodal Plane-II
Strike/Dip/Rake (°)I 2022-01-02 Mmajor：MW 5.2 306/59/-143 0.9820 194/59/-37 0.3648 Mminor：MW 4.9 124/61/-147 0.7475 16/61/-33 0.7521 2022-01-05 4.4 325/41/-103 0.9691 161/50/-79 0.5567 2022-04-16 4.6 180/85/-1 0.8332 270/89/-175 0.7001 2022-04-17 4.2 183/87/9 0.8120 92/81/177 0.6505 2022-04-30 4.3 2/89/-10 0.8518 92/80/-179 0.6441 2012-06-24 5.7 302/55/-141 0.9896 189/59/-40 0.4355 注：粗体数字表示区域应力场触发的发震断裂产状和对应的失稳参数值.
下载: 导出CSV
-
