Microseismic source mechanism inversion and interpretation for the injection test of hot dry rock in the Gonghe Basin
-
摘要:
震源机制是开展微地震资料解释的重要震源物理参数，对储层压裂开发的裂缝监测及其发育解释具有重要的实际意义. 本文首先对共和盆地干热岩储层的地质背景和测试压裂阶段的微地震数据进行了介绍，然后阐述了基于HybridMT程序包的震源机制反演方法和基于主成分分析方法的优化求解思路，最后精细反演和解释了37个微地震事件(MW 0.80 ~ 1.69)的震源机制. 震源机制类型以逆断层和走滑断层为主，双力偶分量占比较高表明裂缝以剪切破裂机制为主导，表明微地震活动多发生在先存的天然断层/裂缝上. P轴的优势方位和断层走向分别为近NE向和NE向及NW向，推测该深度的局部最大水平主应力方向与区域最大水平主应力方向基本一致. 复杂的震源机制特征还与注水压力、局部地应力和地层高温等因素相关. 本文首次尝试对共和盆地干热岩开采诱发微地震的震源机制开展深入研究，验证了微地震处理和裂缝解释的有效性，可为后续深部干热岩储层的裂缝监测和解释提供参考.
Abstract:The source mechanism is an important source physical parameter for interpretating microseismic data and has significant practical values for reservoir microseismic monitoring and fracture propagation characterization. In this study, we introduced the geological background of the hot dry rock (HDR) reservoir in the Gonghe Basin and the microseismic data associated with the injection test, and then explained the source mechanism inversion method based on HybridMT package and the optimization approach based on the principal component analysis. Finally, the source mechanisms of 37 microseismic events (MW 0.80 ~ 1.69) were obtained and interpreted, which are predominantly characterized by thrust faults and strike-slip faults. The high proportion of double-couple (DC) components suggests that the fractures are dominated by the shear rupture mechanism, indicating that microseismic activity mostly occurred on pre-existing natural faults/fractures. The dominant strike of the P axes and the faults/fractures are orientated at approximately NE and NE/NW directions, respectively, suggesting that the direction of the local maximum horizontal principal stress at the depth is basically consistent with that of the regional maximum horizontal principal stress. The complex source mechanisms are also related to factors such as water injection pressure, local in-situ stress, and high temperature in the formation. We attempted to carry out in-depth research on the source mechanism analysis of microseismic events associated with HDR stimulation in the Gonghe Basin for the first time, verifying the effectiveness of microseismic processing and fracture interpretation. This study can provide a reference for future microseismic monitoring and fracture interpretation of deep HDR reservoirs.
-
Key words:
- Gonghe Basin /
- Hot dry rock /
- Microseismic /
- Source mechanism /
- HybridMT
-
-
图 1

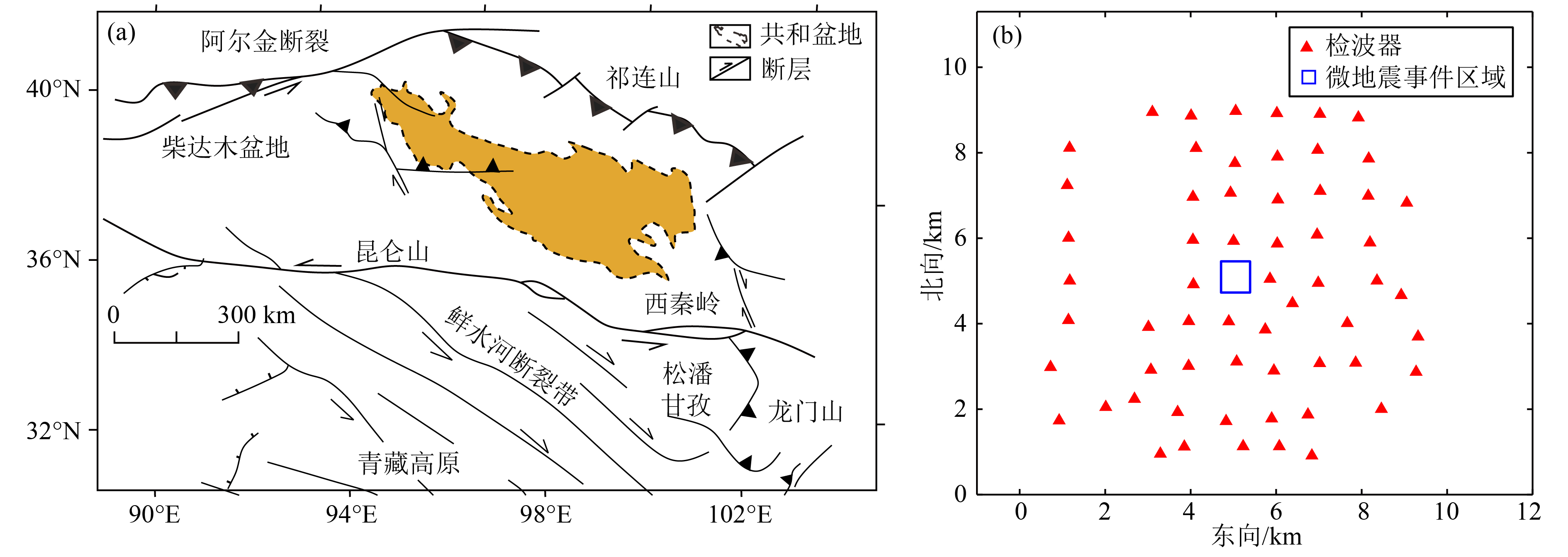

共和盆地周围主要地质构造图(a)及研究区地面监测台阵(b)
Figure 1.
The tectonic background around the Gonghe Basin (a) and surface seismic monitoring array on the project site (b)
图 2

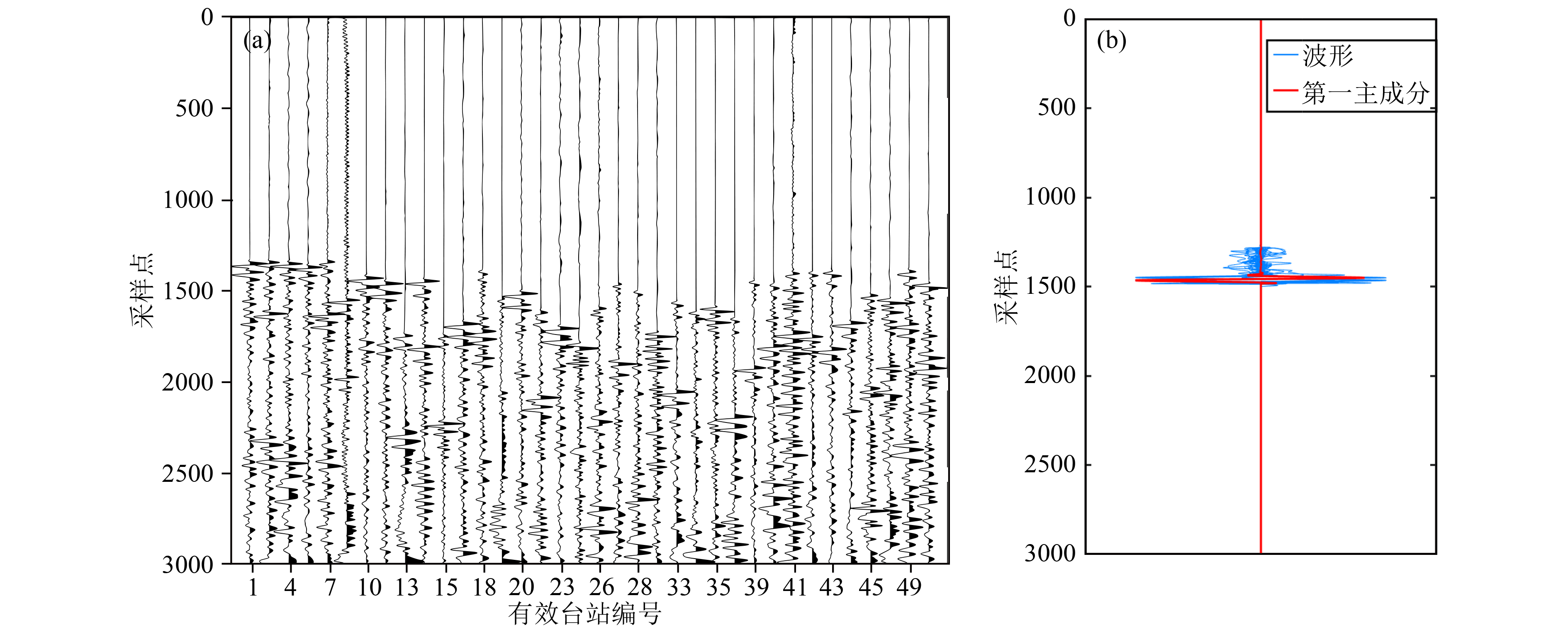

微地震事件的垂直分量波形(a)及主成分分析结果(b)
Figure 2.
Sample vertical-component waveforms of a microseismic event (a) and the results of PCA (b)
图 3
JF法和PCA法的DC矩张量约束(a)和全矩张量约束(b)RMS对比直方图
Figure 3.
Histograms of RMS of (a) DC-constrained moment tensor and (b) full-constrained moment tensor using JF method and PCA method
图 4

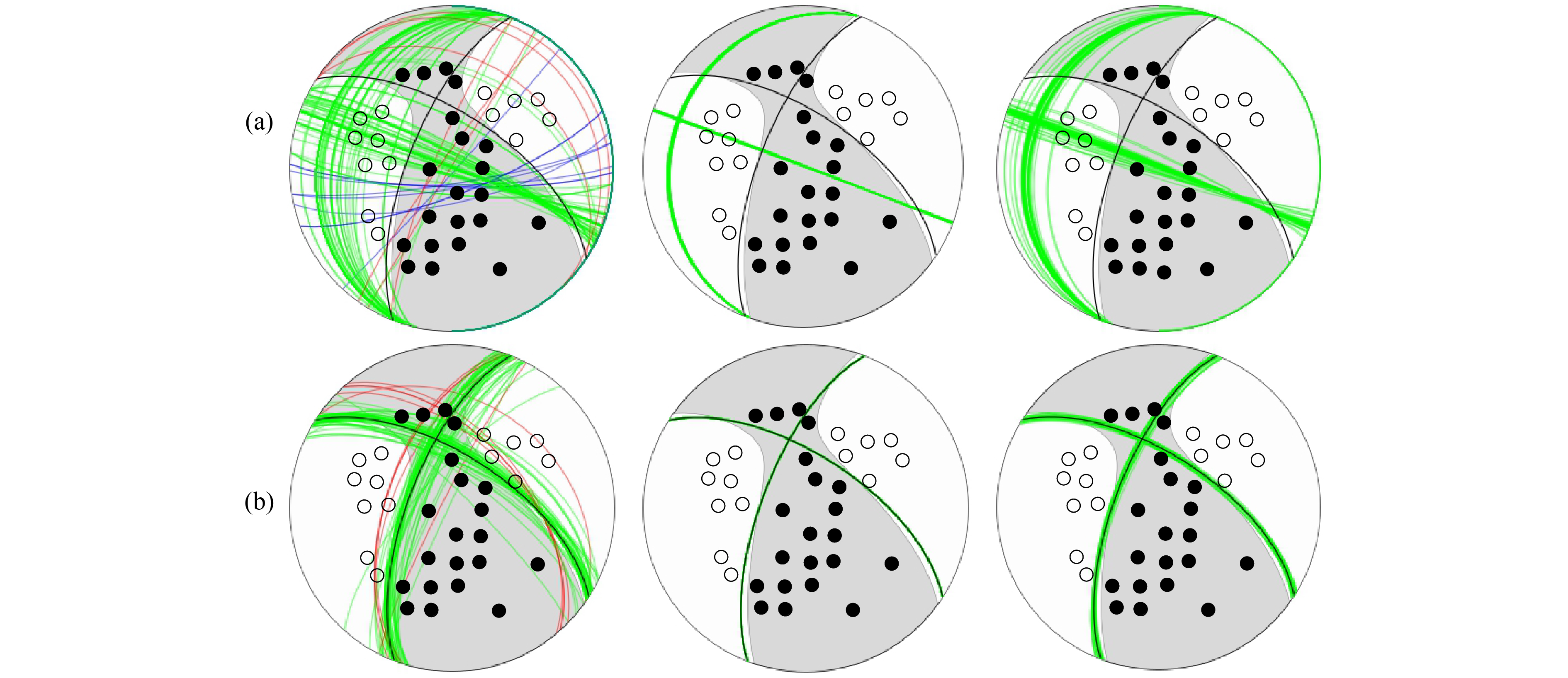

全矩张量约束条件下重采样测试结果
Figure 4.
Resampling test results with full-constrained inversion
图 5

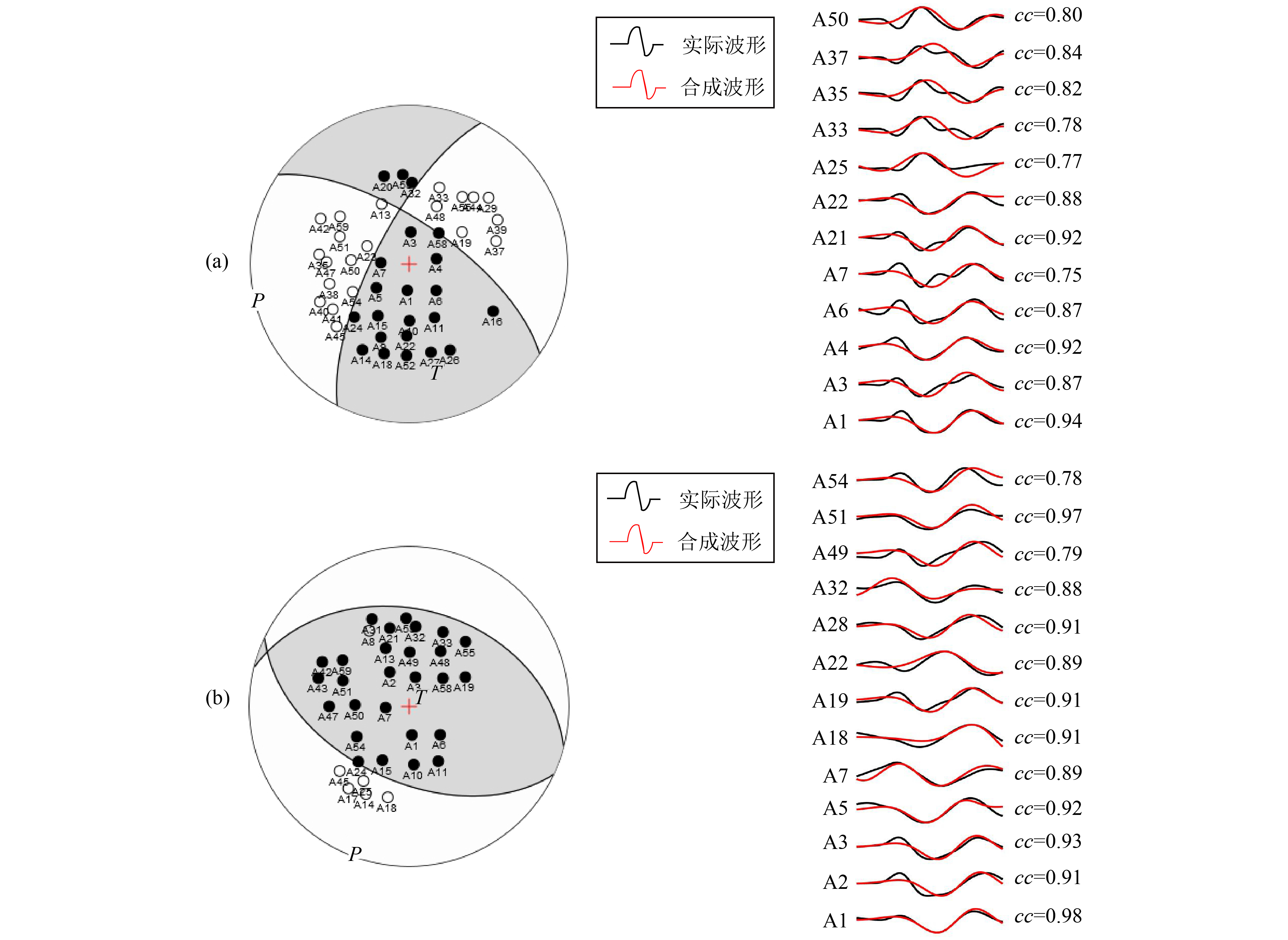

微地震震源机制沙滩球及部分合成波形和实际波形拟合结果
Figure 5.
Fitting results of synthetic and observed microseismic waveforms
图 6

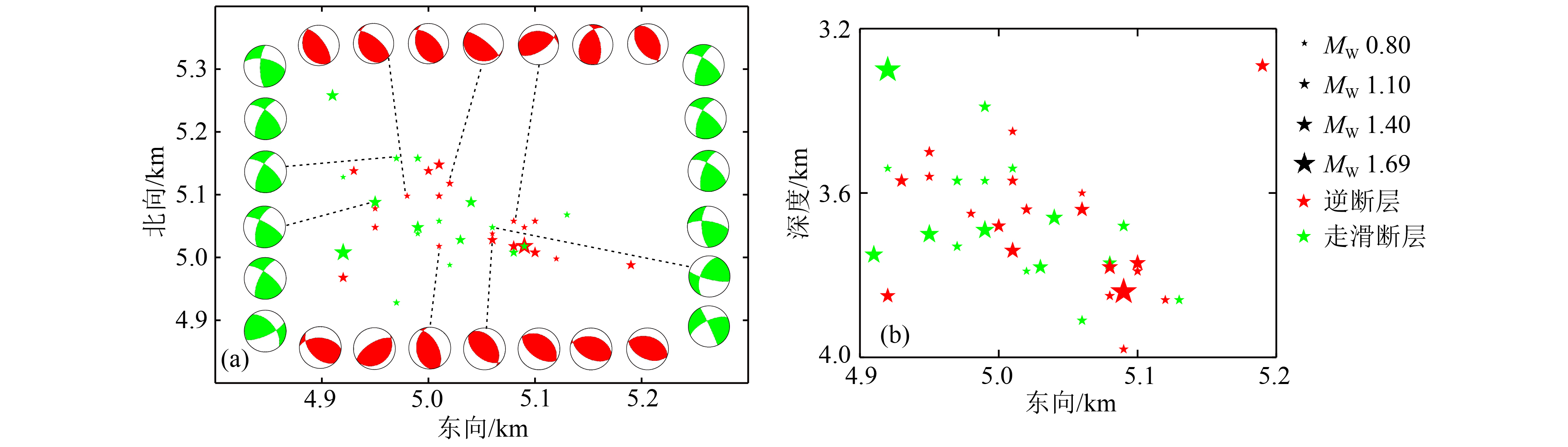

微地震事件平面分布和部分震源机制沙滩球(a)及微地震事件深度分布图(b)
Figure 6.
The plane distribution of microseismic events and the beachballs of partial events (a) and the depth distribution of microseismic events (b)
图 7
JF法(a)和PCA法(b)对应震源机制分解ISO/CLVD/DC百分比图
Figure 7.
The percentages of the ISO, CLVD, and DC components by using JF (a) and PCA (b)
图 8
37个微地震事件Hudson图(a)及26个RMS<0.5的微地震事件Hudson图(b)
Figure 8.
Source-type plot of 37 microseismic events (a) and source-type plot of 26 microseismic events with RMS<0.5 (b)
-
