Shallow 3-D velocity structure and its implications for seismogenic structure in the Xunwu (Jiangxi) region and its adjacent areas
-
摘要:
寻乌地区位于邵武—河源断裂带中段, 发生过多次破坏性地震, 其中包括1806年M6地震以及1941年M~5.75地震和1987年M~5.5地震群, 是邵武—河源断裂带地震活跃的区域之一, 也是江西省防震减灾重点关注区域之一.获取该地区的浅层速度结构有助于提高地震定位以及震动图计算的精度.然而, 该地区固定台网稀疏, 加之研究区NW以及NE向断层交错发育, 增加了地震构造环境研究的难度.本文基于寻乌地区布设的密集台阵, 获得了持续一个多月的连续波形数据, 计算了台站对噪声互相关, 并提取了瑞利面波相速度(0.5~6 s)信息, 进而采用面波层析成像方法反演了寻乌以及邻区的地壳浅部6 km速度结构.相速度以及S波速度反演结果均很好地展示了断层的浅部空间特征、断陷盆地以及岩体的分布.约3 km深的浅层低速带揭示了会昌和寻乌等断陷盆地的分布, 也与邵武—河源断裂带在周田附近"S"型急转弯有很好的对应关系, 进一步说明区域断裂带对盆地发育的控制作用.区域典型地震集中在高低速结构过渡区, S波速度高低速变化显示了NW走向断层在深度上的空间展布情况, 推测NW向断裂主导了研究区域的地震.
Abstract:Situated within the Shaowu-Heyuan fault zone, the Xunwu area has experienced several moderate earthquakes, notably the M6 earthquake in 1806, the M~5.75 earthquake in 1941, and a swarm of M~5.5 earthquakes in 1987. It is one of the seismically active regions along the Shaowu-Heyuan fault zone, and also one of the key areas for earthquake prevention and mitigation in Jiangxi province. The shallow subsurface velocity structures in this area help improve the accuracy of earthquake location and seismogram calculation. However, the sparse seismic network in the region, coupled with the complex development of NW and NE-trending faults, has posed significant challenges to studying the seismogenic environment. In this study, based on continuous waveforms observed by a dense array across Xunwu and its neighboring areas, we computed noise cross-correlation between station pairs and extracted Rayleigh wave (0.5~6 s).The surface wave tomography method was applied to invert the velocity structure up to 6 km depth of the study area. Both phase velocity and S-wave velocity reveal the shallow spatial characteristics of faults, graben basins, and lithological structure. The shallow low-velocity zone approximately 3 km deep reveals the distribution of graben basins such as Huichang and Xunwu and exhibits a strong correspondence with the 'S'-shaped sharp turn of the Shaowu-Heyuan fault zone near Zhoutian, which highlights the influence of regional fault zones on the evolution of the basin. Earthquakes in the region predominantly occur in the transition zone between high and low-velocity structures. Variations of S-wave velocity demonstrate the spatial distribution of NW-trending faults, suggesting that NW-oriented faults are the primary contributors to the seismicity in the study area.
-
-

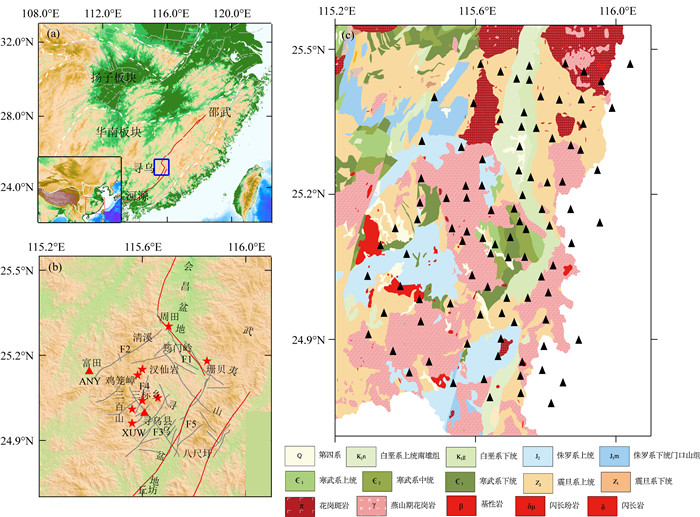

图 1
研究区域地质构造以及密集台阵分布
Figure 1.
Studies the regional geological structure and dense array part of the map

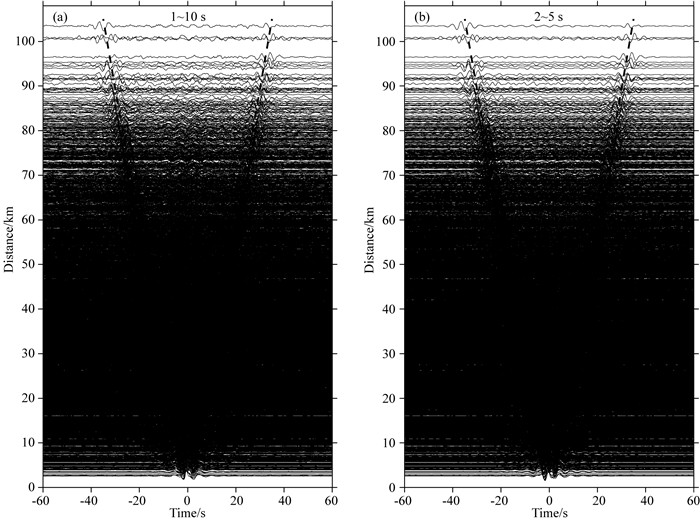

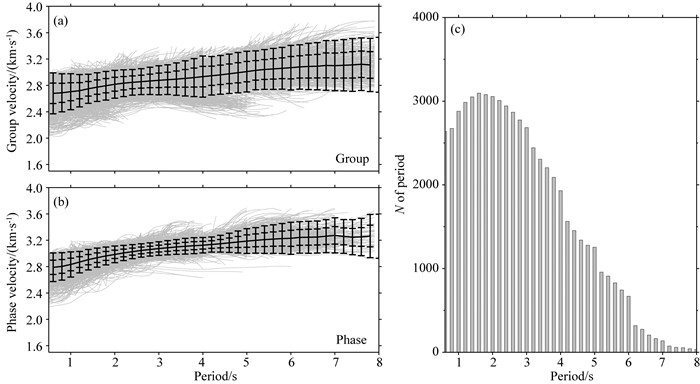

图 3
(a) 面波群速度观测数据；(b) 面波相速度观测数据, 黑色横线代表 2倍标准差; (c) 不同周期频散曲线数目
Figure 3.
Observed group velocity (a) and phase velocity (b) data; the black horizontal line represents 2 times the standard deviation; (c) the number of dispersion curves of different periods

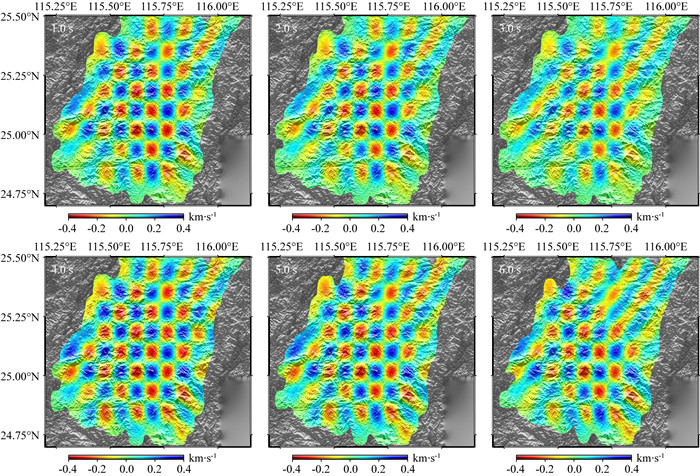

图 4
周期在1.0~6.0 s，网格大小为0.04°×0.04°的相速度的检测板分辨率恢复测试
Figure 4.
Checker board resolution tests on a 0.04°×0.04° grid for phase velocity of 1.0~6.0 s periods

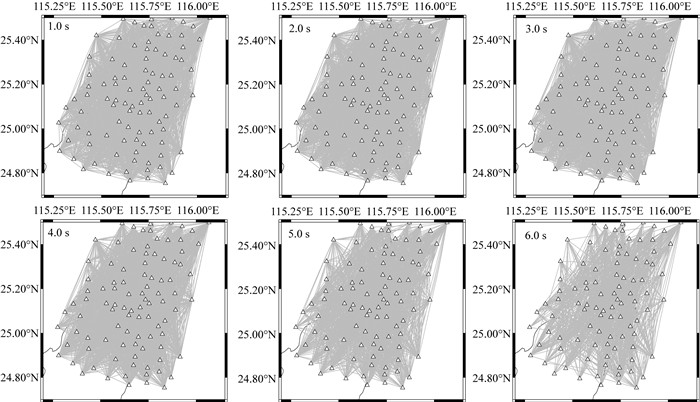

图 5
不同周期(1.0 s；2.0 s；3.0 s；4.0 s；5.0 s；6.0 s)射线路径覆盖图, 灰线为射线路径，白色三角为台站
Figure 5.
Ray-path coverage for different periods: 1.0 s, 2.0 s, 3.0 s, 4.0 s, 5.0 s, 6.0 s. The grey lines represent the ray-path, and the white triangles represent the stations

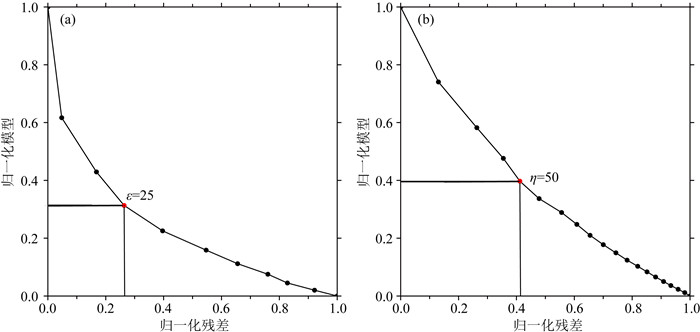

图 6
(a) 阻尼参数选取时的L曲线；(b) 平滑因子选取时的L曲线(其中红色圆点代表选取的最合适参数)
Figure 6.
L-curve of damping parameter (a) and smoothing factor (b)(the red dots represent the most appropriate parameters selected)

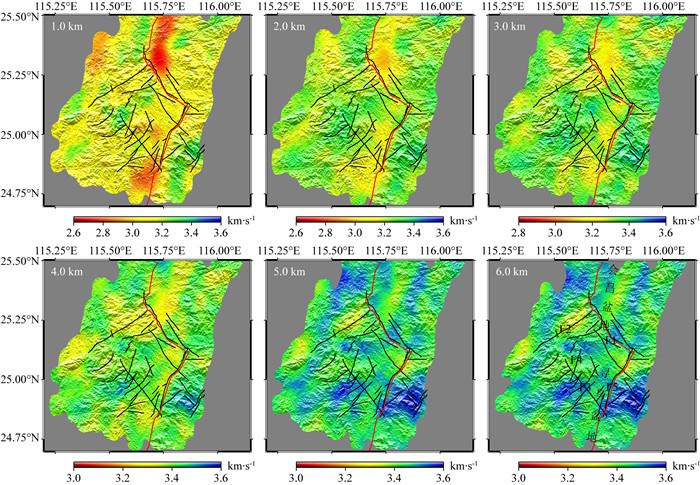

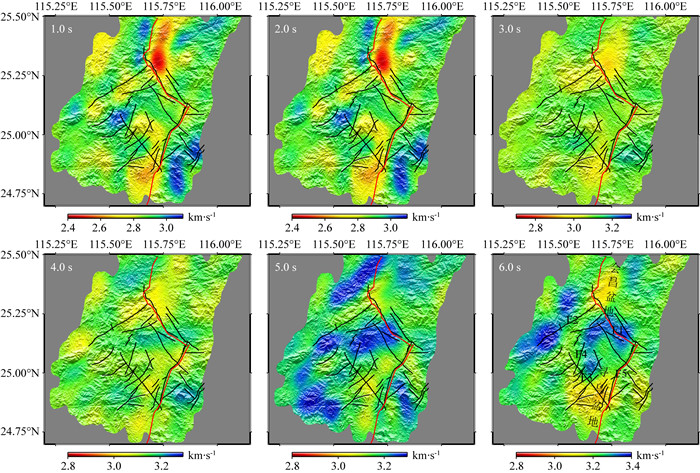

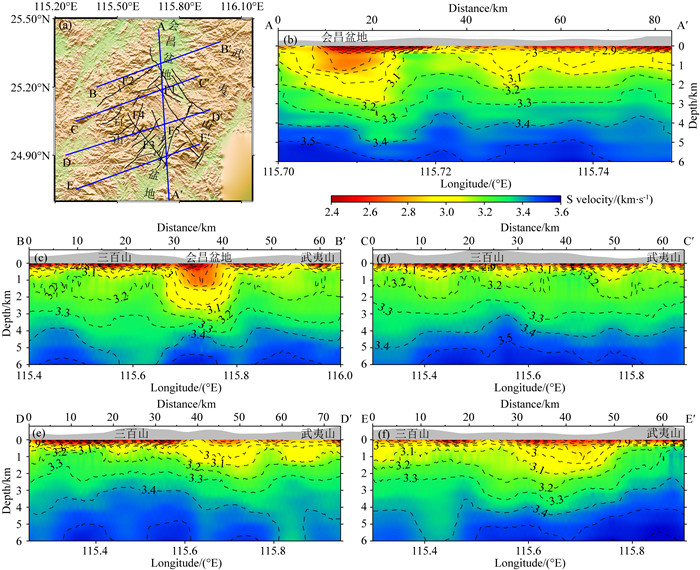

图 9
(a) 寻乌及邻区地形和剖面位置(蓝线); (b)—(f) 分别为AA′-EE′剖面的S波速度结构
Figure 9.
The topography and profile position (blue line) of Xunwu and adjacent areas (a), and the S-wave velocity structure of AA′-EE′ profiles (b—f), respectively

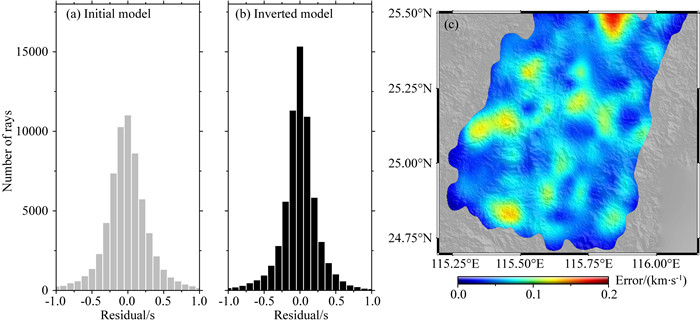

图 10
(a) 相速度成像前的走时残差分布；(b) 相速度成像后的走时残差分布; (c) S波速度反演之后的数据拟合误差
Figure 10.
Frequency histograms showing fit to observed traveling data of (a) initial model, (b) inverted model; (c) Misfit errors of S-wave velocity inversion

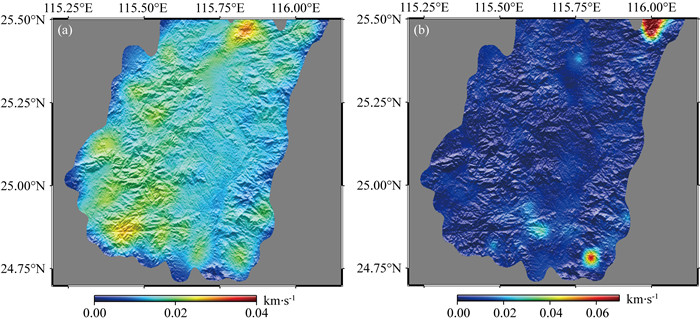

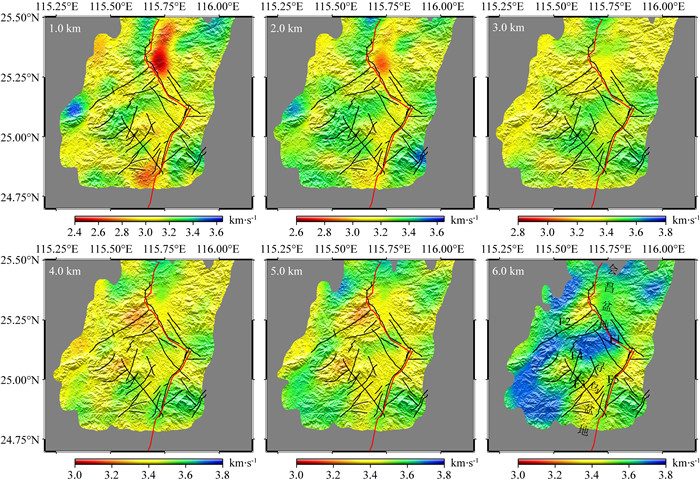

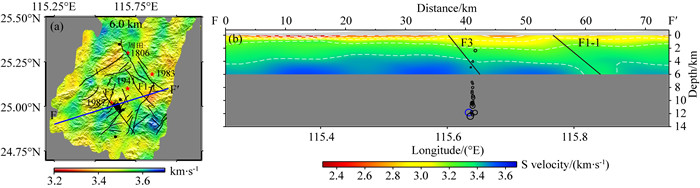

图 13
(a) 寻乌及邻近区域6 km的主要地震分布，包括1806年会昌M6.0地震(红色五角)、1983年寻乌M4.5地震(红色五角)、1941年寻乌北M~5.75地震(红色五角)以及1987年M~5.5群震(红色五角和黑色圆点)和剖面位置(蓝线); (b) FF′剖面的S波速度结构以及断层位置，F3：鸡笼嶂—寻乌—八尺圩断层；F1-1：黄岗—笔架山断层
Figure 13.
(a) The primary seismic distribution, including the Huichang M6.0 earthquake in 1806(red pentagon), Xunwu M4.5 earthquake in 1983 (red pentagon), Xunwu North M~5.75 earthquake in 1941 (red pentagon), a swarm of M~5.5 earthquakes in 1987 (red pentagon and black dot) and profile position (blue line) of Xunwu and adjacent areas 6 km; (b) The S-wave velocity structure of FF′ profiles and fault location. F3: Jilongzhang—Xunwu—Bachixu fault; F1-1: Huanggang—Bijiashan fault
-
Bensen G D, Ritzwoller M H, Barmin M P, et al. 2007. Processing seismic ambient noise data to obtain reliable broad-band surface wave dispersion measurements. Geophysical Journal International, 169(3): 1239-1260. doi: 10.1111/j.1365-246X.2007.03374.x
Bensen G D, Ritzwoller M H, Shapiro N M. 2008. Broadband ambient noise surface wave tomography across the United States. Journal of Geophysical Research: Solid Earth, 113(B5): B05306, doi: 10.1029/2007JB005248.
Chen X X, Zhang X, Ke L S, et al. 1990. Observation of near field strong ground motion and seismic source feature analysis for the earthquake swarm of Xunwu, Jiangxi province of Aug. 2, 1987. Acta Seismologica Sinica (in Chinese), 12(3): 223-234.
Deng H, Dong F F, Xie B. 2021. Textual research and causative structure of the northern Xunwu earthquake in Jiangxi province on September 21, 1941. Earthquake (in Chinese), 41(3): 104-113.
Dong S W, Li T D, Chen X H, et al. 2014. SinoProbe revealed crustal structures, deep processes, and metallogenic background within China continent. Earth Science Frontiers (in Chinese), 21(3): 201-225.
Fang H J, Yao H J, Zhang H J, et al. 2015. Direct inversion of surface wave dispersion for three-dimensional shallow crustal structure based on ray tracing: methodology and application. Geophysical Journal International, 201(3): 1251-1263. doi: 10.1093/gji/ggv080
Gao R, Xiao X C, Gao H, et al. 2002. Summary of deep seismic probing of the lithospheric structure across the West Kunlun-Tarim-Tianshan. Geological Bulletin of China (in Chinese), 21(1): 11-18.
Gao R, Lu Z W, Klemperer S L, et al. 2016. Crustal-scale duplexing beneath the Yarlung Zangbo suture in the western Himalaya. Nat. Geosci. , 9(7): 555-560. doi: 10.1038/ngeo2730
Gu N, Wang K D, Gao J, et al. 2019. Shallow crustal structure of the Tanlu Fault Zone near Chao Lake in eastern China by direct surface wave tomography from local dense array ambient noise analysis. Pure and Applied Geophysics, 176(3): 1193-1206. doi: 10.1007/s00024-018-2041-4
Han S C, Zhang H J, Xin H L, et al. 2022. USTClitho2.0: Updated unified seismic tomography models for continental China lithosphere from joint inversion of body-wave arrival times and surface-wave dispersion data. Seismological Research Letters, 93(1): 201-215. doi: 10.1785/0220210122
He Z X. 1989. The preliminary study of the seismogeological characteristics in the earthquake area of Xunwu, Jiangxi province. South China Seismological Journal (in Chinese), 9(2): 14-21.
Hou J, Xu T, Lü Q T, et al. 2022. The fine upper crustal structure below the Qin-Hang and Wuyishan metallogenic belts revealed by double beamforming ambient noise tomography. Chinese J. Geophys. (in Chinese), 65(10): 3881-3899, doi: 10.6038/cjg2022Q0152.
Huang S Y, Yao H J, Lu Z W, et al. 2020. High-resolution 3-D shear wave velocity model of the Tibetan Plateau: Implications for crustal deformation and porphyry Cu deposit formation. Journal of Geophysical Research: Solid Earth, 125(7): e2019JB019215, doi: 10.1029/2019JB019215.
Lee W H K, Wu F T, Jacobsen C. 1976. A catalog of historical earthquakes in China compiled from recent Chinese publications. Bulletin of the Seismological Society of America, 66(6): 2003-2016. doi: 10.1785/BSSA0660062003
Lei T C, Wang Y D, Ou B S. 1991. Surface rupture pattern by Xunwu earthquake of magnitude 5.5 on August 2, 1987. Seismology and Geology (in Chinese), 13(4): 353-360.
Li C, Yao H J, Yang Y, et al. 2020.3-D shear wave velocity structure in the shallow crust of the Tan-Lu fault zone in Lujiang, Anhui, and adjacent areas, and its tectonic implications. Earth Planet. Phys., 4(3): 317-328, doi: 10.26464/epp2020026.
Li H Y, Su W, Wang C Y, et al. 2009. Ambient noise Rayleigh wave tomography in western Sichuan and eastern Tibet. Earth and Planetary Science Letters, 282(1-4): 201-211. doi: 10.1016/j.epsl.2009.03.021
Li H Y, Su W, Wang C Y, et al. 2010. Ambient noise Love wave tomography in the eastern margin of the Tibetan plateau. Tectonophysics, 491(1-4): 194-204.
Li L L, Huang X L, Yao H J, et al. 2020. Shallow shear wave velocity structure from ambient noise tomography in Hefei city and its implication for urban sedimentary envoiroment. Chinese J. Geophys. (in Chinese), 63(9): 3307-3323, doi: 10.6038/cjg2020O0097.
Li X L, Li Z W, Xia X, et al. 2023. Crustal structure and tectonic boundary characteristics in South China: Constraints from joint tomography of ambient noise and gravity. Chin Sci Bul (in Chinese), doi: 10.1360/TB-2023-0417.
Li Z W, Ni S D, Zhang B L, et al. 2016. Shallow magma chamber under the Wudalianchi Volcanic Field unveiled by seismic imaging with dense array. Geophysical Research Letters, 43(10): 4954-4961.
Liu D R. 1997. Segmentation of the Shaowu-Heyuan fault zone and their activity assessment. Journal of Geomechanics (in Chinese), 3(2): 54-60.
Liu J, Yuan Z D, Xu Y R, et al. 2021. Paleoseismic investigation of the recurrence behavior of large earthquakes on active faults. Earth Science Frontiers (in Chinese), 28(2): 211-231.
Luo S, Yao H J, Li Q S, et al. 2019. High-resolution 3D crustal S-wave velocity structure of the Middle-Lower Yangtze River Metallogenic Belt and implications for its deep geodynamic setting. Science China Earth Sciences, 62(9): 1361-1378.
Lü J, Xie Z J, Zheng Y, et al. 2016. Rayleigh wave phase velocities of South China block and its adjacent areas. Science China Earth Sciences, 59(11): 2165-2178.
Ma J W, Huang J Q, Fu Y Y. 2022. Phase velocity tomography of Rayleigh and Love waves in the suture zone between the Yangtze and Cathaysia Blocks. Chinese J. Geophys. (in Chinese), 65(4): 1255-1270, doi: 10.6038/cjg2022P0217.
Ojo A O, Ni S D, Xie J, et al. 2019. Further constraints on the shear wave velocity structure of Cameroon from joint inversion of receiver function, Rayleigh wave dispersion and ellipticity measurements. Geophysical Journal International, 217(1): 589-619.
Qiao L, Yao H J, Lai Y C, et al. 2018. Crustal structure of Southwest China and Northern Vietnam from ambient noise tomography: Implication for the large-scale material transport model in SE Tibet. Tectonics, 37(5): 1492-1506.
Rawlinson N, Sambridge M. 2005. The fast marching method: an effective tool for tomographic imaging and tracking multiple phases in complex layered media. Exploration Geophysics, 36(4): 341-350.
Sambridge M. 1999. Geophysical inversion with a neighbourhood algorithm—I. Searching a parameter space. Geophysical Journal International, 138(2): 479-494.
Shan B, Xiong X, Zhao K F, et al. 2017. Crustal and upper-mantle structure of South China from Rayleigh wave tomography. Geophysical Journal International, 208(3): 1643-1654.
Shapiro N M, Campillo M, Stehly L, et al. 2005. High-resolution surface-wave tomography from ambient seismic noise. Science, 307(5715): 1615-1618.
Tang L R, Zeng X F, Luo L, et al. 2020. Characteristics of focal mechanisms and apparent stress in Xunwu and its adjacent area. Journal of Geodesy and Geodynamics (in Chinese), 40(8): 778-782, 789.
Teng L, Wang X T, Fu C L, et al. 2023. 3D S-wave velocity structure of the Ningdu basin in Jiangxi province inferred from ambient noise tomography with dense array. Earthquake Research Advances, 3(1): 100176, doi: 10.1016/j.eqrea.2022.100176.
Wang G J, Hu X P, Gao W, et al. 2018. Analysis of the confidence interval of the composite fault plane solution obtained from the grid search method: an example of southern Jiangxi province. Seismology and Geology (in Chinese), 40(6): 1305-1317.
Wang J J, Yao H J, Wang W T, et al. 2018. Study of the near-surface velocity structure of the Hutubi gas storage area in Xinjiang from ambient noise tomography. Chinese J. Geophys. (in Chinese), 61(11): 4436-4447, doi: 10.6038/cjg2018M0025.
Wang S, Sun X L, Qin J L, et al. 2018. Fine fault structure of Xinfengjiang water reservoir area from high-frequency ambient noise tomography. Chinese J. Geophys. (in Chinese), 61(2): 593-603, doi: 10.6038/cjg2018L0434.
Wang W T, Ni S D, Wang B S. 2012. Studies on a persistent localized microseism source that produces precursors on noise correlation function observed using stations in central-eastern China. Chinese J. Geophys. (in Chinese), 55(2): 503-512, doi: 10.3969/j.issn.0001-5733.2012.02.013.
Wang X T, Li Z W, Deng J Z, et al. 2021. Hypocentral depth determination for moderate-magnitude shallow earthquakes in sedimentary basins with sparse network——case studies of the 2013 Qainguo MS5.8 and the 2016 Fairview MW5.1 earthquake sequences. Chinese J. Geophys. (in Chinese), 64(3): 851-863, doi: 10.6038/cjg2021O0239.
Xia X, Li Z W, Bao F, et al. 2021. Sedimentary structure of the Sichuan Basin derived from seismic ambient noise tomography. Geophysical Journal International, 225(1): 54-67.
Xiao G R, Yao Q, Fan A C. 2013. Research on sequence stratigraphy of late Cretaceous in Jiangxi Province. Resources Survey & Environment (in Chinese), 34(3): 141-149.
Xie T T, Xu T, Ai Y S, et al. 2021. Imaging the shallow crustal velocity structure of the Qingchengzi ore field on the Liaodong Peninsula, China, with a short-period dense array using ambient noise tomography. Tectonophysics, 813: 228913.
Yang H F, Duan Y H, Song J H, et al. 2020. Fine structure of the Chenghai fault zone, Yunnan, China, constrained from teleseismic travel time and ambient noise tomography. Journal of Geophysical Research: Solid Earth, 125(7): e2020JB019565, doi: 10.1029/2020JB019565.
Yang Y, Lei J S, Zhang G W, et al. 2019. Crustal velocity structure and seismogenic environment in the source areas of the Qianguo MS5.8 and Songyuan MS5.7 earthquakes. Chinese J. Geophys. (in Chinese), 62(11): 4259-4278, doi: 10.6038/cjg2019M0652.
Yang Y J, Ritzwoller M H, Lin F C, et al. 2008. Structure of the crust and uppermost mantle beneath the western United States revealed by ambient noise and earthquake tomography. Journal of Geophysical Research: Solid Earth, 113(B12): B12310, doi: 10.1029/2008JB005833.
Yao H J, Van Der Hilst R D, De Hoop M V. 2006. Surface-wave array tomography in SE Tibet from ambient seismic noise and two-station analysis—Ⅰ. Phase velocity maps. Geophysical Journal International, 166(2): 732-744.
Yao H J, Beghein C, Van Der Hilst R D. 2008. Surface wave array tomography in SE Tibet from ambient seismic noise and two-station analysis—Ⅱ. Crustal and upper-mantle structure. Geophysical Journal International, 173(1): 205-219.
Yao H J, Van Der Hilst R D, Montagner J P. 2010. Heterogeneity and anisotropy of the lithosphere of SE Tibet from surface wave array tomography. Journal of Geophysical Research: Solid Earth, 115(B12): B12307, doi: 10.1029/2009JB007142.
Yu G P, Xu T, Ai Y S, et al. 2020. Significance of crustal extension and magmatism to gold deposits beneath Jiaodong Peninsula, eastern North China Craton: Seismic evidence from receiver function imaging with a dense array. Tectonophysics, 789: 228532, doi: 10.1016/j.tecto.2020.228532.
Yuan Y, Yao H J, Qin Y. 2016. Joint inversion of Rayleigh wave vertical-horizontal amplitude ratios and dispersion based on the Neighborhood Algorithm and its application. Chinese J. Geophys. (in Chinese), 59(3): 959-971, doi: 10.6038/cjg20160318.
Zhao J, Mooney W D, Zhang X K, et al. 2006. Crustal structure across the Altyn Tagh Range at the northern margin of the Tibetan plateau and tectonic implications. Earth and Planetary Science Letters, 241(3-4): 804-814.
Zhao Y, Li J L, Xu J, et al. 2023. High-resolution velocity structure and seismogenic potential of strong earthquakes in the Bamei-Kangding segment of the Xianshuihe fault zone. Science China Earth Sciences, 66(9): 1960-1978.
Zheng Y, Shen W S, Zhou L Q, et al. 2011. Crust and uppermost mantle beneath the North China Craton, northeastern China, and the Sea of Japan from ambient noise tomography. Journal of Geophysical Research, 116(B12): B12312, doi: 10.1029/2011JB008637.
陈祥熊, 张弦, 柯龙生等. 1990. 1987年8月2日江西寻乌震群的近场强地面运动观测及其震源特征分析. 地震学报, 12(3): 223-234.
邓辉, 董非非, 谢斌. 2021. 1941年9月21日江西寻乌北地震考证及发震构造探讨. 地震, 41(3): 104-113.
董树文, 李廷栋, 陈宣华等. 2014. 深部探测揭示中国地壳结构、深部过程与成矿作用背景. 地学前缘, 21(3): 201-225.
何昭星. 1989. 江西寻乌震区地震地质特征初步研究. 华南地震, 9(2): 14-21.
侯爵, 徐涛, 吕庆田等. 2022. 双聚束噪声成像揭示钦杭与武夷山成矿带上地壳精细结构. 地球物理学报, 65(10): 3881-3899, doi: 10.6038/cjg2022Q0152.
雷土成, 王耀东, 欧秉松. 1991. 1987年8月2日寻乌地震的破裂方式. 地震地质, 13(4): 353-360.
李玲利, 黄显良, 姚华建等. 2020. 合肥市地壳浅部三维速度结构及城市沉积环境初探. 地球物理学报, 63(9): 3307-3323, doi: 10.6038/cjg2020O0097.
李雪垒, 李志伟, 夏鑫等. 2023. 华南地壳结构与构造边界特征: 来自地震背景噪声和重力联合成像模型的约束. 科学通报, 68(24): 3221-3236.
刘大任. 1997. 邵武—河源断裂带活动性及分段评价. 地质力学学报, 3(2): 54-60.
马军伟, 黄景秋, 付媛媛. 2022. 扬子与华夏块体缝合带区域的Rayleigh及Love波相速度层析成像. 地球物理学报, 65(4): 1255-1270, doi: 10.6038/cjg2022P0217.
汤兰荣, 曾新福, 罗丽等. 2020. 寻乌及邻区震源机制和视应力特征. 大地测量与地球动力学, 40(8): 778-782, 789.
王甘娇, 胡幸平, 高威等. 2018. 格点尝试法计算综合断层面解的置信区间分析——以赣南地区为例. 地震地质, 40(6): 1305-1317.
王娟娟, 姚华建, 王伟涛等. 2018. 基于背景噪声成像方法的新疆呼图壁储气库地区近地表速度结构研究. 地球物理学报, 61(11): 4436-4447, doi: 10.6038/cjg2018M0025.
王爽, 孙新蕾, 秦加岭等. 2018. 利用密集地震台网高频环境噪声研究广东新丰江库区浅层地下结构. 地球物理学报, 61(2): 593-603, doi: 10.6038/cjg2018L0434.
王伟涛, 倪四道, 王宝善. 2012. 中国中东部地震台站噪声互相关函数中面波前驱信号的分析研究. 地球物理学报, 55(2): 503-512, doi: 10.3969/j.issn.0001-5733.2012.02.013.
肖光荣, 姚琪, 范爱春. 2013. 江西省晚白垩世层序地层研究. 资源调查与环境, 34(3): 141-149.
杨宇, 雷建设, 张广伟等. 2019. 前郭MS5.8和松原MS5.7地震震源区地壳速度结构与孕震环境. 地球物理学报, 62(11): 4259-4278, doi: 10.6038/cjg2019M0652.
袁艺, 姚华建, 秦岩. 2016. 基于邻域算法的瑞利面波垂直-水平振幅比及频散曲线联合反演及应用. 地球物理学报, 59(3): 959-971, doi: 10.6038/cjg20160318.
-
