摘要:
大别—苏鲁造山带是我国东部重要的碰撞造山带，精细的岩石圈三维速度结构有助于更好地认识这里的构造演化和地球动力学过程. 本文收集了大别—苏鲁造山带及其周缘各区域地震台网2008—2021年间记录的天然地震走时资料，其中添加了江苏、安徽、河南三省103个自建台站的观测资料. 结合区域内8~70 s瑞雷面波频散数据，采用体波面波联合反演方法获得了水平方向上0.5°×0.5°网格的Vp、Vs模型，并进行了地震重新定位. 研究表明：(1)大别和苏鲁造山带的壳内速度分布具有上凸下凹的相似结构，中地壳同时存在高、低速异常，但苏鲁造山带的岩石圈厚度相对更薄. (2)襄樊—广济断裂南侧、晓天—磨子潭断裂以及嘉山—响水断裂下方出现岩石圈地幔缺口，可能与岩石圈拆沉有关，推测中地壳高速体可能是热物质通过岩石圈薄弱位置上涌后在壳内冷却形成的结晶物. (3)大别山和苏鲁地体早期可能是同生构造，受扬子板块俯冲、郯庐断裂带的走滑活动以及古太平洋板块俯冲等因素控制，造成现今岩石圈深部结构的差异. (4)研究区内的主要地质体表现出各自不同的地震活动性，地震分布总体呈现出北多南少的特征，且地震主要发生在高、低速过渡带或高速异常区域. 郯庐断裂带中段郯城下方的地震在纵向上呈高角度条带状展布，最大震源深度接近25 km，表明断裂面在深部可能存在高倾角发育.
Abstract:Dabie-Sulu orogenic belt is an important collisional mountain belt in eastern China. Detailed lithospheric velocity model is essential for better comprehension of the tectonic evolution and geodynamic processes in this region. The earthquake catalog data recorded by the China Digital Seismic Network from 2008 to 2021 are collected in this study, including the waveform data of 103 self-managed stations in Jiangsu, Anhui and Henan provinces. We also assembled the Rayleigh surface wave dispersion data for the period of 8~70 s in this area, and the joint inversion method of body wave and surface wave data is employed to determine the Vp and Vs models with horizontal grid intervals of 0.5°×0.5°. Additionally, the earthquakes were relocated by joint inversion. This research obtained the following results: (1) The crustal velocity models in Dabie and Sulu orogenic belts exhibit a similar pattern of convex upwards and concave downwards. Both high and low-velocity anomalies exist in the middle crust, but the lithosphere thickness of the Sulu orogen is relatively thinner. (2) The lithospheric mantle gaps on the south side of the Xiangfan-Guangji fault, the Xiaotian-Mozitan fault and the Jiashan-Xiangshui fault are likely related to the lithosphere delamination. We suggest that the high-velocity anomalies in the middle crust probably are the products of crystallization of upwelling mantle materials through the lithosphere weak zones. (3) The Dabie Mountain and the Sulu terrane may have shared a common tectonic origin, yet the differences in their current lithospheric mantle could result from the subduction of the Yangtze plate, the strike-slip motion of the Tan-Lu fault zone, and the subduction of the Paleo-Pacific plate. (4) Main geological bodies show distinct seismic activities, with a general trend of higher seismicity in the north than in the south, and earthquakes mainly occur in the transition zone between high and low velocities or in high velocity anomaly areas. The earthquakes beneath Tancheng in the central segment of Tan-Lu fault zone are distributed in high-angle stripes, with maximum hypocenteral depth around 25 km, indicating that the fault may have high dip angle in the deep part.
-
-

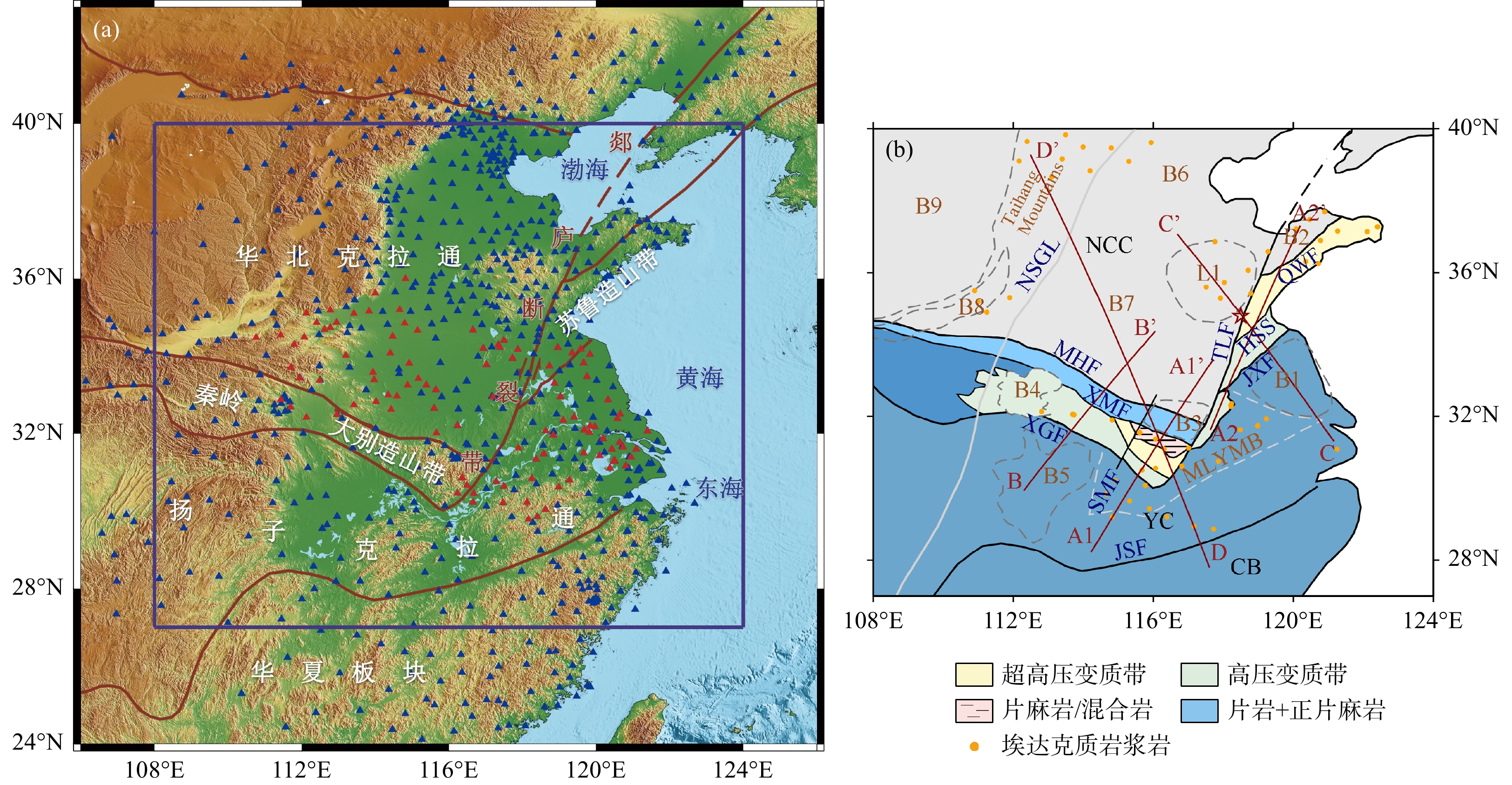

图 1
(a)研究区域地形地貌和台站分布图，蓝色三角表示由中国地震局建设的台站，红色三角表示由各省、市地震局建设的台站，紫色框为图1b所示的区域；(b)地质构造简图
Figure 1.
(a) Topography and distribution of seismic stations in the study area. The blue triangles represent the stations operated by the China Earthquake Administration, the red triangles represent the stations constructed by the provincial and municipal Earthquake Agencies. The purple box is the region shown in Fig.1b; (b) Simplified geological map

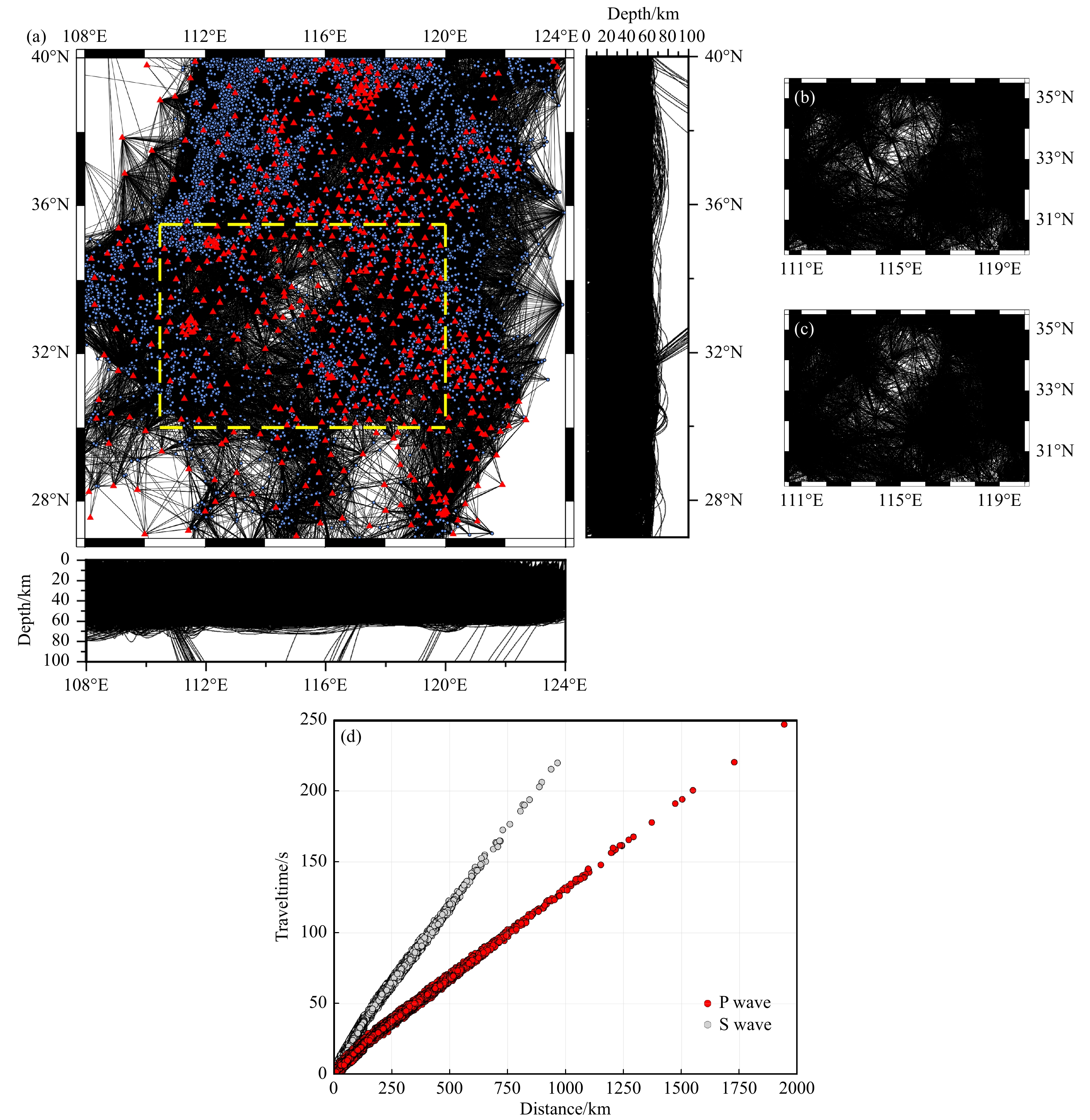

图 2
(a)地震射线路径(黑色线)、台站(红色三角)及地震(蓝色实心圆)分布图，其中，下方和右侧子图表示射线路径在深度方向的示意图；数据补充前(b)、后(c)大别山附近的射线覆盖图；(d) P、S波时距曲线，红色表示P波，灰色表示S波
Figure 2.
(a) Distribution of ray paths (black lines), stations (red triangles) and earthquakes (blue solid circles). The lower and right subplots represent ray paths in the depth direction; The distribution of ray paths around Dabie Mountain with (b) and without (c) the supplementary earthquake data; (d) Time-distance curves for P-wave (red) and S-wave (gray).
图 3

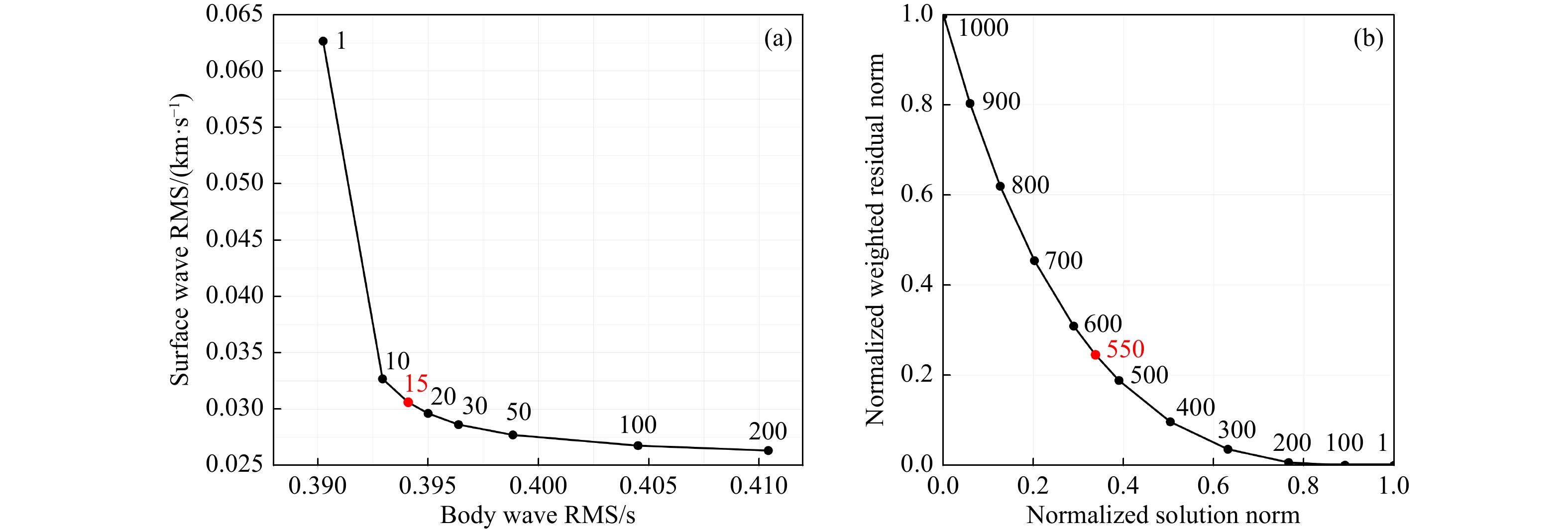

选择最优的面波数据权重(a)和阻尼因子(b)的L-curve曲线
Figure 3.
The L-curves for selecting the optimal surface wave data weight (a) and damping factor (b)

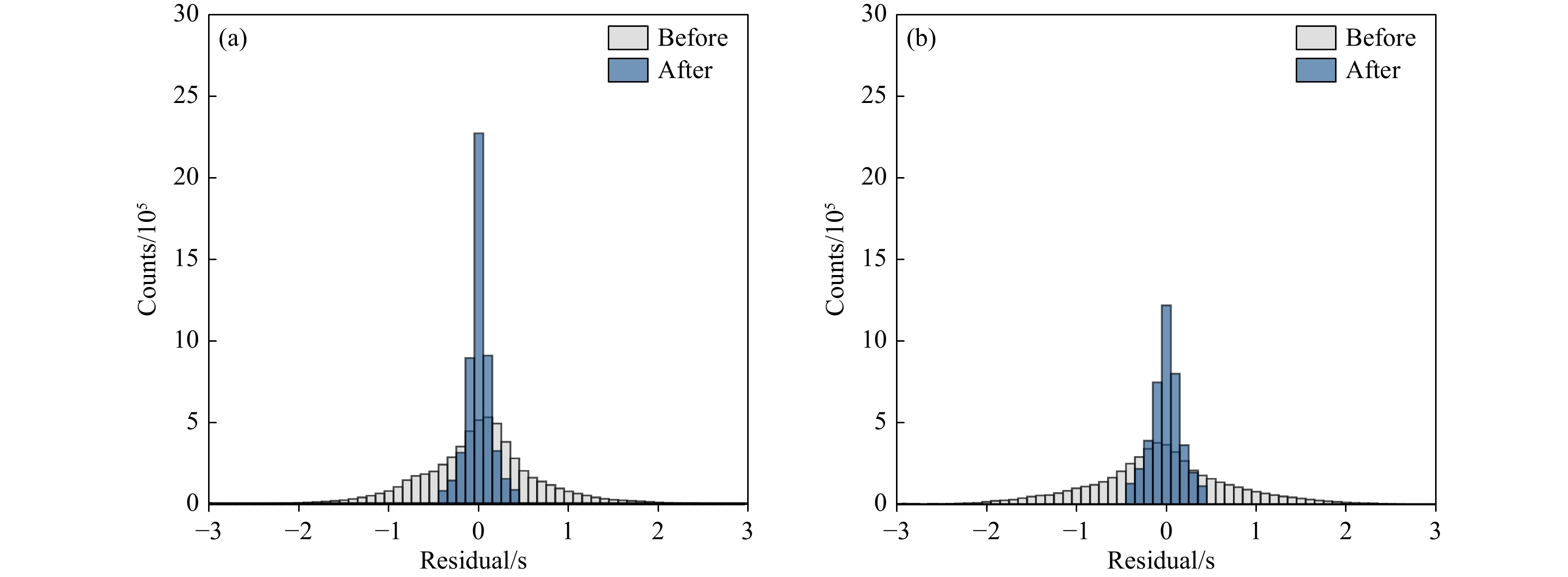

图 4
P波(a)、S波(b)走时残差直方图
Figure 4.
Histograms of arrival time residuals for P-wave (a) and S-wave (b)

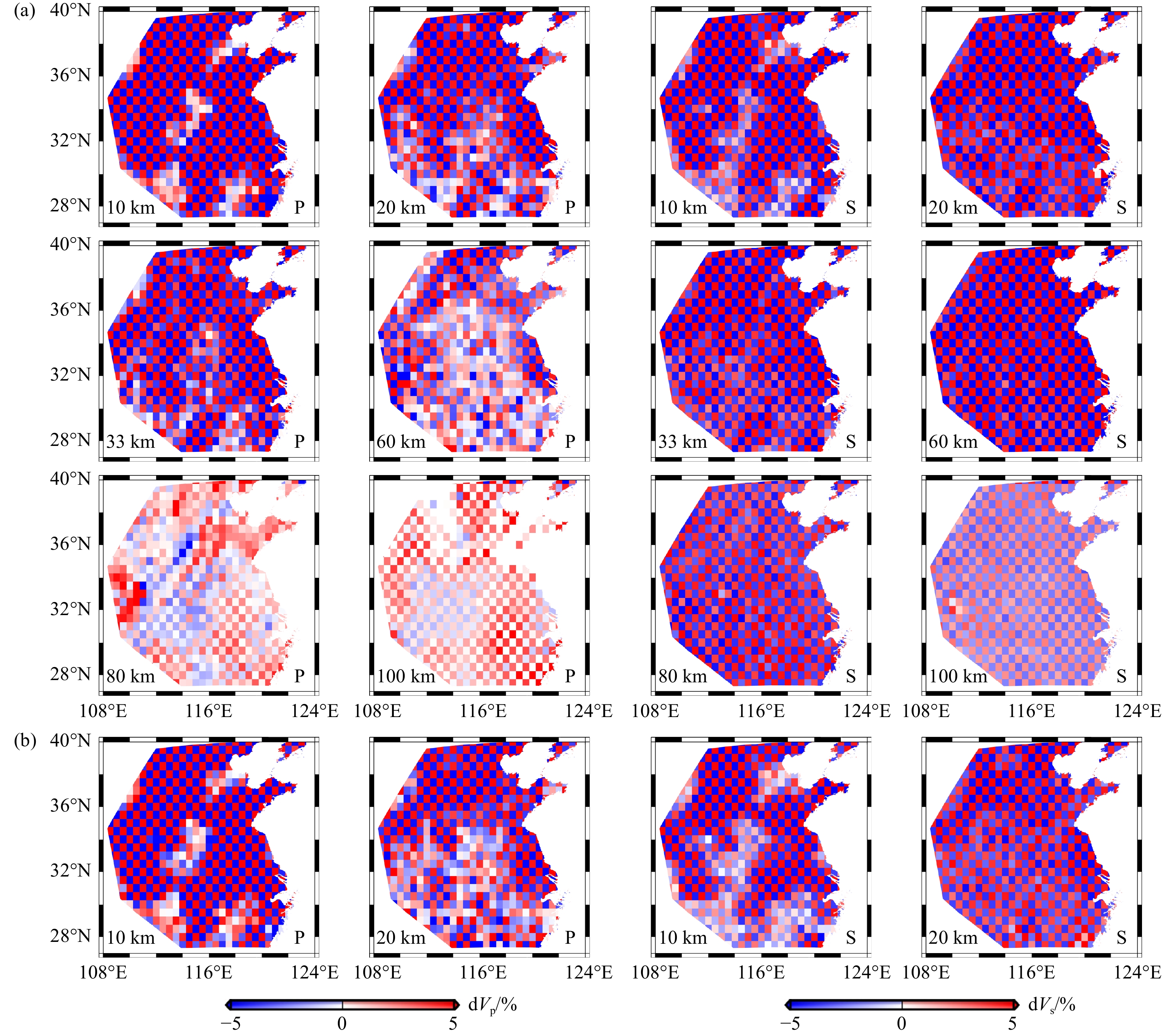

图 5
不同深度Vp、Vs棋盘格测试图
Figure 5.
Resolved checkerboard patterns for Vp and Vs at different depths

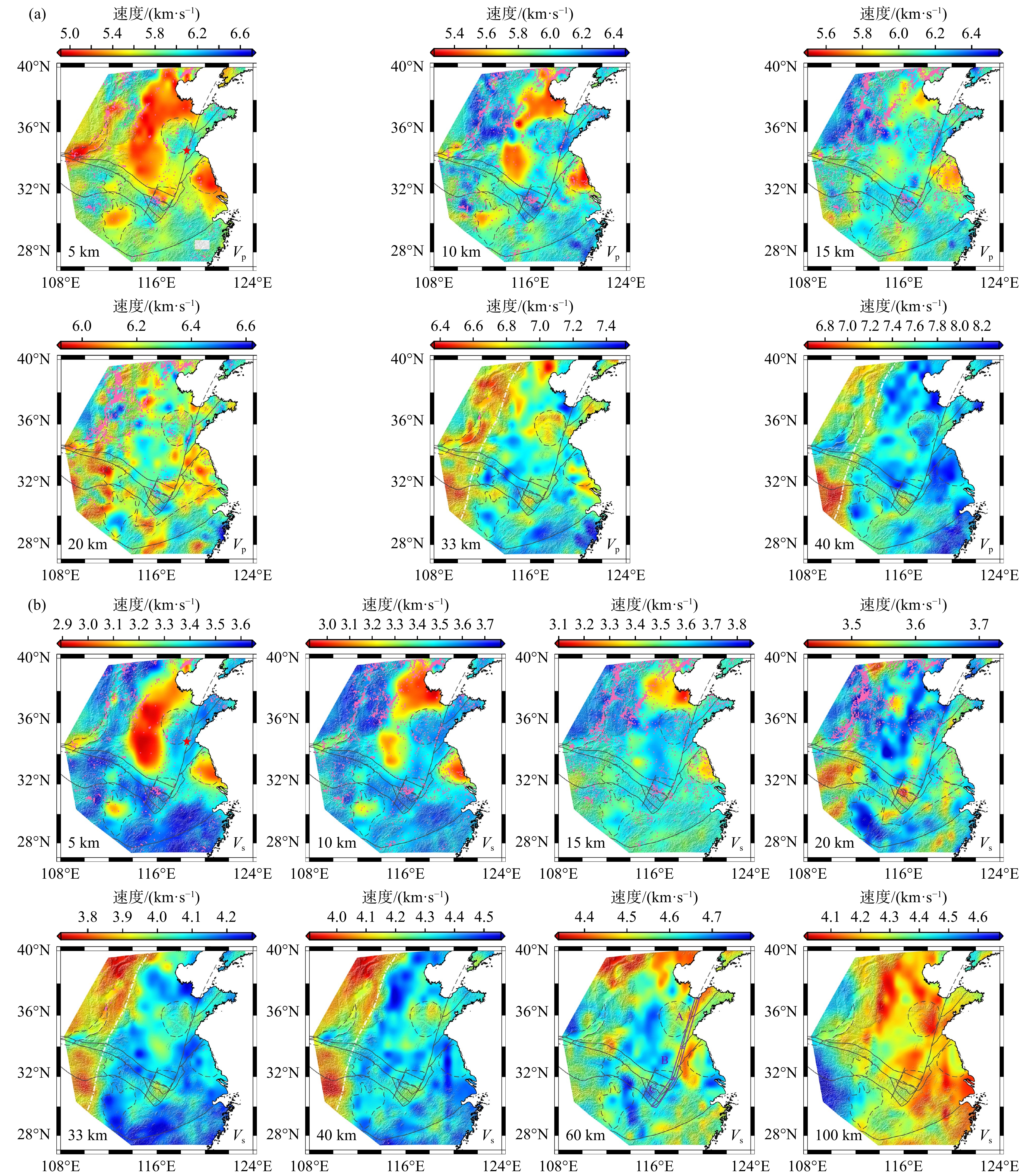

图 6
不同深度上Vp(a)和 Vs(b)的速度切片
Figure 6.
Velocity slices of Vp (a) and Vs (b) at different depths

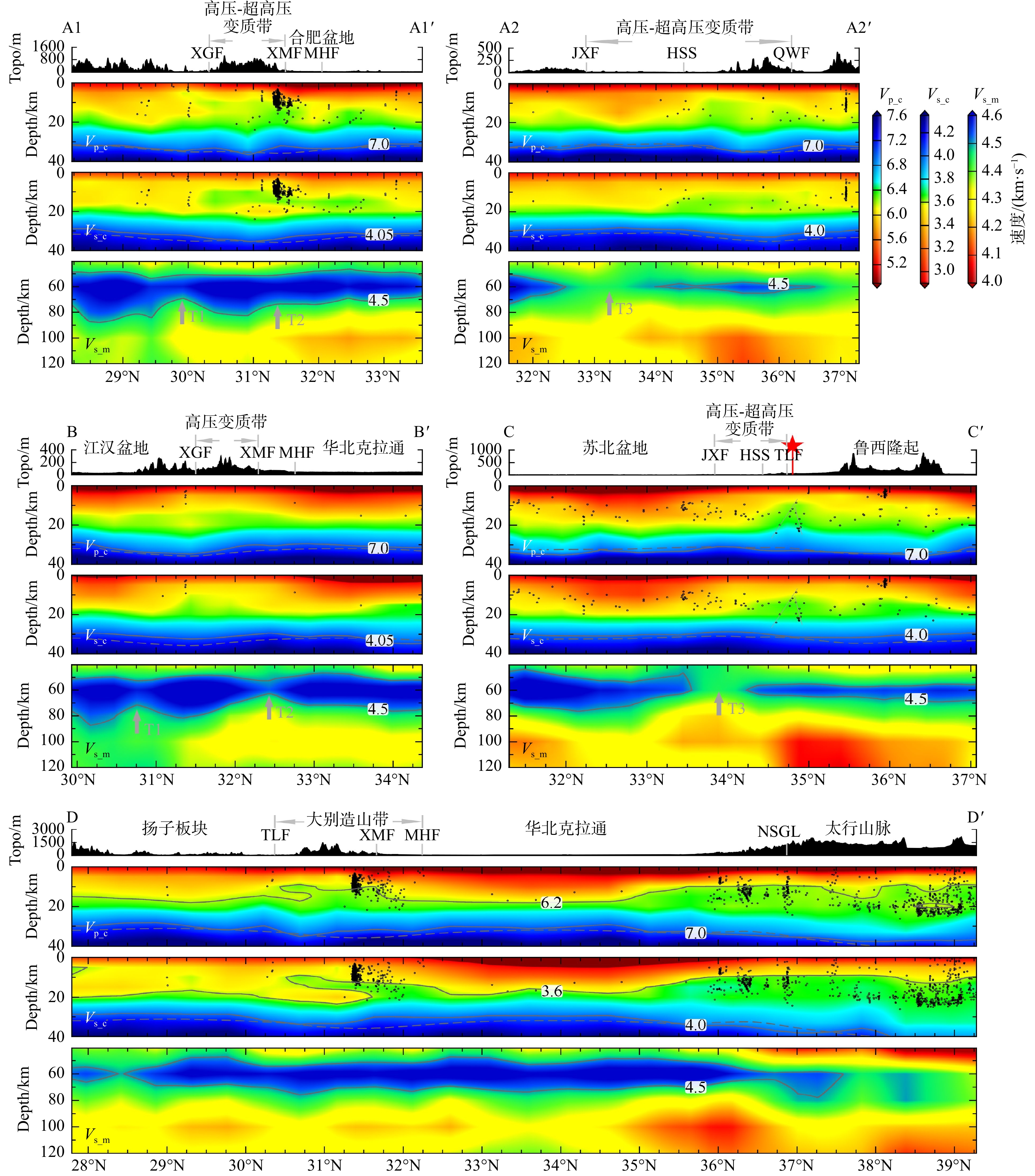

图 7
速度模型沿不同测线的纵剖面图
Figure 7.
Vertical sections of velocity models along different survey lines

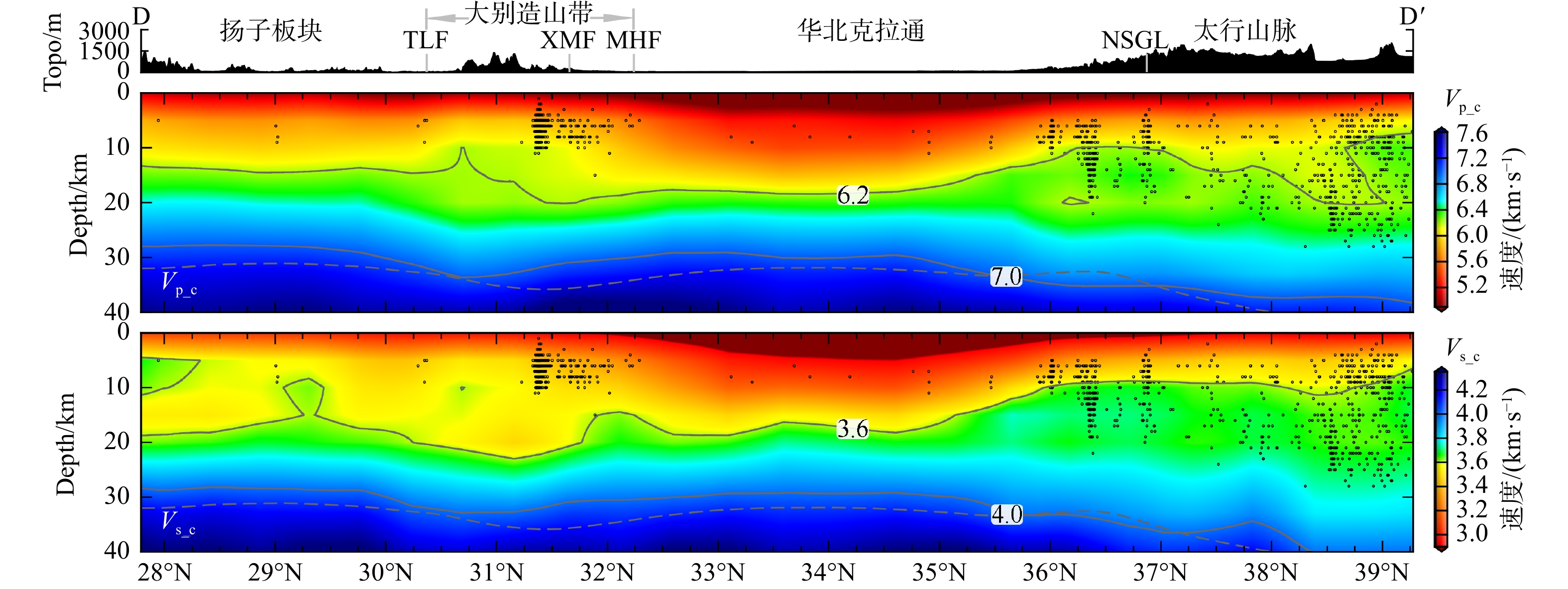

图 8
初始模型USTClitho2.0沿测线DD'的纵剖面
Figure 8.
Vertical cross section along the profile DD' of the initial model USTClitho2.0
-
Bryant D L, Ayers J C, Gao S, et al. 2004. Geochemical, age, and isotopic constraints on the location of the Sino-Korean/Yangtze Suture and evolution of the Northern Dabie Complex, east central China. GSA Bulletin, 116(5-6): 698-717, doi: 10.1130/B25302.2.
Chen L, Ai Y S. 2009. Discontinuity structure of the mantle transition zone beneath the North China Craton from receiver function migration. Journal of Geophysical Research: Solid Earth, 114(B6): B06307, doi: 10.1029/2008JB006221.
Chen L, Zheng T Y, Xu W W. 2006. A thinned lithospheric image of the Tanlu Fault zone, eastern China: Constructed from wave equation based receiver function migration. Journal of Geophysical Research: Solid Earth, 111(B9): B09312, doi: 10.1029/2005JB003974.
Deng Y F, Chen L, Xu T, et al. 2017. Lateral variation in seismic velocities and rheology beneath the Qinling-Dabie orogen. Science China Earth Sciences, 60(3): 576-588, doi: 10.1007/s11430-016-0101-6.
Ding W X, Fu Y Y, Gao Y, et al. 2017. Phase velocity tomography of Rayleigh in Qinling-Dabie and its adjacent areas using ambient seismic noise. Chinese Journal of Geophysics (in Chinese), 60(8): 2959-2968, doi: 10.6038/cjg20170805.
Fang H J, Yao H J, Zhang H J, et al. 2015. Direct inversion of surface wave dispersion for three-dimensional shallow crustal structure based on ray tracing: Methodology and application. Geophysical Journal International, 201(3): 1251-1263, doi: 10.1093/gji/ggv080.
Gao L, Zhang H J, Gao L N, et al. 2022. High-resolution Vs tomography of South China by joint inversion of body wave and surface wave data. Tectonophysics, 824: 229228, doi: 10.1016/j.tecto.2022.229228.
Gu Q P, Ding Z F, Kang Q Q, et al. 2020a. Group velocity tomography of Rayleigh wave in the middle-southern segment of the Tan-Lu fault zone and adjacent regions using ambient seismic noise. Chinese Journal of Geophysics (in Chinese), 63(4): 1505-1522, doi: 10.6038/cjg2020N0117.
Gu Q P, Kang Q Q, Zhang P, et al. 2020b. Rayleigh wave phase velocity and azimuthal anisotropy of the middle-southern segment of the Tan-Lu fault zone and adjacent regions from ambient noise tomography. Seismology and Geology (in Chinese), 42(5): 1129-1152, doi: 10.3969/j.issn.0253-4967.2020.05.007.
Gu Q P, Li D H, Ding Z F, et al. 2022. Crustal structure characteristics beneath the Shandong-Jiangsu-Anhui segment of the Tan-Lu fault zone and its adjacent regions using receiver functions. Chinese Journal of Geophysics (in Chinese), 65(9): 3280-3296, doi: 10.6038/cjg2022P0926.
Guo F, Fan W M, Li C W. 2006. Geochemistry of late Mesozoic adakites from the Sulu belt, eastern China: magma genesis and implications for crustal recycling beneath continental collisional orogens. Geological Magazine, 143(1): 1-13, doi: 10.1017/S0016756805001214.
Hacker B R, Ratschbacher L, Webb L, et al. 2000. Exhumation of ultrahigh-pressure continental crust in east central China: Late Triassic-Early Jurassic tectonic unroofing. Journal of Geophysical Research: Solid Earth, 105(B6): 13339-13364, doi: 10.1029/2000JB900039.
Han S C, Zhang H J, Xin H L, et al. 2022. USTClitho2.0: Updated unified seismic tomography models for continental China lithosphere from joint inversion of body-wave arrival times and surface-wave dispersion data. Seismological Research Letters, 93(1): 201-215, doi: 10.1785/0220210122.
Hansen P C. 1992. Analysis of discrete ill-posed problems by means of the L-curve. SIAM Review, 34(4): 561-580, doi: 10.1137/1034115.
He R Z, Shang X F, Yu C Q, et al. 2014. A unified map of Moho depth and Vp/Vs ratio of continental China by receiver function analysis. Geophysical Journal International, 199(3): 1910-1918, doi: 10.1093/gji/ggu365.
Huang Y, Li Q H, Zhang Y S, et al. 2011. Crustal velocity structure beneath the Shandong-Jiangsu-Anhui segment of the Tancheng-Lujiang Fault Zone and adjacent areas. Chinese Journal of Geophysics (in Chinese), 54(10): 2549-2559, doi: 10.3969/j.issn.0001-5733.2011.10.012.
Kay R W, Mahlburg-Kay S. 1991. Creation and destruction of lower continental crust. Geologische Rundschau, 80(2): 259-278, doi: 10.1007/BF01829365.
Lévěque J J, Rivera L, Wittlinger G. 1993. On the use of the checker-board test to assess the resolution of tomographic inversions. Geophysical Journal International, 115(1): 313-318, doi: 10.1111/j.1365-246X.1993.tb05605.x.
Li C F, Chen B, Zhou Z Y. 2009. Deep crustal structures of eastern China and adjacent seas revealed by magnetic data. Science in China Series D: Earth Sciences, 52(7): 984-993.
Li H Y, Song X D, Lü Q T, et al. 2018. Seismic imaging of lithosphere structure and upper mantle deformation beneath east-central China and their tectonic implications. Journal of Geophysical Research: Solid Earth, 123(4): 2856-2870, doi: 10.1002/2017JB014992.
Li S G, Xiao Y L, Liou D, et al. 1993. Collision of the North China and Yangtse Blocks and formation of coesite-bearing eclogites: Timing and processes. Chemical Geology, 109(1-4): 89-111, doi: 10.1016/0009-2541(93)90063-O.
Li S Z, Kusky T M, Zhao G C, et al. 2011. Thermochronological constraints on two-stage extrusion of HP/UHP terranes in the Dabie–Sulu orogen, east-central China. Tectonophysics, 504(1-4): 25-42, doi: 10.1016/j.tecto.2011.01.017.
Liu B J, Feng S Y, Ji J F, et al. 2015. Fine lithosphere structure beneath the middle-southern segment of the Tan-Lu fault zone. Chinese Journal of Geophysics (in Chinese), 58(5): 1610-1621, doi: 10.6038/cjg20150513.
Liu F T, Xu P F, Liu J S, et al. 2003. The crustal velocity structure of the continental deep subduction belt: study on the eastern Dabie orogen by seismic wide-angle reflection/refraction. Chinese Journal of Geophysics (in Chinese), 46(3): 366-372.
Long L T. 1988. A model for major intraplate continental earthquakes. Seismological Research Letters, 59(4): 273-278, doi: 10.1785/gssrl.59.4.273.
Luo S, Yao H J, Zhang Z Q, et al. 2022. High-resolution crustal and upper mantle shear-wave velocity structure beneath the central-southern Tanlu fault: Implications for its initiation and evolution. Earth and Planetary Science Letters, 595: 117763, doi: 10.1016/j.jpgl.2022.117763.
Luo Y H, Xu Y X, Yang Y J. 2012. Crustal structure beneath the Dabie orogenic belt from ambient noise tomography. Earth and Planetary Science Letters, 313-314: 12-22, doi: 10.1016/j.jpgl.2011.11.004.
Luo Y H, Zhao K F, Tang C C, et al. 2018. Seismic evidence for multiple-stage exhumation of high/ultrahigh pressure metamorphic rocks in the eastern Dabie orogenic belt. Geophysical Journal International, 214(2): 1379-1390, doi: 10.1093/gji/ggy208.
Ma X Y, Liu C Q, Liu G D. 1991. Xiangshui (Jiangsu province) to Mandal (Nei Monggol) geoscience transect. Acta Geologica Sinica (in Chinese), (3): 199-215.
Meng Y F, Yao H J, Wang X Z, et al. 2019. Crustal velocity structure and deformation features in the central-southern segment of Tanlu fault zone and its adjacent area from ambient noise tomography. Chinese Journal of Geophysics (in Chinese), 62(7): 2490-2509, doi: 10.6038/cjg2019M0189.
Obrebski M, Allen R M, Zhang F X, et al. 2012. Shear wave tomography of China using joint inversion of body and surface wave constraints. Journal of Geophysical Research: Solid Earth, 117(B1): B01311, doi: 10.1029/2011JB008349.
Okay A I, Xu S T, Sengör A M C. 1989. Coesite from the Dabie Shan eclogites, central China. European Journal of Mineralogy, 1(4): 595-598, doi: 10.1127/ejm/1/4/0595.
Ouyang L B, Li H Y, Lü Q T, et al. 2014. Crustal and uppermost mantle velocity structure and its relationship with the formation of ore districts in the Middle-Lower Yangtze River region. Earth and Planetary Science Letters, 408: 378-389, doi: 10.1016/j.jpgl.2014.10.017.
Paige C C, Saunders M A. 1982. Algorithm 583: LSQR: sparse linear equations and least squares problems. ACM Transactions on Mathematical Software, 8(2): 195-209, doi: 10.1145/355993.356000.
Ratschbacher L, Hacker B R, Webb L E, et al. 2000. Exhumation of the ultrahigh-pressure continental crust in east central China: Cretaceous and Cenozoic unroofing and the Tan-Lu fault. Journal of Geophysical Research: Solid Earth, 105(B6): 13303-13338.
Shen W S, Ritzwoller M H, Kang D, et al. 2016. A seismic reference model for the crust and uppermost mantle beneath China from surface wave dispersion. Geophysical Journal International, 206(2): 954-979, doi: 10.1093/gji/ggw175.
Wang Q, Ji S C, Salisbury M H, et al. 2005. Shear wave properties and Poisson’s ratios of ultrahigh-pressure metamorphic rocks from the Dabie-Sulu orogenic belt, China: Implications for crustal composition. Journal of Geophysical Research: Solid Earth, 110(B8): B08208, doi: 10.1029/2004JB003435.
Wang Q, Wyman D A, Xu J F, et al. 2007. Early Cretaceous adakitic granites in the Northern Dabie Complex, central China: Implications for partial melting and delamination of thickened lower crust. Geochimica et Cosmochimica Acta, 71(10): 2609-2636, doi: 10.1016/j.gca.2007.03.008.
Wang X F, Li Z J, Chen B L, et al. 2000. On Tan-Lu Fault Zone (in Chinese). Beijing: Geological Publishing House.
Xia B, Thybo H, Artemieva I M. 2020. Lithosphere mantle density of the North China Craton. Journal of Geophysical Research: Solid Earth, 125(9): e2020JB020296, doi: org/10.1029/2020JB020296.
Xiao Q B, Zhao G Z, Wang J J, et al. 2009. Deep electrical structure of the Sulu orogen and neighboring areas. Science in China Series D: Earth Sciences, 52(3): 420-430.
Xiao Q B, Zhao G Z, Zhan Y, et al. 2007. A preliminary study on electrical structure and dynamics of the ultra-high pressure metamorphic belt beneath the Dabie Mountains. Chinese Journal of Geophysics (in Chinese), 50(3): 812-822, doi: 10.3321/j.issn:0001-5733.2007.03.021.
Xin H L, Zhang H J, Kang M, et al. 2019. High-resolution lithospheric velocity structure of Continental China by double-difference seismic travel-time tomography. Seismological Research Letters, 90(1): 229-241, doi: 10.1785/0220180209.
Xu J R, Yang W C, Zhao Z X, et al. 2003. Three-dimensional velocity structures of the Sulu-Dabie orogen belt. Acta Geologica Sinica (in Chinese), 77(4): 577-582, doi: 10.3321/j.issn:0001-5717.2003.04.014.
Xu J R, Zhao Z X. 2006. Regional characteristics of modern crustal stress field and tectonic motions in and around the Sulu-Dabie Orogen Belt. Acta Geologica Sinica (in Chinese), 80(12): 1952-1961, doi: 10.3321/j.issn:0001-5717.2006.12.019.
Xu P F, Liu F T, Wang Q C, et al. 2000. Seismic tomography beneath the Dabie-Sulu collision orogen 3-D velocity structures of lithosphere. Chinese Journal of Geophysics (in Chinese), 43(3): 377-385, doi: 10.3321/j.issn:0001-5733.2000.03.011.
Yang W C, Cheng Z Y, Chen G J, et al. 1999. Geophysical investigations in northern Sulu UHPM belt, Part Ⅰ: Deep seismic reflection. Chinese Journal of Geophysics (in Chinese), 42(1): 41-52.
Yang W C, Xu J R, Cheng Z Y, et al. 2005. Regional Geophysics and Crust-Mantle interaction in Sulu-Dabie Orogenic Belt (in Chinese). Beijing: Geological Publishing House.
Yang X S, Ma J. 2003. Continental lithosphere decoupling: implication for block movement. Earth Science Frontiers (in Chinese), 10(S1): 240-247, doi: 10.3321/j.issn:1005-2321.2003.z1.033.
Yu Q F, Yao C L, Meng X H, et al. 2001. Interpretation of gravity and magnetic anomalies obtained at continental scientific drilling site in Subei. Chinese Journal of Geophysics (in Chinese), 44(6): 825-832.
Zhang H J, Maceira M, Roux P, et al. 2014. Joint inversion of body-wave arrival times and surface-wave dispersion for three dimensional seismic structure around SAFOD. Pure and Applied Geophysics, 171(11): 3013-3022, doi: 10.1007/s00024-014-0806-y.
Zhang H J, Thurber C H. 2003. Double-difference tomography: The method and its application to the Hayward Fault, California. Bulletin of the Seismological Society of America, 93(5): 1875-1889, doi: 10.1785/0120020190.
Zhang H J, Thurber C. 2006. Development and applications of double-difference seismic tomography. Pure and Applied Geophysics, 163(2-3): 373-403, doi: 10.1007/s00024-005-0021-y.
Zhang Q, Wang Y, Qian Q, et al. 2001. The characteristics and tectonic-metallogenic significances of the adakites in Yanshan period from eastern China. Acta Petrologica Sinica (in Chinese), 17(2): 236-244.
Zhao T, Zhu G, Lin S Z, et al. 2016. Indentation-induced tearing of a subducting continent: Evidence from the Tan–-Lu Fault Zone, East China. Earth-Science Reviews, 152: 14-36, doi: 10.1016/j.earscirev.2015.11.003.
Zhao Z X, Xu J R, Xu Z Q. 2004. 3-D S wave velocity structure in the upper mantle and the mechanism investigation for the ultrahigh-pressure metamorphosed belt in the Dabie-Sulu region. Acta Petrologica Sinica (in Chinese), 20(1): 157-164, doi: 10.3969/j.issn.1000-0569.2004.01.014.
Zheng Y F, Zhao Z F, Chen R X. 2019. Ultrahigh-pressure metamorphic rocks in the Dabie–-Sulu orogenic belt: compositional inheritance and metamorphic modification. Geological Society, London, Special Publications, 474(1): 89-132, doi: 10.1144/SP474.9.
Zhou Y S, He C R. 2002. The relationship between low velocity layers and rheology of the crust in North China and its effect on strong earthquake. Seismology and Geology (in Chinese), 24(1): 124-132, doi: 10.3969/j.issn.0253-4967.2002.01.012.
Zhu A L, Xu X W, Wang P, et al. 2018. The present activity of the central and southern segments of the Tancheng-Lujiang fault zone evidenced from relocated microseismicity and focal mechanisms. Earth Science Frontiers (in Chinese), 25(1): 218-226, doi: 10.13745/j.esf.yx.2016-11-54.
Zhu G, Liu G S, Niu M L, et al. 2009. Syn-collisional transform faulting of the Tan-Lu fault zone, East China. International Journal of Earth Sciences, 98(1): 135-155, doi: 10.1007/s00531-007-0225-8.
丁文秀, 付媛媛, 高原等. 2017. 秦岭一大别及邻区背景噪声的瑞利波层析成像. 地球物理学报, 60(8): 2959-2968, doi: 10.6038/cjg20170805.
顾勤平, 丁志峰, 康清清等. 2020a. 郯庐断裂带中南段及邻区基于背景噪声的瑞利波群速度层析成像. 地球物理学报, 63(4): 1505-1522, doi: 10.6038/cjg2020N0117.
顾勤平, 康清清, 张鹏等. 2020b. 郯庐断裂带中南段及邻区Rayleigh波相速度与方位各向异性. 地震地质, 42(5): 1129-1152, doi: 10.3969/j.issn.0253-4967.2020.05.007.
顾勤平, 李大虎, 丁志峰等. 2022. 利用接收函数研究郯庐断裂带鲁苏皖段及邻区地壳结构特征. 地球物理学报, 65(9): 3280-3296, doi: 10.6038/cjg2022P0926.
黄耘, 李清河, 张元生等. 2011. 郯庐断裂带鲁苏皖段及邻区地壳速度结构. 地球物理学报, 54(10): 2549-2559, doi: 10.3969/j.issn.0001-5733.2011.10.012.
李春峰, 陈冰, 周祖翼. 2009. 中国东部及邻近海域磁异常数据所揭示的深部构造. 中国科学(D辑: 地球科学), 39(12): 1770-1779.
刘保金, 酆少英, 姬计法等. 2015. 郯庐断裂带中南段的岩石圈精细结构. 地球物理学报, 58(5): 1610-1621, doi: 10.6038/cjg20150513.
刘福田, 徐佩芬, 刘劲松等. 2003. 大陆深俯冲带的地壳速度结构——东大别造山带深地震宽角反射/折射研究. 地球物理学报, 46(3): 366-372.
马杏垣, 刘昌铨, 刘国栋. 1991. 江苏响水至内蒙古满都拉地学断面. 地质学报, (3): 199-215.
孟亚锋, 姚华建, 王行舟等. 2019. 基于背景噪声成像方法研究郯庐断裂带中南段及邻区地壳速度结构与变形特征. 地球物理学报, 62(7): 2490-2509, doi: 10.6038/cjg2019M0189.
王小凤, 李中坚, 陈柏林等. 2000. 郯庐断裂带. 北京: 地质出版社.
肖骑彬, 赵国泽, 王继军等. 2008. 苏鲁造山带及邻区深部电性结构研究. 中国科学(D辑: 地球科学), 38(10): 1258-1267.
肖骑彬, 赵国泽, 詹艳等. 2007. 大别山超高压变质带深部电性结构及其动力学意义初步研究. 地球物理学报, 50(3): 812-822, doi: 10.3321/j.issn:0001-5733.2007.03.021.
徐纪人, 杨文采, 赵志新等. 2003. 苏鲁大别造山带岩石圈三维P波速度结构特征. 地质学报, 77(4): 577-582, doi: 10.3321/j.issn:0001-5717.2003.04.014.
徐纪人, 赵志新. 2006. 苏鲁—大别造山带及其周围现代地壳应力场与构造运动区域特征. 地质学报, 80(12): 1952-1961, doi: 10.3321/j.issn:0001-5717.2006.12.019.
徐佩芬, 刘福田, 王清晨等. 2000. 大别—苏鲁碰撞造山带的地震层析成像研究——岩石圈三维速度结构. 地球物理学报, 43(3): 377-385, doi: 10.3321/j.issn:0001-5733.2000.03.011.
杨文采, 程振炎, 陈国九等. 1999. 苏鲁超高压变质带北部地球物理调查(I)——深反射地震. 地球物理学报, 42(1): 41-52.
杨文采, 徐纪人, 程振炎等. 2005. 苏鲁大别造山带地球物理与壳幔作用. 北京: 地质出版社.
杨晓松, 马瑾. 2003. 大陆岩石圈解耦及块体运动讨论——以青藏高原—川滇地区为例. 地学前缘, 10(S1): 240-247, doi: 10.3321/j.issn:1005-2321.2003.z1.033.
余钦范, 姚长利, 孟小红等. 2001. 苏北大陆科学钻探靶区重磁异常反演解释. 地球物理学报, 44(6): 825-832.
张旗, 王焰, 钱青等. 2001. 中国东部燕山期埃达克岩的特征及其构造—成矿意义. 岩石学报, 17(2): 236-244.
赵志新, 徐纪人, 许志琴. 2004. 上地幔三维S波速度结构与大别苏鲁超高压变质带俯冲折返机制探讨. 岩石学报, 20(1): 157-164, doi: 10.3969/j.issn.1000-0569.2004.01.014.
周永胜, 何昌荣. 2002. 华北地区壳内低速层与地壳流变的关系及其对强震孕育的影响. 地震地质, 24(1): 124-132, doi: 10.3969/j.issn.0253-4967.2002.01.012.
朱艾斓, 徐锡伟, 王鹏等. 2018. 以精定位背景地震活动与震源机制解研究郯庐断裂带中南段现今活动习性. 地学前缘, 25(1): 218-226, doi: 10.13745/j.esf.yx.2016-11-54.
-
