基于瞬时相位的微地震干涉定位方法研究

战婷婷, 李磊, 陈浩. 2022. 基于瞬时相位的微地震干涉定位方法研究. 地球物理学报, 65(5): 1753-1768, doi: 10.6038/cjg2022P0077
引用本文: 战婷婷, 李磊, 陈浩. 2022. 基于瞬时相位的微地震干涉定位方法研究. 地球物理学报, 65(5): 1753-1768, doi: 10.6038/cjg2022P0077
ZHAN TingTing, LI Lei, CHEN Hao. 2022. Research on microseismic interferometric location method based on the instantaneous phase. Chinese Journal of Geophysics (in Chinese), 65(5): 1753-1768, doi: 10.6038/cjg2022P0077
Citation: ZHAN TingTing, LI Lei, CHEN Hao. 2022. Research on microseismic interferometric location method based on the instantaneous phase. Chinese Journal of Geophysics (in Chinese), 65(5): 1753-1768, doi: 10.6038/cjg2022P0077

基于瞬时相位的微地震干涉定位方法研究

  • 基金项目:

    国家自然科学基金资助项目(11734017, 42004115, 11574347)资助

详细信息
    作者简介:

    战婷婷, 女, 1994年生, 博士研究生, 主要从事微地震监测方法研究. E-mail: zhantingting@mail.ioa.ac.cn

    通讯作者: 李磊, 男, 1991年生, 特聘副教授, 硕士生导师, 主要从事诱发(微)地震监测和水力压裂研究. E-mail: leileely@126.com
  • 中图分类号: P631

Research on microseismic interferometric location method based on the instantaneous phase

More Information
  • 波形叠加定位法具有自动性和抗噪性等优点, 已被广泛应用于微地震事件定位.当该类方法采用特征函数变换原始波形以克服初至极性变化影响时, 会降低成像分辨率.而将相位加权叠加法应用于微地震成像时, 虽然提高了成像分辨率, 但并未考虑复杂震源机制对定位的影响.为了校正波形极性, 并提高干涉成像法的分辨率和压制噪声的能力, 本文重新组合了原始互相关波形的振幅和瞬时相位信息, 提出了互相关相位加权成像法(CCPW).通过数值算例对比了互相关相位加权成像法(CCPW)、基于绝对值干涉成像法(AII)和基于长短时窗能量比干涉成像法(SLII), 讨论了不同方法在抗噪性和成像分辨率等方面的性能.理论测试结果表明: 新方法能够校正波形极性变化, 具有较强的抗噪性, 提高了成像分辨率.最后将三种方法应用于地面监测的实际矿震数据中, 验证了新方法的有效性.

  • 加载中

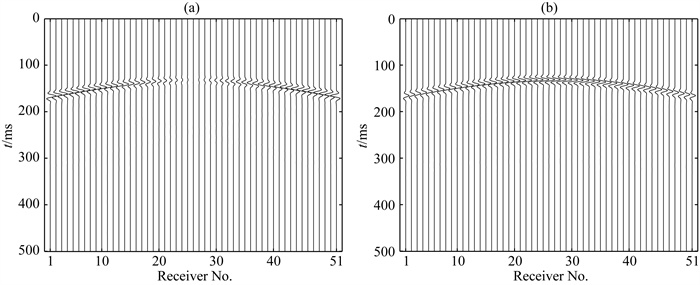

  • 图 1

    合成微地震记录

    Figure 1.

    Synthetic microseismic records

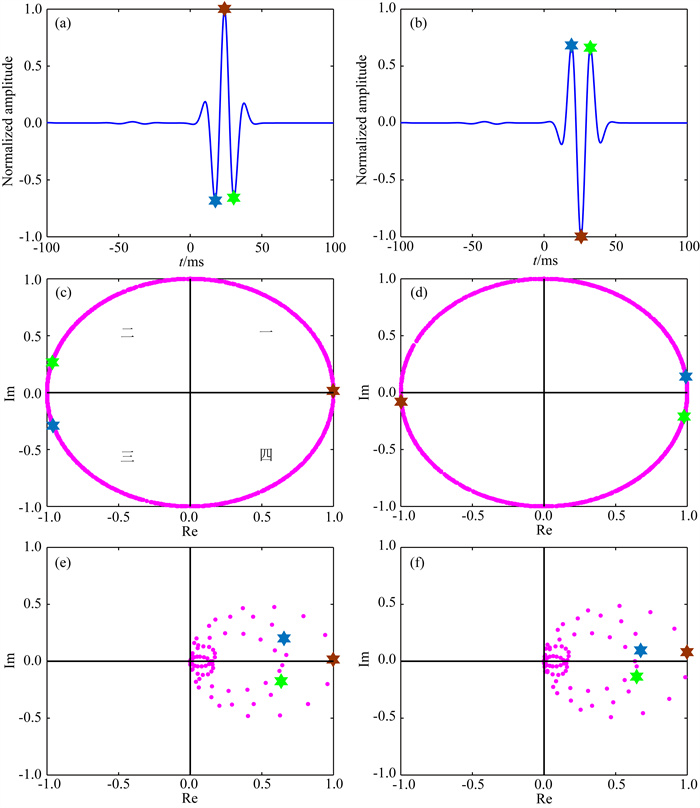

    图 2

    互相关相位加权成像法的极性校正原理示意图

    Figure 2.

    Sketch of polarity correction principle of CCPW

    图 3

    最终叠加值随指数v的取值变化示意图

    Figure 3.

    Sketch of the final stacked value changing with the value of exponent v

    图 4

    互相关波形偏移叠加结果对比

    Figure 4.

    Comparison of cross-correlation waveforms migration stacking results

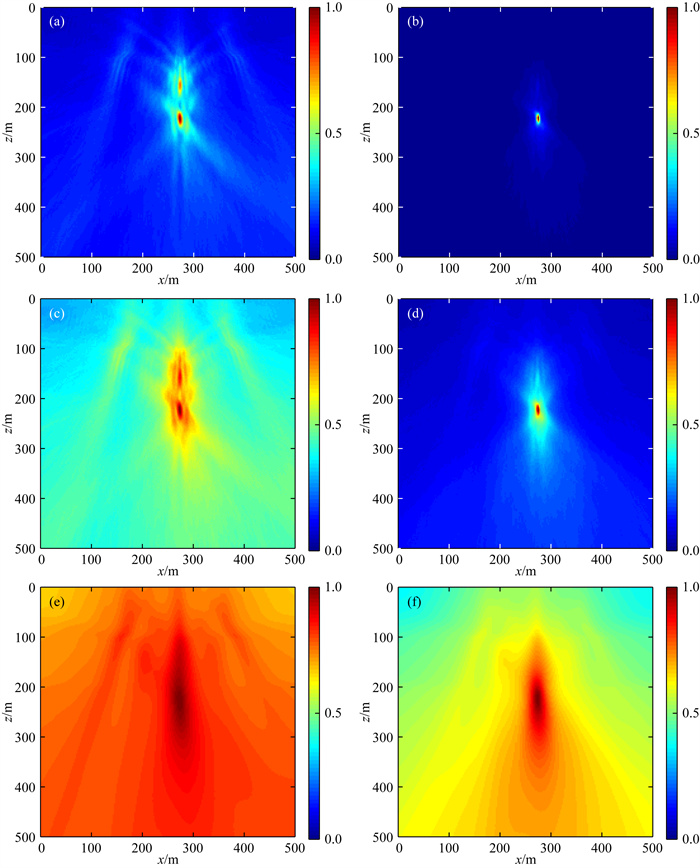

    图 5

    无噪声Vx分量的干涉成像结果

    Figure 5.

    Interferometric imaging results of the Vx component without noise

    图 6

    (a) 速度模型和震源-检波器阵列示意图;震源S1添加噪声后的(b)Vx分量波形和(c)Vz分量波形

    Figure 6.

    (a) Sketch of velocity model and source-receiver array; (b) Vx component waveforms and (c) Vz component waveforms of S1 with noise

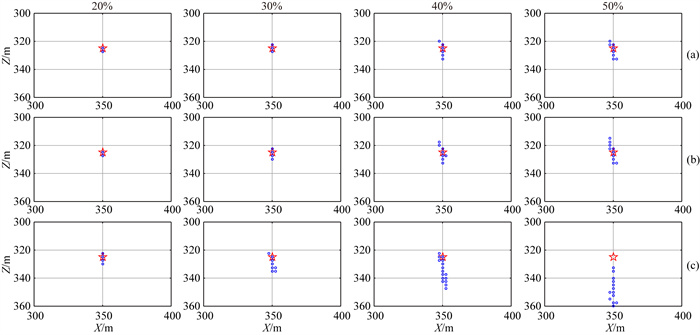

    图 7

    不同噪声条件下的100次蒙特卡洛模拟的定位结果

    Figure 7.

    Location results of Monte Carlo simulation by 100 times under different noise conditions

    图 8

    三种方法的成像剖面中过震源位置的归一化成像值曲线对比

    Figure 8.

    Comparison of normalized imaging value curves passing through the source location in imaging profiles of three methods

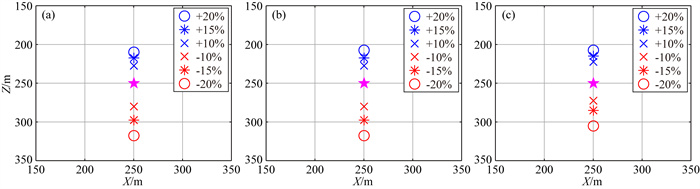

    图 9

    三种方法在六种速度模型下的定位结果对比(品红色五角星为正确震源位置)

    Figure 9.

    Comparison of location results of three methods under six velocity models (The magenta pentagram represents the correct source location)

    图 10

    三种方法利用不同震相组合的成像结果

    Figure 10.

    Imaging results of three methods using different seismic phase combinations

    图 11

    三种方法对100个强微地震事件在(a)E-N平面和(b)E-Z平面内的定位结果和100个弱微地震事件在(c)E-N平面和(d)E-Z平面内的定位结果

    Figure 11.

    Location results of 100 strong microseismic events in (a) E-N plane and (b) E-Z plane and 100 weak microseismic events in (c) E-N plane and (d) E-Z plane obtained by three methods

    图 12

    三种方法对序号为10的弱微地震事件的成像结果(白色五角星为走时反演定位结果)

    Figure 12.

    Imaging results of No.10 weak microseismic event obtained by three methods (The white pentagram represents the source location obtained by travel time inversion)

    图 13

    (a) 序号为90的强微地震事件的Vz分量波形图;互相关相位加权成像法分别对红色实线框和红色虚线框内波形得到的关于P波成像的垂直剖面图(b)和(c)(白色五角星为走时反演定位结果).

    Figure 13.

    (a) Waveforms of Vz component of the No. 90 strong microseismic event; (b) and (c) Vertical imaging profiles for P-waves in the red solid line border and red dashed line border obtained by CCPW (The white pentagram represents the source location obtained by travel time inversion).

    图 14

    序号为90的强微地震事件的(a)Vx分量;(b) 经STA/LTA处理后的水平分量;(c) Vz分量;(d) 经STA/LTA处理后的Vz分量

    Figure 14.

    (a) Vx component; (b) horizontal component processed by STA/LTA; (c) Vz component; (d) Vz component processed by STA/LTA of the No.90 strong microseismic event

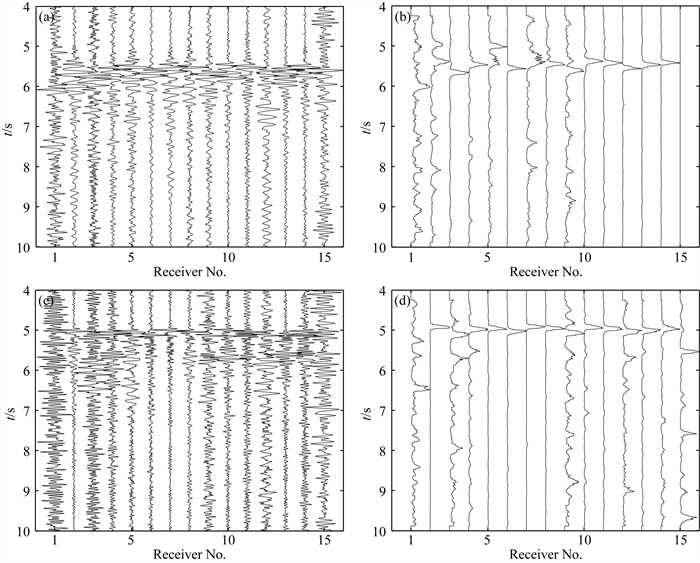

    图 15

    序号为10的弱微地震事件的(a) Vx分量;(b) 经STA/LTA处理后的水平分量;(c) Vz分量;(d) 经STA/LTA处理后的Vz分量

    Figure 15.

    (a) Vx component; (b) horizontal component processed by STA/LTA; (c) Vz component and (d) Vz component processed by STA/LTA of the No.10 weak microseismic event

    表 1

    互相关相位加权成像法极性校正原理

    Table 1.

    Polarity correlation principle of CCPW

    原始波形振幅 对应逐采样点归一化解析信号中的值 二者的加权乘积
    a exp(iϕ) a·exp(iϕ)
    a exp(i(ϕ+π)) a·exp(i(ϕ+π))=a·exp(iϕ)
    下载: 导出CSV

    表 2

    二维均匀模型参数

    Table 2.

    Parameters of two-dimensional homogeneous model

    参数名称/单位 数值
    网格点数 201×201
    网格间距/m 2.5
    时间采样间隔/ms 0.5
    纵波速度/(m·s-1) 3000
    纵、横波速度比 1.67
    密度/(kg·m-3) 3000
    震源频率/Hz 60
    检波器个数 51
    下载: 导出CSV

    表 3

    六种速度模型下三种方法定位结果的绝对误差对比(单位:m)

    Table 3.

    Absolute error comparison of location results of three methods under six-velocity models (Unit: m)

    速度误差 互相关相位加权成像法 基于绝对值干涉成像法 基于STA/LTA干涉成像法
    +20% 0, -40 0, -42.5 0, -42.5
    +15% 0, -32.5 0, -32.5 0, -35
    +10% 0, -22.5 0, -22.5 0, -27.5
    -10% 0, +30 0, +30 0, +22.5
    -15% 0, +47.5 0, +47.5 0, +35
    -20% 0, +67.5 0, +67.5 0, +55
    下载: 导出CSV

    表 4

    三种方法性能总结

    Table 4.

    Summary of the performance of three methods

    评估指标 互相关相位加权成像法 基于绝对值干涉成像法 基于STA/LTA干涉成像法
    抗噪性 较差 最差
    分辨率 较差 最差
    受速度模型误差影响程度
    P波定位时受续至S波等相干波影响程度
    下载: 导出CSV
  •
