Integrated InSAR and strain tensor to estimate three-dimensional coseismic displacements associated with the 2016 MW7.0 Kumamoto earthquake
-
摘要:
利用合成孔径雷达（Synthetic Aperture Radar，SAR）影像提取与地质活动相关的三维地表形变场，对深入理解地质灾害的形成机制及其潜在灾害风险评估非常重要.目前，利用SAR影像的同震三维形变场提取主要利用单个像素点的多次观测构建观测方程，然后基于加权最小二乘（Weighted Least Squares，WLS）方法分解从而获得同震三维形变场，因此该方法缺乏对相邻像素点空间相关性的约束.考虑相邻同震位移点的应力连续性，研究学者提出了顾及大地测量应变张量和卫星形变观测的SAR同震三维形变场方法（Extended Simultaneous and Integrated Strain Tensor Estimation from geodetic and satellite deformation Measurements，ESISTEM）.本文以2016年MW7.0熊本地震为例，收集了覆盖此次地震的ALOS-2卫星升降轨影像，利用传统差分InSAR（DInSAR）方法和子孔径雷达干涉测量（Multiple Aperture InSAR，MAI）方法分别对升降轨SAR影像对进行处理，得到视线向（LOS）形变和方位向形变，最后利用ESISTEM方法获取此次地震的三维同震形变场.此外，利用GPS和野外考察观测对本文的三维形变场结果进行结果精度分析.研究结果表明，与传统WLS方法相比，ESISTEM方法不仅能有效抑制奇异像素点对形变结果的干扰，同时对近断层的失相干信号能进行较好的恢复，更有助于解释地表破裂区的地震形变特征和掌握地震发生机制.本文确定的三维同震形变场结果显示主形变区发生在Futagawa断层中部和Hinagu断层最北端，最大水平位移为2 m，抬升为0.55 m.断层破裂以NE-SW走向的右旋走滑为主兼有部分正断成分.应变张量分析表明发震断层处受到了明显的收缩力和剪切力的作用.
Abstract:The three-dimensional (3D) surface displacements associated with different geohazard phenomenon derived from Synthetic Aperture Radar (SAR) images significantly improve our ability to understand their formation mechanisms and assess the potential disaster risk. At present, the most common approach for 3D coseismic deformation field derived from SAR images is using the Weighted Least Squares (WLS) method to resolve the 3D components based on more than three observations at each pixel point. However, this approach will be no constraints on the spatial correlation between the adjacent pixel points. Therefore, a new approach, i.e., the Extended Simultaneous and Integrated Strain Tensor Estimation from geodetic and satellite deformation Measurements (ESISTEM), has been proposed to reveal the 3D coseismic displacement by adding a constraint equation of stress continuity between the adjacent pixel points. In this study, we collect both the ascending and descending ALOS-2 images for the 2016 Kumamoto earthquake sequence, and then generate the displacement both in line of sight (LOS) and azimuth direction by using the traditional differential InSAR (DInSAR) method and the Multiple Aperture InSAR (MAI) method, respectively. After that, we utilize the ESISTEM method to recover 3D coseismic deformation field for this event. In addition, we verify the uncertainty of the 3D displacements with GPS and field work observations, respectively. In compare to the traditional WLS approach, our results show the ESISTEM approach can not only effectively reduce the disturbance of singular displacement, and recover the displacement in incoherence region, which is helpful to the coseismic 3D displacement characteristics analyzed. Our final 3D displacement map demonstrates that the main deformation zone occurs in the central section of the Futagawa fault and the northernmost part of the Hinagu fault, and the maximum horizontal and uplift displacement are 2 m and 0.55 m, respectively. The subsurface rupture is dominated by NE-SW-trending dextral strike-slip with minor normal-slip component. The strain tensor indicates that the seismic area sustains an obvious contraction and shear forces.
-
Key words:
- InSAR /
- Three-dimensional coseismic displacements /
- Strain Tensor /
- Kumamoto earthquake
-
-

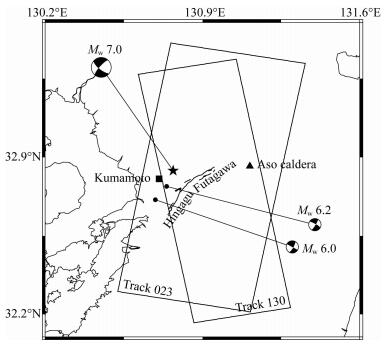

图 1
2016年熊本地震序列的地形图
Figure 1.
Topographic map of the 2016 Kumamoto earthquake sequence
图 2
(a) 九州岛地区GPS速度场和(b)九州岛地区无旋转GPS速度场
Figure 2.
GPS velocity field (a) and after removing the whole rotating component (b) in Kyushu island area

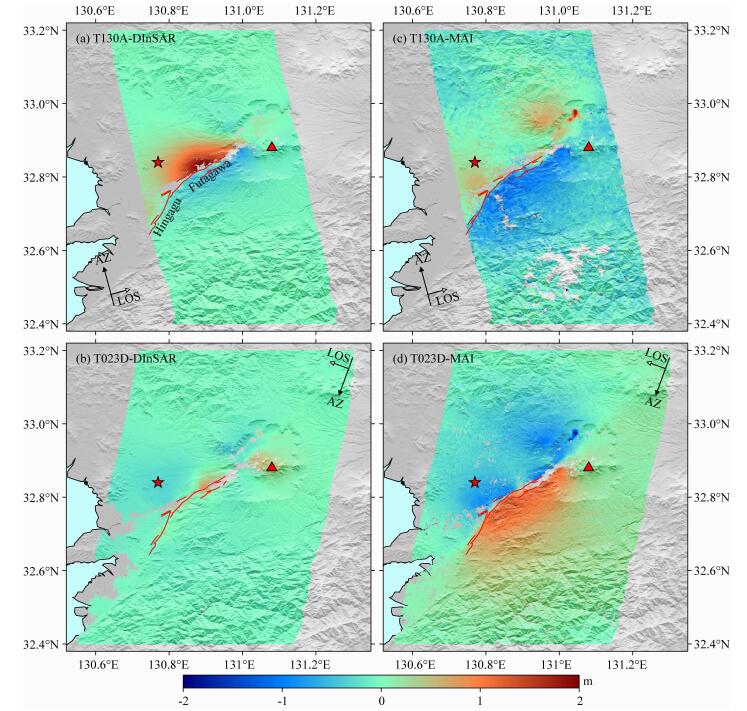

图 3
熊本地震序列的同震LOS向(左列)和方位向(右列)形变场
Figure 3.
The coseismic displacements of the Kumamoto earthquake sequence in the LOS direction (left) and azimuth direction (right)

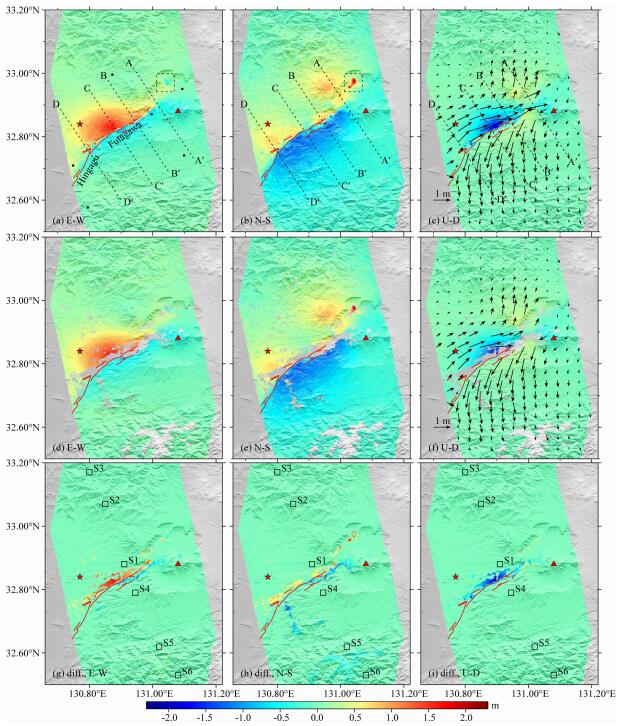

图 4
熊本地震序列的三维形变场和残差
Figure 4.
The three-dimensional displacements and residuals of the Kumamoto earthquake sequence

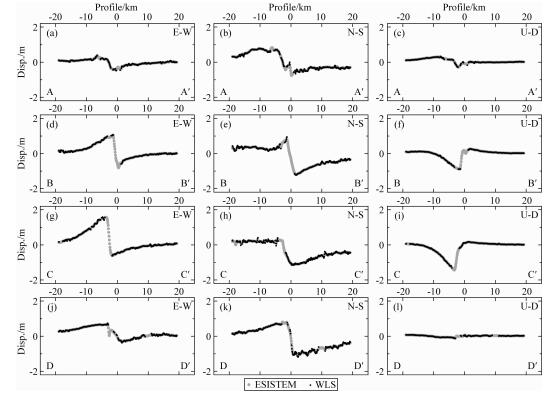

图 5
ESISTEM和WLS的三维形变场分别沿着A-A′、B-B′、C-C′和D-D′剖面的比较结果
Figure 5.
Comparison of the three-dimensional displacements in the three different components (E-W, N-S, U-D) along the profiles A-A′, B-B′, C-C′, D-D′ derived from the ESISTEM (gray points) and WLS (black points) methods

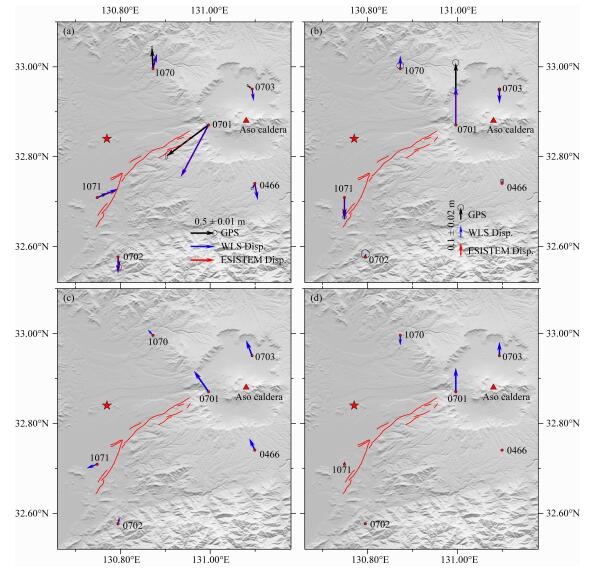

图 6
InSAR测量和GPS测量在GPS站点上的同震三维位移比较
Figure 6.
Comparison of three-dimensional coseismic displacements between InSAR measurements and GPS measurements at the corresponding GPS sites

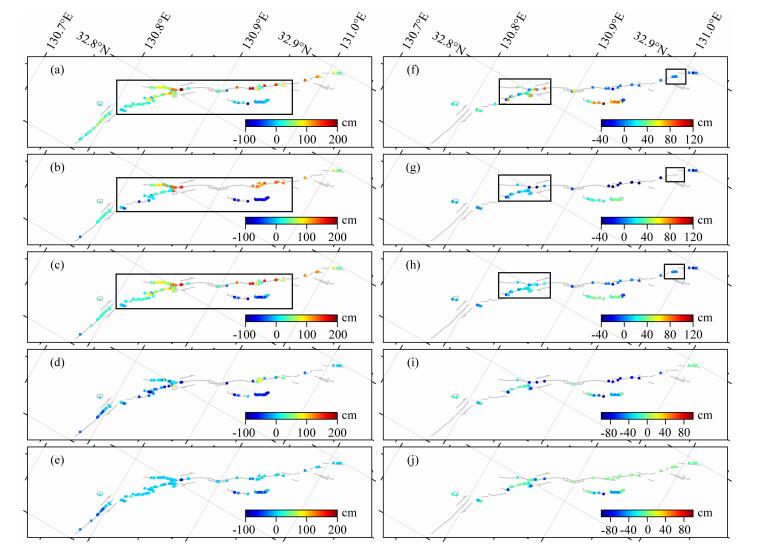

图 7
Futagawa-Hinagu断层带(灰线)表面破裂的水平位错和垂直位错
Figure 7.
Horizontal and vertical offsets of surface rupture along the Futagawa-Hinagu fault systems (gray lines)
表 1
本次研究所采用的ALOS-2卫星数据
Table 1.
The ALOS-2 data used in this study
轨道 轨道号 时间 方位角(°) 入射角(°) 垂直基线(m) 时间基线(d) 升轨 130 2015-12-03—2016-04-21 -10.6 33 -150.6 140 降轨 023 2016-03-07—2016-04-18 190.3 36 -123.8 42
下载: 导出CSV
表 2
同震三维形变场残差比较
Table 2.
Residual comparison of three-dimensional coseismic displacements
位置 标准差(cm) 均值(cm) 东西向 南北向 垂直向 东西向 南北向 垂直向 S1 0.35 0.50 0.21 0.00 0.02 0.00 S2 0.42 0.87 0.14 0.00 0.02 0.00 S3 0.44 0.86 0.16 0.00 0.02 0.00 S4 0.35 0.64 0.12 0.00 0.01 0.00 S5 0.58 1.08 0.18 0.00 0.05 0.00 S6 0.75 1.35 0.23 0.00 0.05 -0.01
下载: 导出CSV
表 3
与GPS和野外调查测量对比的三维位移精度分析(单位：cm)
Table 3.
Accuracy analyzed for three-dimensional displacement component compared with GPS and field work measurement (unit: cm)
方法 GPS RMSEs 野外调查RMSEs 东西向 南北向 垂直向 水平向 垂直向 WLS 14.26 20.92 8.84 46.33 47.11 ESISTEM 14.23 19.81 8.54 18.94 25.65
下载: 导出CSV
-
