The interdependent relationship between the intensity of the South Asia High and the vertical velocity in its adjacent region
-
摘要:
利用ERA-Interim 1979—2018年6—8月的再分析资料，通过相关分析、信息流、合成分析等方法研究了南亚高压强度与其邻近地区垂直速度的相互依赖关系.结果表明：南亚高压在上对流层-下平流层区域具有上冷下暖的热力结构，冷、暖中心分别在70 hPa和250 hPa，以这两层的温度异常建立的温差指数可以反映南亚高压的强度.在不同时间尺度上，南亚高压强度与其邻近地区垂直速度的相互依赖关系是不同的.在月时间尺度上，南亚高压强度通过动力作用影响邻近地区的垂直速度，南亚高压增强（减弱）时，其东部地区的上升运动和西部地区的下沉运动同步增强（减弱）；在日时间尺度上，南亚高压中部的垂直速度通过热力强迫影响南亚高压强度，南亚高压中部地区上升运动增强（减弱）时，南亚高压增强（减弱）且位置偏西（偏东）.
Abstract:Using ERA-Interim reanalysis data in June, July and August (JJA) from 1979 to 2018, the interdependent relationship between the intensity of the South Asia High (SAH) and vertical velocity in its adjacent region was studied by correlation analysis, information flow and composite analysis. The results show that a thermal structure with upper cold anomaly and lower warm anomaly is located at upper troposphere-lower stratosphere (UTLS) region in the SAH. The cold and warm centers are situated at 70 hPa and 250 hPa respectively. The temperature difference index based on the temperature anomalies in these two layers can reflect the intensity of the SAH. The interdependent relationship between the intensity of the SAH and vertical velocity is variable on different time scale. On monthly time scale, the intensity of the SAH influences the vertical velocity in its adjacent areas through dynamic effect. When the SAH increases (decreases), the upwelling in the East and the subsidence in the West are strengthened (weakened) simultaneously. On daily time scale, the vertical velocity in the central region of the SAH affects the intensity of the SAH by thermal forcing. When the ascending motion in the central region of the SAH increases (decreases), the SAH is strengthened (weakened) and migrates westward (eastward).
-
-

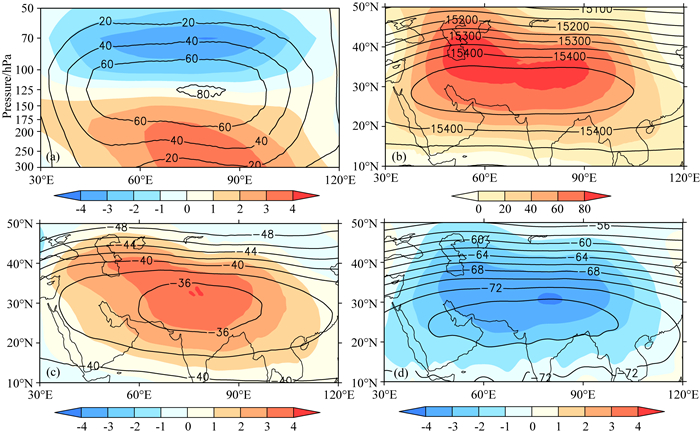

图 1
1979—2018年6—8月气候平均的气象要素分布
Figure 1.
The distributions of climatic meteorological factors in June, July and August (JJA) from 1979 to 2018

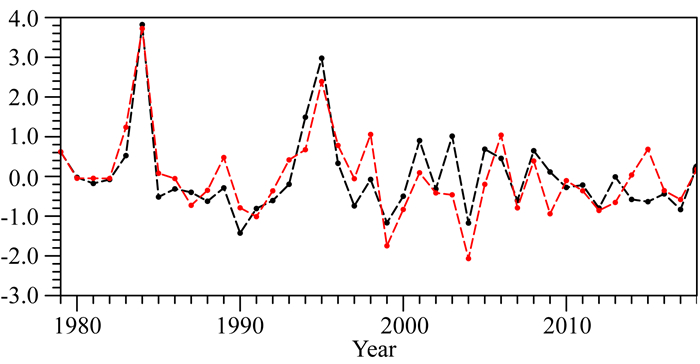

图 2
1979—2018年南亚高压的温差指数(黑色)和位势高度指数(红色)
Figure 2.
Temperature difference index (black) and geopotential height index (red) of the SAH from 1979 to 2018
图 3
1979—2018年6—8月200 hPa月时间尺度上的变量分布
Figure 3.
Distributions of variables on monthly time scale at 200 hPa in JJA from 1979 to 2018

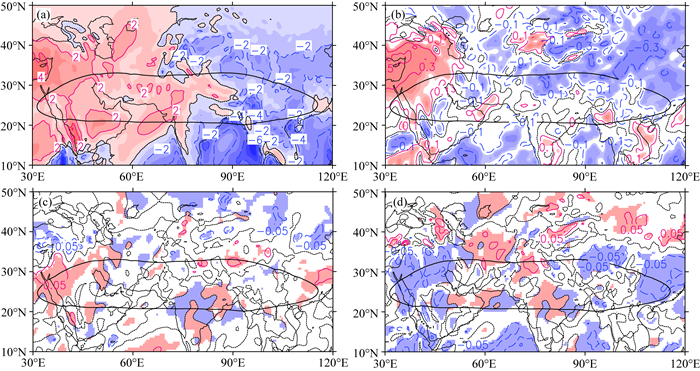

图 5
1979—2018年6—8月200 hPa日时间尺度上的变量分布
Figure 5.
Distributions of variables on daily time scale at 200 hPa in JJA from 1979 to 2018

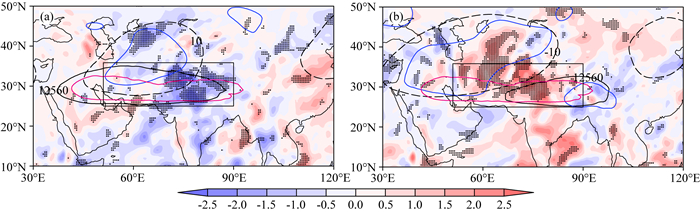

图 7
(a) 1979—2018年7月200 hPa关键区上升运动偏强年的合成:异常垂直速度(填色, 单位: 10-2 Pa·s-1, 打点区通过95%的信度检验), 12560 gpm特征等值线(黑色实线)和10 gpm异常等值线(黑色虚线, 蓝色实线包围区通过95%的信度检验).红色实线为气候12560 gpm等值线, 方框区为南亚高压中部关键区; (b)同(a), 但为关键区上升运动偏弱年的合成, 位势高度异常(黑色虚线)仅给出-10 gpm等值线
Figure 7.
(a) Composite analysis of stronger ascending motion in the key region at 200 hPa in July from 1979 to 2018: vertical velocity anomaly (shaded, unit: 10-2 Pa·s-1, stippled regions are significant at the 95% confidence level), the characteristic contour of 12560 gpm (black solid) and the anomalous contours of 10 gpm (black dashed, areas enclosed by blue solid contours indicate the values pass 95% confidence level). Red solid contour is the climatic 12560 gpm, the box represents the key area in the central of the SAH; (b) Same as (a), but for composite analysis of weaker ascending motion in the key region, the anomalous contours of -10 gpm (black dashed) are given
-
Bian J C, Yan R C, Chen H B, et al. 2011. Formation of the summertime ozone valley over the Tibetan Plateau:The Asian summer monsoon and air column variations. Advances in Atmospheric Sciences, 28(6):1318-1325, doi:10.1007/s00376-011-0174-9.
Chen B, Xu X D, Yang S, et al. 2012. On the characteristics of water vapor transport from atmosphere boundary layer to stratosphere over Tibetan Plateau regions in summer. Chinese Journal of Geophysics (in Chinese), 55(2):406-414, doi:10.6038/j.issn.0001-5733.2012.02.005.
Chen D, Strube C, Ern M, et al. 2019. Global analysis for periodic variations in gravity wave squared amplitudes and momentum fluxes in the middle atmosphere. Annales Geophysicae, 37(4):487-506, doi:10.5194/angeo-37-487-2019.
Duan A M, Wu G X. 2005. Role of the Tibetan Plateau thermal forcing in the summer climate patterns over subtropical Asia. Climate Dynamics, 24(7-8):793-807, doi:10.1007/s00382-004-0488-8.
Flohn H. 1957. Large-scale aspects of the "summer monsoon" in South and East Asia. Journal of the Meteorological Society of Japan, 35A:180-186. doi: 10.2151/jmsj1923.35A.0_180
Guo D, Wang P X, Zhou X J, et al. 2012. Dynamic effects of the South Asian High on the ozone valley over the Tibetan Plateau. Acta Meteorologica Sinica, 26(2):216-228, doi:10.1007/s13351-012-0207-2.
Guo D, Su Y C, Zhou X J, et al. 2017. Evaluation of the trend uncertainty in summer ozone valley over the Tibetan Plateau in three reanalysis datasets. Journal Meteorological Research, 31(2):431-437, doi:10.1007/s13351-017-6058-x.
Guo D, Shen P, Shi C, et al. 2020. Calculation of the vertical velocity in the Asian Summer Monsoon anticyclone region using the thermodynamic method with in situ and satellite data. Frontiers in Earth Science, 8:96, doi:10.3389/feart.2020.00096.
Hu D Z, Guan Z Y, Tian W S, et al. 2018. Recent strengthening of the stratospheric Arctic vortex response to warming in the central North Pacific. Nature Communications, 9(1):1697, doi:10.1038/s41467-018-04138-3.
Hu J G, Zhou B, Tao L. 2010. Comparative analysis of the relation between characteristic parameters of South Asia high and summer precipitation of China. Meteorological Monthly (in Chinese), 36(4):51-56. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qx201004009
Hu J G, Li T, Xu H M, et al. 2017. Lessened response of boreal winter stratospheric polar vortex to El Niño in recent decades. Climate Dynamics, 49(1-2):263-278. doi: 10.1007/s00382-016-3340-z
Li Z K, Qin H, Guo D, et al. 2017. Impact of ozone valley over the Tibetan Plateau on the South Asian high in CAM5. Advances in Meteorology, 9383495, doi:10.1155/2017/9383495.
Liang X S. 2008. Information flow within stochastic dynamical systems. Physical Review E, 78(3Pt1):031113, doi:10.1103/PhysRevE.78.031113.
Liang X S. 2014. Unraveling the cause-effect relation between time series. Physical Review E, 90(5):052150, doi:10.1103/PhysRevE.90.052150.
Liu B Q, He J H, Wang L J. 2009. Characteristics of the South Asia high establishment processes above the Indo-China Peninsula from April to May and their possible mechanism. Chinese Journal of Atmospheric Sciences (in Chinese), 33(6):1319-1332, doi:10.3878/j.issn.1006-9895.2009.06.1.
Liu Y M, Wu G X, Liu H, et al. 1999. The effect of spatially nonuniform heating on the formation and variation of subtropical high Part Ⅲ. Condensation heating and South Asia high and western Pacific subtropical high. Acta Meteorologica Sinica (in Chinese), 57(5):525-538, doi:10.11676/qxxb1999.051.
Mason R B, Anderson C E. 1963. The development and decay of the 100-MB. Summertime anticyclone over southern Asia. Monthly Weather Review, 91(1):3-12. doi: 10.1175/1520-0493(1963)091<0003:TDADOT>2.3.CO;2
Peng L X, Sun Z B, Chen H S, et al. 2016. Analysis on the multi-center structure of summer South Asia high and its thermal influence factor. Chinese Journal of Atmospheric Sciences (in Chinese), 40(5):1089-1106, doi:10.3878/j.issn.1006-9895.1601.14310.
Qian Y F, Zhang Q, Yao Y H, et al. 2002. Seasonal variation and heat preference of the South Asia high. Advances in Atmospheric Sciences, 19(5):821-836, doi:10.1007/s00376-002-0047-3.
Qin H, Guo D, Shi C H, et al. 2018. The interaction between variations of South Asia high and ozone in the adjacent regions. Chinese Journal of Atmospheric Sciences (in Chinese), 42(2):421-434, doi:10.3878/j.issn.1006-9895.1710.17159.
Qu X, Huang G. 2012. An enhanced influence of tropical Indian Ocean on the South Asia high after the late 1970s. Journal of Climate, 25:6930-6941, doi:10.1175/JCLI-D-11-00696.1.
Rao J, Ren R C. 2018. Varying stratospheric responses to tropical Atlantic SST forcing from early to late winter. Climate Dynamics, 51(5-6):2079-2096, doi:10.1007/s00382-017-3998-x.
Reiter E R, Gao D Y. 1982. Heating of the Tibet Plateau and movements of the South Asian High during spring. Monthly Weather Review, 110(11):1694-1711. doi: 10.1175/1520-0493(1982)110<1694:HOTTPA>2.0.CO;2
Shi C H, Chang S J, Guo D, et al. 2018. Exploring the relationship between the cloud-top and tropopause height in boreal summer over the Tibetan Plateau and its adjacent region. Atmospheric and Oceanic Science Letters, 11(2):173-179. doi: 10.1080/16742834.2018.1438738
Tao S, Chen L. 1987. A review of recent research on the East Asian summer monsoon in China.//Chang C P, Krishnamurti T N. Monsoon Meteorology. Oxford: Oxford University Press, 60-92.
Wang L J, Guo S H, Ge J. 2016. The timing of South-Asian high establishment and its relation to tropical Asian summer monsoon and precipitation over east-central China in summer. Journal of Tropical Meteorology, 22(2):136-144. http://en.cnki.com.cn/Article_en/CJFDTOTAL-RDQX201401014.htm
Wang L J, Dai A G, Guo S H, et al. 2017. Establishment of the South Asian high over the Indo-China Peninsula during late spring to summer. Advances in Atmospheric Sciences, 34(2):169-180. doi: 10.1007/s00376-016-6061-7
Wang W G, Zuo Q J, Wang H Y, et al. 2010. The structure of O3/H2O mixing relationships in the tropopause transition layer in middle and high latitudes of the Northern Hemisphere. Chinese Journal of Geophysics (in Chinese), 53(12):2805-2816, doi:10.3969/j.issn.0001-5733.2010.12.003.
Wei F Y. 2007. Modern Climate Statistical Diagnosis and Prediction Technology (in Chinese). 2nd ed. Beijing:China Meteorological Press.
Wu G X, Li W P, Guo H, et al. 1997. Sensible heat driven air-pump over the Tibetan Plateau and its impacts on the Asian summer monsoon.//Ye D Z. Collections on the Memory of Zhao J Z (in Chinese). Beijing: Science Press, 116-120.
Yang W Y, Ye D Z, Wu G X. 1992. The influence of the Tibetan Plateau on the summer thermal and circulation fields over East Asia, Ⅲ:Physical mechanisms of maintaining the stable circulation fields. Chinese Journal of Atmospheric Sciences (in Chinese), 16(4):409-426.
Ye D Z, Luo S W, Zhu B Z. 1957. The wind structure and heat balance in the lower troposphere over Tibetan Plateau and its surrounding. Acta Meteorologica Sinica (in Chinese), 28(2):108-121, doi:10.11676/qxxb1957.010.
Ye D Z, Zhang J Q. 1974. Simulation experiment of the impact of the Tibetan Plateau heating on the East Asian summer monsoon. Scientia Sinica (in Chinese), (3):301-320.
Ye D Z. 1981. Some characteristics of the summer circulation over the Qinghai-Xizang (Tibet) Plateau and its neighborhood. Bulletin of the American Meteorological Society, 62(1):14-19. doi: 10.1175/1520-0477(1981)062<0014:SCOTSC>2.0.CO;2
Ye D Z, Wu G X. 1998. The role of the heat source of the Tibetan Plateau in the general circulation. Meteorology and Atmospheric Physics, 67:181-198. doi: 10.1007/BF01277509
Yu Y Y, Cai M, Ren R C, et al. 2018. A closer look at the relationships between meridional mass circulation pulses in the stratosphere and cold air outbreak patterns in northern hemispheric winter. Climate Dynamics, 51:3125-3143, doi:10.1007/s00382-018-4069-7.
Yu Y Y, Ren R C. 2019. Understanding the variation of stratosphere-troposphere coupling during stratospheric northern annular mode events from a mass circulation perspective. Climate Dynamics, 53:5141-5164, doi:10.1007/s00382-019-04675-7.
Zeng G, Bo Z K, Ni D H, et al. 2013. Comparison analysis of South Asia high intensity variation and its relation to SSTA in atmospheric multi-reanalysis data. Transactions of Atmospheric Sciences (in Chinese), 36(5):577-585, doi:10.3969/j.issn.1674-7097.2013.05.008.
Zhang J K, Tian W S, Chipperfield M P, et al. 2016. Persistent shift of the Arctic polar vortex towards the Eurasian continent in recent decades. Nature Climate Change, 6(12):1094, doi:10.1038/NCLIMATE3136.
Zhang J K, Tian W S, Xie F, et al. 2018. Stratospheric ozone loss over the Eurasian continent induced by the polar vortex shift. Nature Communications, 9(1):206, doi:10.1038/s41467-017-02565-2.
Zhang Q, Qian Y F, Zhang X H. 2000. Interannual and interdecadal variations of the South Asia high. Chinese Journal of Atmospheric Sciences (in Chinese), 24(1):67-78, doi:10.3878/j.issn.1006-9895.2000.01.07.
Zhang Q, Wu G X, Qian Y F. 2002. The bimodality of the 100 hPa South Asia high and its relationship to the climate anomaly over East Asia in summer. Journal of the Meteorological Society of Japan, 80(4):733-744. doi: 10.2151/jmsj.80.733
Zhou H. 2014. Relationships between summer South Asia high and both atmospheric circulation in northern hemisphere and precipitation over China[Master's thesis] (in Chinese). Nanjing: Nanjing University of Information Science & Technology.
Zhou R J, Chen Y J. 2005. Ozone variations over the Tibetan and Iranian Plateaus and their relationship with the South Asia High. Journal of University of Science and Technology of China (in Chinese), 35(6):899-908, doi:10.3969/j.issn.0253-2778.2005.06.027.
Zou H. 1996. Seasonal variation and trends of TOMS ozone over Tibet. Geophysical Research Letters, 23(9):1029-1032, doi:10.1029/96GL00767.
陈斌, 徐祥德, 杨帅等. 2012.夏季青藏高原地区近地层水汽进入平流层的特征分析.地球物理学报, 55(2):406-414, doi:10.6038/j.issn.0001-5733.2012.02.005. http://www.geophy.cn/CN/abstract/abstract8416.shtml
胡景高, 周兵, 陶丽. 2010.南亚高压特征参数与我国夏季降水的关系分析.气象, 36(4):51-56. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qx201004009
刘伯奇, 何金海, 王黎娟. 2009. 4-5月南亚高压在中南半岛上空建立过程特征及其可能机制.大气科学, 33(6):1319-1332, doi:10.3878/j.issn.1006-9895.2009.06.1.
刘屹岷, 吴国雄, 刘辉等. 1999.空间非均匀加热对副热带高压形成和变异的影响Ⅲ:凝结潜热加热与南亚高压及西太平洋副高.气象学报, 57(5):525-538, doi:10.11676/qxxb1999.051.
彭丽霞, 孙照勃, 陈海山等. 2016.夏季南亚高压多中心特征及其热力影响因子分析.大气科学, 40(5):1089-1106, doi:10.3878/j.issn.1006-9895.1601.14310.
覃皓, 郭栋, 施春华等. 2018.南亚高压与邻近地区臭氧变化的相互作用.大气科学, 42(2):421-434, doi:10.3878/j.issn.1006-9895.1710.17159.
王卫国, 左群杰, 王颢樾等. 2010.北半球中高纬度对流层顶转换层中O3/H2O混合关系的结构形态.地球物理学报, 53(12):2805-2816, doi:10.3969/j.issn.0001-5733.2010.12.003. http://www.geophy.cn/CN/abstract/abstract3436.shtml
魏凤英. 2007.现代气候统计诊断与预测技术. 2版.北京:气象出版社.
吴国雄, 李伟平, 郭华等. 1997.青藏高原感热气泵和亚洲夏季风.//叶笃正.赵九章诞辰九十周年纪念文集.北京: 科学出版社, 116-120.
杨伟愚, 叶笃正, 吴国雄. 1992.夏季青藏高原热力场和环流场的诊断分析Ⅲ:环流场稳定维持的物理机制.大气科学, 16(4):409-426. http://www.cnki.com.cn/Article/CJFDTotal-DQXK199204003.htm
叶笃正, 罗四维, 朱抱真. 1957.西藏高原及其附近的流场结构和对流层大气的热量平衡.气象学报, 28(2):108-121. http://www.cnki.com.cn/Article/CJFDTotal-QXXB195702002.htm
叶笃正, 张捷迁. 1974.青藏高原加热作用对夏季东亚大气环流影响的初步模拟实验.中国科学, (3):301-320. http://www.cnki.com.cn/Article/CJFD1979-JAXK197403009.htm
曾刚, 伯忠凯, 倪东鸿等. 2013.多套大气再分析资料的南亚高压强度变化特征及其与海表温度异常关系的比较分析.大气科学学报, 36(5):577-585, doi:10.3969/j.issn.1674-7097.2013.05.008.
张琼, 钱永甫, 张学洪. 2000.南亚高压的年际和年代际变化.大气科学, 24(1):67-78, doi:10.3878/j.issn.1006-9895.2000.01.07.
周航. 2014.夏季南亚高压与北半球大气环流和中国降水的关系[硕士论文].南京: 南京信息工程大学.
周任君, 陈月娟. 2005.青藏高原和伊朗高原上空臭氧变化特征及其与南亚高压的关系.中国科学技术大学学报, 35(6):899-908, doi:10.3969/j.issn.0253-2778.2005.06.027.
-
