Regional seismic body wave tomography and deep seismogenic environment beneath Zhangbo seismic belt and its adjacent area
-
摘要:
针对张渤地震带深部孕震构造环境和地幔岩浆对地壳底侵作用的问题, 本文充分收集了华北地区区域数字地震台网176个固定台站记录到的观测数据, 应用近震体波层析成像方法, 获得了华北地区地壳的P波三维速度结构和VP/VS波速比.依据VP/VS波速比能反映岩石物理性质和流变学特征的特性, 并结合人工地震测深剖面、大地电磁测深、地球化学等成果, 讨论了张渤地震带的孕震环境和动力学机制等问题.研究结果显示:张渤地震带强震位于高低速异常分界线附近或偏向高速体一侧, 震源体下方均存在广泛的低速异常分布, 据此推测这些低速异常的存在可能与流体有关, 同时也揭示出张渤地震带地震主要分布在上地壳, 从震源深度分布及地壳物性结构分析上地壳具有发震的构造背景, 也有发震的物性基础, 是一个易震层和多震层.张渤地震带地壳内部在20 km下方存在偏高的波速比特征, 这些可能反映了在该区域内中、上地壳幔源物质的侵入和热状态的岩体在横向上的变化, 可能是地幔岩浆长期底侵作用的结果.由于深部幔源物质的侵入, 使得地壳深部流体的供给量增加, 在地壳发震层下长期存在的流体会影响断裂带的结构, 降低断裂带的强度, 使区域应力场发生变化从而导致断裂带上应力的集中, 进而引发地震发生.
Abstract:This study focused on the deep seismo-tectonic environment and mantle magma underplating of the Zhangbo (Zhangjiakou-Bohai) seismic belt in North China.We fully collected the observational data recorded by 176 permanent stations of the regional digital seismograph network in North China, and applied the body wave tomography method to obtain the three-dimensional P-wave velocity structure and VP/VS of the crust in North China, which permits to infer the physical features and rheological characteristics of rock.Combined with the artificial seismic sounding profiles, magnetotelluric and geochemistry surveys, some issues such as the seismogenic environment and dynamic mechanism of the Zhangbo seismic belt are addressed.Results show that the major earthquakes in the Zhangbo seismic belt are typically located near the high-low-velocity anomaly boundary or on the high-velocity side.There are a wide range of low-velocity anomalies beneath the source bodies, which are speculated to be associated with the presence of fluid.Our results also reveal the major earthquakes in the Zhangbo seismic belt are mainly distributed in the upper crust.Based on the depth distribution of hypocenters and the physical structure analysis, we suggest the upper crust has tectonic setting and the physical properties for generation of earthquakes.There is a high velocities ratio below 20 km within the crust in the Zhangbo seismic which may reflect the intrusion of mantle-derived materials in the middle-upper crust and lateral thermal changes of the rock mass in the region, which could be related to long-term under plating of mantle magma.Due to the invasion of deep mantle source material and increase of the supply of deep fluid in the crust, the long-term existence of fluid under the crustal seismogenic layer will affect the structure of the fault zone and reduce its strength, thus changing the regional stress field, leading to the strain concentration on the fault zone, which triggers earthquakes in this area.
-
Key words:
- Seismic Travel time /
- Tomography /
- VP/VS wave velocity ratio /
- Zhangbo seismic belt
-
-
图 1
华北地区构造背景和沿张渤地震带位置(白色虚框)示意图(王椿镛等, 2016)
Figure 1.
Geological settings of North China and section position of Zhangbo seismic belt(White Dashed Box)

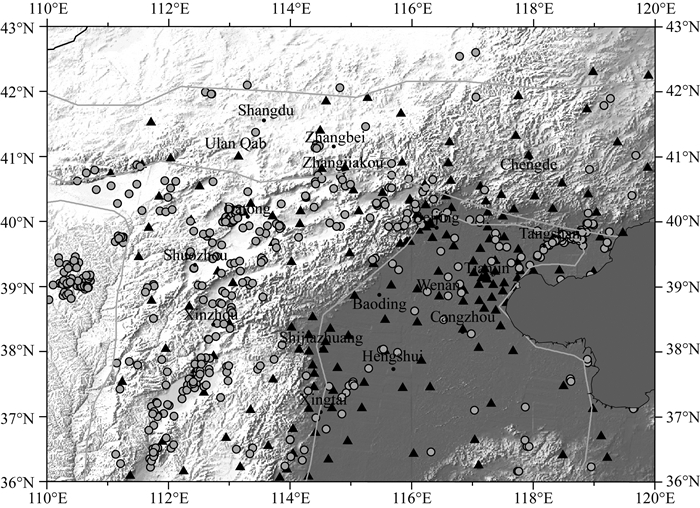

图 2
本研究所用的地震(灰色圆形)和台站分布图(黑三角)
Figure 2.
The earthquake epicenters (blue circles) and the distribution of stations (red triangles) used in the study

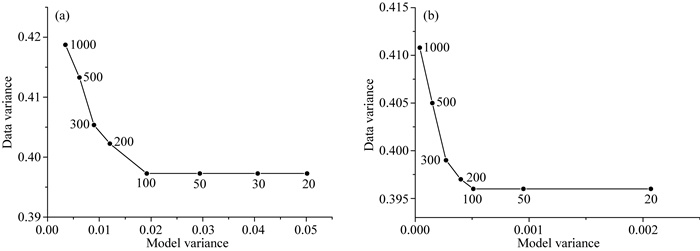

图 7
(a) P波trade-off曲线(damp=100);(b) VP/VS trade-off曲线(damp=100).
Figure 7.
The tradeoff curves for P wave (a) and VP/VS (b)

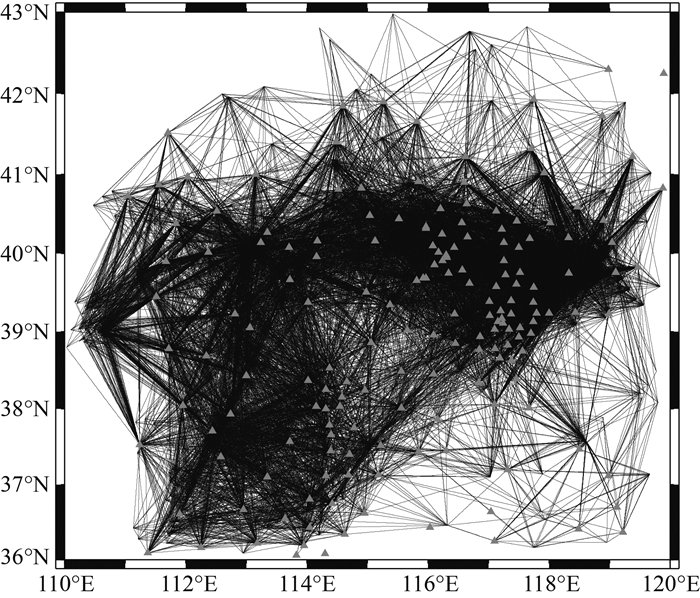

图 8
地震射线和地震台站(灰色三角)分布
Figure 8.
Ray distributionand distribution of stations (grey triangles) used in the study

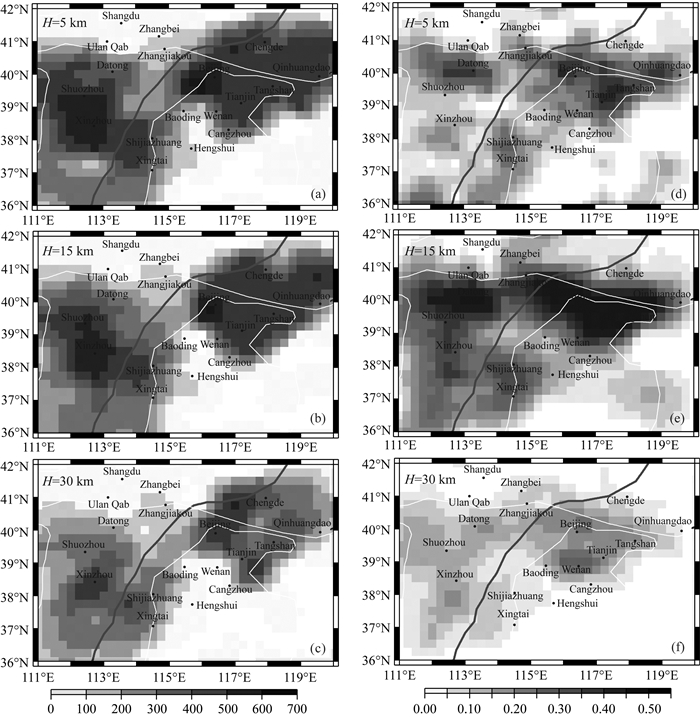

图 9
P波5 km, 15 km和30 km深度地震射线数分布(a, b, c)和反演结果的分辨率(d, e, f)
Figure 9.
Ray distribution (a, b, c) and resolution test (d, e, f) at 5 km, 15 km and 30 km depth

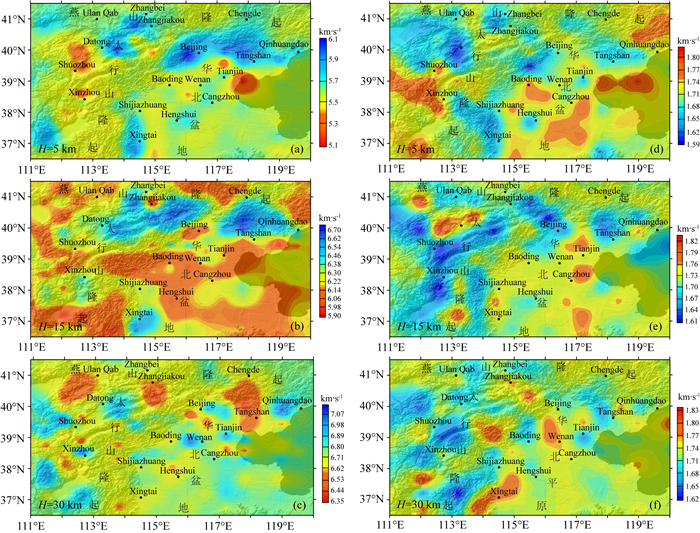

图 10
P波速度(a, b, c)和VP/VS波速比分布图(d, e, f)
Figure 10.
The horizontal slices of the tomography results:(a, b, c) and (d, e, f) is for P wave and VP/VS, respectively
-
Chen L, Wei Z G, Cheng C.2010a.Significant structural variations in the Central and Western North China craton and its implications for the craton destruction.Earth Science Frontiers (in Chinese), 17(1):212-228.
Chen L, Cheng C, Wei Z G.2010b.Contrasting structural features at different boundary areas of the North China Craton and its tectonic implications.Advances in Earth Science (in Chinese), 25(6):571-581. https://www.researchgate.net/publication/285698004_Contrasting_structural_features_at_different_boundary_areas_of_the_North_China_Craton_and_its_tectonic_implications
Ding Z F. 1999. The theory and method of regional seismic tomography[Ph. D. thesis] (in Chinese). Beijing: The Institute of Geophysics of China Earthquake Administration.
Duan Y H, Liu B J, Zhao J R, et al.2015.2-D P-Wave velocity structure of lithosphere in the North China tectonic zone:Constraints from the Yancheng-Baotou deep seismic profile.Science China Earth Sciences, 58(9):1577-1591, doi:10.1007/s11430-015-5081-y.
Duan Y H, Wang F Y, Zhang X K, et al.2016.Three-dimensional crustal velocity structure model of the middle-eastern North China Craton (HBCrust1.0).Science China Earth Sciences, 59(7):1477-1488, doi:10.1007/s11430-016-5301-0.
Eberhart-Phillips D, Reyners M, Chadwick M, et al.2005.Crustal heterogeneity and subduction processes:3-D VP, VP/VS and Q in the southern North Island, New Zealand.Geophysical Journal International, 162(1):270-288. doi: 10.1111/gji.2005.162.issue-1
Eberhart-Phillips D, Christensen D H, Brocher T M, et al.2006.Imaging the transition from Aleutian subduction to Yakutat collision in central Alaska, with local earthquakes and active source data.Journal of Geophysical Research:Solid Earth, 111(B11):B11303, doi:10.1029/2005JB004240.
Ge C, Zheng Y, Xiong X.2011.Study of crustal thickness and Poisson ratio of the north china Craton.Chinese Journal of Geophysics (in Chinese), 54(10):2538-2548, doi:10.3969/j.issn.0001-5733.2011.10.011.
Gu G X.1983.Catalog of Chinese Earthquakes (1831BC-1969AD) (in Chinese).Beijing:Science Press, 1-894.
Gu Y Z, Lin Y W, Zhang P R.2001.Application of gas geochemical method to prediction of seismic trend after mainshock.Earthquake (in Chinese), 21(2):102-104. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZN200102015.htm
Haslinger F, Kissling E.2001.Investigating effects of 3-D ray tracing methods in local earthquake tomography.Physics of the Earth and Planetary Interiors, 123(2-4):103-114. doi: 10.1016/S0031-9201(00)00204-1
Hickman S, Sibson R, Bruhn R.1995.Introduction to special section:Mechanical involvement of fluids in faulting.Journal of Geophysical Research:Solid Earth, 100(B7):12831-12840. doi: 10.1029/95JB01121
Huang J L, Zhao D P.2005.Fine three-dimensional P-wave velocity structure beneath the capital region and deep environment for the nucleation of strong earthquakes.Chinese Science Bulletin, 50(6):544-552. doi: 10.1007/BF02897479
Huang J L, Zhao D P.2009.Seismic imaging of the crust and upper mantle under Beijing and Surrounding regions.Physics of the Earth and Planetary Interiors, 173(3-4):330-348. doi: 10.1016/j.pepi.2009.01.015
Liu C Q, Jia S X.1986.Structural property of the crust and the upper mantle in the Tangshan earthquake region:A method of computing body wave theoretical seismogram and the result of analysis of 2-D inhomogeneous media (in Chinese).Acta Seismol Sin, 8:341-353. https://www.researchgate.net/scientific-contributions/83274762_M_Nafi_Toksoez
Ji S C, Wang Q, Yang W C.2009.Correlation between crustal thickness and Poisson's ratio in the North China Craton and its implication for lithospheric thinning.Acta Geologica Sinica (in Chinese), 83(3):324-330. https://www.researchgate.net/publication/289069434_Correlation_between_crustal_thickness_and_poisson%27s_ratio_in_the_North_China_craton_and_its_implication_for_lithospheric_thinning
Jia S X, Liu C Q.1996.VP/VS anomaly and earthquake in Xingtai epicentral region.Acta Geophysica Sinica (in Chinese), 39(S1):205-215.
Jia S X, Liu C Q.1996.VP/VS anomaly and earthquake in Xingtai epicentral region.Acta Geophysica Sinica (in Chinese), 39(S1):205-215.
Jia S X, Qi C, Wang F Y, et al.2005.Three-dimensional crustal gridded structure of the Capital area.Chinese Journal of Geophysics (in Chinese), 48(6):1316-1324. doi: 10.1002/cjg2.779
Jia S X, Zhang X K.2005.Crustal structure and comparison of different tectonic blocks in North China.Chinese Journal of Geophysics (in Chinese), 48(3):611-620. doi: 10.1002/cjg2.694
Li Y, Du J G, Wang F K, et al.2009.Geochemical characteristics of soil gas in Yanqing-Huailai basin, North China.Acta Seismologica Sinica (in Chinese), 31(1):82-91.
Liu B J, Qu G S, Sun M X, et al.2011a.Crustal structures and tectonics of Tangshan earthquake area:Results from deep seismic reflection profiling.Seismology and Geology (in Chinese), 33(4):901-912. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZDZ201104016.htm
Liu B J, Zhang X K, Chen Y, et al.2011b.Research on crustal structure and active fault in the Sanhe-Pinggu earthquake (M8.0) zone based on single-fold deep seismic reflection and shallow seismic reflection profiling.Chinese Journal of Geophysics (in Chinese), 54(5):1251-1259, doi:10.3969/j.issn.0001-5733.2011.05.014.
Liu G D, Gu Q, Shi S L, et al.1983.The electrical structure of the crust and upper mantle and its relationship with seismicity in the Beijing-Tianjin-Tangshan region and adjacent area.Acta Geophysica Sinica (in Chinese), 26(2):149-157.
Liu Z, Wang F Y, Zhang X K, et al.2015.Seismic structure of the lithosphere beneath Eastern North China craton:Results from long distance deep seismic sounding.Chinese Journal of Geophysics (in Chinese), 58(4):1145-1157, doi:10.6038/cjg20150405.
Luo Y, Chong J J, Ni S D, et al.2008.Moho depth and sedimentary thickness in Capital region.Chinese Journal of Geophysics (in Chinese), 51(4):1135-1145.
Qi G, Chen Q F.2015.Distribution of the crustal thickness and Poisson's ratio beneath the junction of the Taihangshan and the Yanshan tectonic belts.Chinese Journal of Geophysics (in Chinese), 58(9):3239-3250, doi:10.6038/cjg20150919.
Sibson R H.1992.Implications of fault-valve behaviour for rupture nucleation and recurrence.Tectonophysics, 211(1-4):283-293. doi: 10.1016/0040-1951(92)90065-E
Sun R M, Liu F T.1995.Crust structure and strong earthquake in Beijing, Tianjin, Tangshan area:Ⅰ.P wave velocity structure.Acta Geophysica Sinica (in Chinese), 38(5):599-607. https://www.researchgate.net/publication/294363932_Crust_structure_and_strong_earthquake_in_Beijing_Tianjing_Tangshan_area_I_P_wave_velocity_structure
Thurber C H.1983.Earthquake locations and three-dimensional crustal structure in the Coyote Lake area, central California.Journal of Geophysical Research:Solid Earth, 88(B10):8226-8236. doi: 10.1029/JB088iB10p08226
Wang C Y, Duan Y H, Wu Q J, et al.2016.Exploration on the deep tectonic environment of strong earthquakes in North China and relevant research findings.Acta Seismologica Sinica (in Chinese), 38(4):511-549, doi:10.11939/jass.2016.04.002.
Wang G C, Zhang Z C, Wang M, et al.2003.Geochemistry of Geothermal water and Noble gases in Yanhuai Basin, China.Seismology and Geology (in Chinese), 25(3):422-429. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZDZ200303006.htm
Wang J, Liu Q Y, Chen J H, et al.2009.The crustal thickness and Poisson's ratio beneath the Capital Circle Region.Chinese Journal of Geophysics (in Chinese), 52(1):57-66. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQWX200901009.htm
Wang S J, Wang F Y, Zhang J S, et al.2014.The P-wave velocity structure of the lithosphere of the North China Craton-Results from the Wendeng-Alxa Left Banner deep seismic sounding profile.Science China Earth Sciences, 57(9):2053-2063, doi:10.1007/s11430-014-4903-7.
Wu F Y, Lin J Q, Wilde S A, et al.2005.Nature and significance of the Early Cretaceous giant igneous event in eastern China.Earth and Planetary Science Letters, 233(1-2):103-119. doi: 10.1016/j.epsl.2005.02.019
Wu F Y, Xu Y G, Gao S, et al.2008.Lithospheric thinning and destruction of the North China Craton.Acta Petrologica Sinica (in Chinese), 24(6):1145-1174. http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSXB200806001.htm
Xu J, Song C Q, Chu Q Z.1998.Preliminary study on the seismotectonic characters of the Zhangjiakou-Penglai fault zone.Seismology and Geology (in Chinese), 20(2):146-154.
Xu W W, Zheng T Y.2005.Distribution of Poisson's ratios in the northwestern basin-mountain boundary of the Bohai Bay Basin.Chinese Journal of Geophysics (in Chinese), 48(5):1077-1084. http://www.oalib.com/paper/1567171
Zhang S C.1993.The feature of earthquake tectonics displayed by the seismicity pattern in North China.Earthquake Research in China (in Chinese), 9(3):223-228. http://www.sciencedirect.com/science/article/pii/S1367912012002301#!
Zhang X M, Diao G L, Shu P Y, et al.2004.Study on wave velocity ratio (VP/VS) of underground media in North China.Seismology and Geology (in Chinese), 26(2):306-317.
Zhao B, Gao Y, Shi Y T, et al.2011.Shear wave splitting in the crust in the intersection zone of the Zhangjiakou-Bohai seismic belt and Shanxi seismic belt.Chinese Journal of Geophysics, 54(6):1517-1527, doi:10.3969/j.issn.0001-5733.2011.06.011.
Zhao Y, Chen B, Zhang S H, et al.2010.Pre-Yanshanian geological events in the northern margin of the North China Craton and its adjacent areas.Geology in China (in Chinese), 37(4):900-915. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI201004009.htm
Zheng T Y, Zhao L, Zhu R X.2008.Insight into the geodynamics of cratonic reactivation from seismic analysis of the crust-mantle boundary.Geophysical Research Letters, 35(8):L08303, doi:10.1029/2008GL033439.
Zhu R X, Zheng T Y.2009.Destruction geodynamics of the North China Craton and its Paleoproterozoic plate tectonics.Chinese Science Bulletin, 54:3354, doi:10.1007/s11434-009-0451-5.
Zhu R X, Chen L, Wu F Y, et al.2011.Timing, scale and mechanism of the destruction of the North China Craton.Science China Earth Sciences, 54(6):789-797. doi: 10.1007/s11430-011-4203-4
Zhu R X, Xu Y G, Zhu G, et al.2012.Destruction of the North China Craton.Science China Earth Sciences, 55(10):1565-1587. doi: 10.1007/s11430-012-4516-y
陈凌, 危自根, 程骋.2010a.从华北克拉通中、西部结构的区域差异性探讨克拉通破坏.地学前缘, 17(1):212-228. http://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201001022.htm
陈凌, 程骋, 危自根.2010b.华北克拉通边界带区域深部结构的特征差异性及其构造意义.地球科学进展, 25(6):571-581. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-DZDQ201101001043.htm
丁志峰. 1999. 近震层析成像的理论及应用[博士论文]. 北京: 中国地震局地球物理研究所.
段永红, 刘保金, 赵金仁等.2015.华北构造区岩石圈二维P波速度结构特征:来自盐城-包头深地震测深剖面的约束.中国科学:地球科学, 45(8):1183-1197. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=jdxk201508008&dbname=CJFD&dbcode=CJFQ
段永红, 王夫运, 张先康等.2016.华北克拉通中东部地壳三维速度结构模型(HBCrust1.0).中国科学:地球科学, 46(6):845-856, doi:10.1360/N072015-00447.
葛粲, 郑勇, 熊熊.2011.华北地区地壳厚度与泊松比研究.地球物理学报, 54(10):2538-2548, doi:10.3969/j.issn.0001-5733.2011.10.011. http://www.geophy.cn//CN/abstract/abstract8194.shtml
顾功叙.1983.中国地震目录(公元前1831-公元1969年).北京:科学出版社, 1-894.
谷元珠, 林元武, 张培仁.2001.气体地球化学方法在震后趋势判断中的应用.地震, 21(2):102-104. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN199704012.htm
黄金莉, 赵大鹏.2005.首都圈地区地壳三维P波速度细结构与强震孕育的深部构造环境.科学通报, 50(4):348-355. http://www.cqvip.com/qk/94252X/200504/15171883.html
刘昌铨, 嘉世旭.1986.唐山地震区地壳上地幔结构特征:二维非均匀介质中理论地震图计算和结果分析.地震学报, 8:341-353. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXB198604000.htm
嵇少丞, 王茜, 杨文采.2009.华北克拉通泊松比与地壳厚度的关系及其大地构造意义.地质学报, 83(3):324-330. https://www.researchgate.net/profile/Shaocheng_Ji/publication/263449420_Correlation_between_crustal_thickness_and_Poisson%27s_ratio_and_implications_for_lithospheric_thinning_in_the_North_China_Craton/links/55c10ec908aed621de153eec/Correlation-between-crustal-thickness-and-Poissons-ratio-and-implications-for-lithospheric-thinning-in-the-North-China-Craton.pdf
嘉世旭, 刘昌铨.1996.邢台震源区波速比异常与地震的关系.地球物理学报, 39(S1):205-215. http://www.geophy.cn//CN/abstract/abstract7483.shtml
嘉世旭, 齐诚, 王夫运等.2005.首都圈地壳网格化三维结构.地球物理学报, 48(6):1316-1324. http://www.geophy.cn//CN/abstract/abstract812.shtml
嘉世旭, 张先康.2005.华北不同构造块体地壳结构及其对比研究.地球物理学报, 48(3):611-620. http://www.geophy.cn//CN/abstract/abstract719.shtml
李营, 杜建国, 王富宽等.2009.延怀盆地土壤气体地球化学特征.地震学报, 31(1):82-91. http://edu.wanfangdata.com.cn/Periodical/Detail/stxzz201407004
刘保金, 曲国胜, 孙铭心等.2011a.唐山地震区地壳结构和构造:深地震反射剖面结果.地震地质, 33(4):901-912. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzdz201104014
刘保金, 张先康, 陈颙等.2011b.三河-平谷8.0级地震区地壳结构和活动断裂研究—利用单次覆盖深反射和浅层地震剖面.地球物理学报, 54(5):1251-1259, doi:10.3969/j.issn.0001-5733.2011.05.014. http://www.geophy.cn//CN/abstract/abstract7958.shtml
刘国栋, 顾群, 史书林等.1983.京津唐渤和周围地区地壳上地幔电性结构及其与地震活动性的关系.地球物理学报, 26(2):149-157. http://www.geophy.cn//CN/abstract/abstract5186.shtml
刘志, 王夫运, 张先康等.2015.华北克拉通东部地壳与地幔盖层结构—长观测距深地震测深剖面结果.地球物理学报, 58(4):1145-1157, doi:10.6038/cjg20150405. http://www.geophy.cn//CN/abstract/abstract11380.shtml
罗艳, 崇加军, 倪四道等.2008.首都圈地区莫霍面起伏及沉积层厚度.地球物理学报, 52(4):1135-1145. http://www.geophy.cn//CN/abstract/abstract390.shtml
齐刚, 陈棋福.2015.太行山与燕山交汇部位的地壳厚度与泊松比分布特征.地球物理学报, 58(9):3239-3250, doi:10.6038/cjg20150919. http://www.geophy.cn//CN/abstract/abstract11800.shtml
孙若昧, 刘福田.1995.京津唐地区地壳结构与强震的发生—Ⅰ.P波速度结构.地球物理学报, 38(5):599-607. http://www.geophy.cn//CN/abstract/abstract4179.shtml
王椿镛, 段永红, 吴庆举等.2016.华北强烈地震深部构造环境的探测与研究.地震学报, 38(4):511-549, doi:10.11939/jass.2016.04.002.
王广才, 张作辰, 汪民等.2003.延怀盆地地下热水与稀有气体的地球化学特征.地震地质, 25(3):422-429. http://www.cqvip.com/QK/95728X/200303/8514058.html
王峻, 刘启元, 陈九辉等.2009.首都圈地区的地壳厚度及泊松比.地球物理学报, 52(1):57-66. http://www.geophy.cn//CN/abstract/abstract869.shtml
王帅军, 王夫运, 张建狮等.2014.华北克拉通岩石圈二维P波速度结构特征—文登-阿拉善左旗深地震测深剖面结果.中国科学:地球科学, 44(12):2697-2708. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=jdxk201412009&dbname=CJFD&dbcode=CJFQ
吴福元, 徐义刚, 高山等.2008.华北岩石圈减薄与克拉通破坏研究的主要学术争论.岩石学报, 24(6):1145-1174. https://www.researchgate.net/profile/Yi-Gang_Xu/publication/279703332_Lithosphere_thinning_and_destruction_of_the_North_China_Craton/links/569e3bb808ae950bd7a94ce2.pdf?origin=publication_list
徐杰, 宋长青, 楚全芝.1998.张家口-蓬莱断裂带地震构造特征的初步探讨.地震地质, 20(2):146-154. http://www.oalib.com/paper/4171259
许卫卫, 郑天愉.2005.渤海湾盆地北西盆山边界地区泊松比分布.地球物理学报, 48(5):1077-1084. http://www.geophy.cn//CN/abstract/abstract780.shtml
张四昌.1993.华北地区地震活动图象反映的地震构造特征.中国地震, 9(3):223-228. http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y305553
张学民, 刁桂苓, 束沛镒等.2004.华北地区地下介质波速比值(VP/VS)研究.地震地质, 26(2):306-317. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=dzdz200402011&dbname=CJFD&dbcode=CJFQ
赵博, 高原, 石玉涛, 等.2011.张家口-渤海地震带与山西地震带交汇区的地壳剪切波分裂.地球物理学报, 54(6):1517-1527, doi:10.3969/j.issn.0001-5733.2011.06.011. http://www.geophy.cn//CN/abstract/abstract7985.shtml
赵越, 陈斌, 张拴宏等.2010.华北克拉通北缘及邻区前燕山期主要地质事件.中国地质, 37(4):900-915. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZI201004009.htm
朱日祥, 郑天愉.2009.华北克拉通破坏机制与古元古代板块构造体系.科学通报, 54(14):1950-1961. http://mall.cnki.net/magazine/Article/KXTB200914003.htm
朱日祥, 陈凌, 吴福元等.2011.华北克拉通破坏的时间、范围与机制.中国科学:地球科学, 41(5):583-592. http://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201105001.htm
朱日祥, 徐义刚, 朱光等.2012.华北克拉通破坏.中国科学:地球科学, 42(8):1135-1159. http://www.nsfc.gov.cn/publish/portal0/zdyjjh/2015/info50107.htm
-
