The seismological application prospect of strain tensor meters
-
摘要:

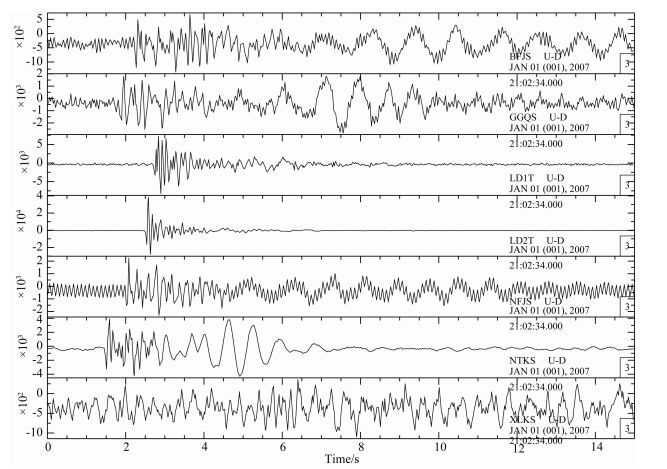

地震发生时的动态应变场，在研究地震触发、地震破裂、地面破坏、水文和岩浆变化等方面都具有重要应用意义.地震的应变张量观测和现有的惯性地震仪观测的物理量不同.前者可以直接记录到地震发生时震源辐射的应变（应力）波，而后者记录到的是位移、速度或加速度.地震频率的应变测量在地震学中的应用前景主要表现在：①测量震源机制解理论预言的辐射4象限分布；②测量库仑应力变化；③换算成动态应力以评估地震烈度；④测量地震波的能量密度；⑤测量地震断层形变加速和形变局部化过程.用惯性地震仪的记录虽然在理论上也可以解算出动态应变值，然而种种原因导致计算结果的误差很大，往往不可接受.应变张量地震仪若能与现有的惯性地震仪配套起来，形成大规模台阵，则有可能推动应变地震学的诞生，在地震观测和地震学科领域引起重大革新.
Abstract:The dynamic strains associated with seismic waves may play a significant role in earthquake triggering, hydrological and magmatic changes, earthquake damage, and ground failure. The physical quantity recorded of strain tensor meter is completely differ to that recorded of existing inertia seismometer. The former can directly measure the strains associated with seismic waves, and yet the latter measurement is displacement, velocity and acceleration. The application prospects of dynamic strains meter with seismic wave frequency are mainly (1) measurement of the radiation quadrant distribution of earthquake source mechanism; (2) measurement of Coulomb stress changing; (3) evaluation of earthquake intensity by converting dynamic strains to dynamic stresses; (4) measurement of energy intensity of seismic wave similarly; (5) measurement the process of strain acceleration of seismic fault and deform localization. Although the data recorded of the inertia seismometer can also be calculated to strains, however the error of the results are often too large due to the dependence of theory model and other reasons, and often be unacceptable. If the fiber laser strain tensor meters can be assorted to inertial seismometers and form large-scale seismic array, the strain seismology may be born and cause grave revolution in the area of earthquake observation and seismology.
-
-

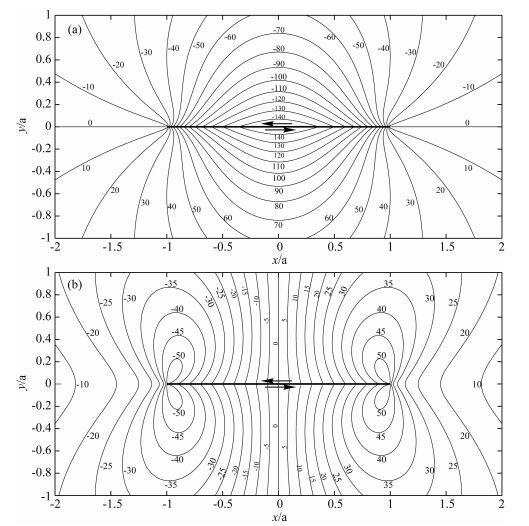

图 1
一个纯走滑断层的附加位移等值线.应力降Δτ=－67.7 MPa.破裂面两侧的箭头指断层面错动的方向
Figure 1.
Numerical calculation of the displacement contours for a strike slip fault, where stress drop Δτ=－67.7 MPa and the arrows indicate the sense of dislocation

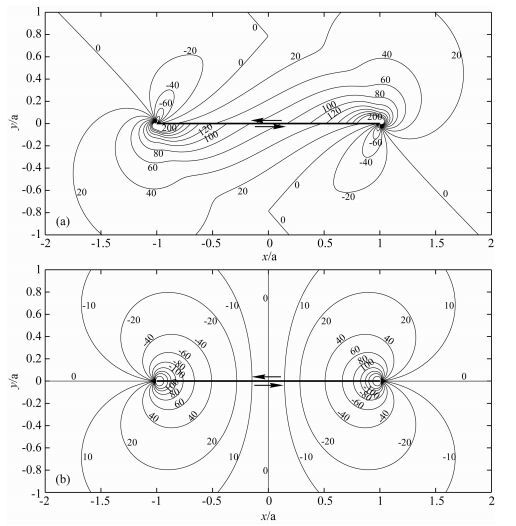

图 2
一个纯走滑断层的附加应力场(库仑应力变化).相应的应变分量可以用张量应变地震仪测得.应力降Δτ=－67.7 MPa
Figure 2.
Numerical calculation of the σ1 contours for a strike slip fault, where stress drop Δτ=－67.7 MPa Corresponding strain can be directly recorded by strain tensor meters.
图 3
由一个纯走滑断层的运动产生的地震波初动的压缩与膨胀的分布
Figure 3.
Distributions of compression and dilatation first motions for a strike slip fault

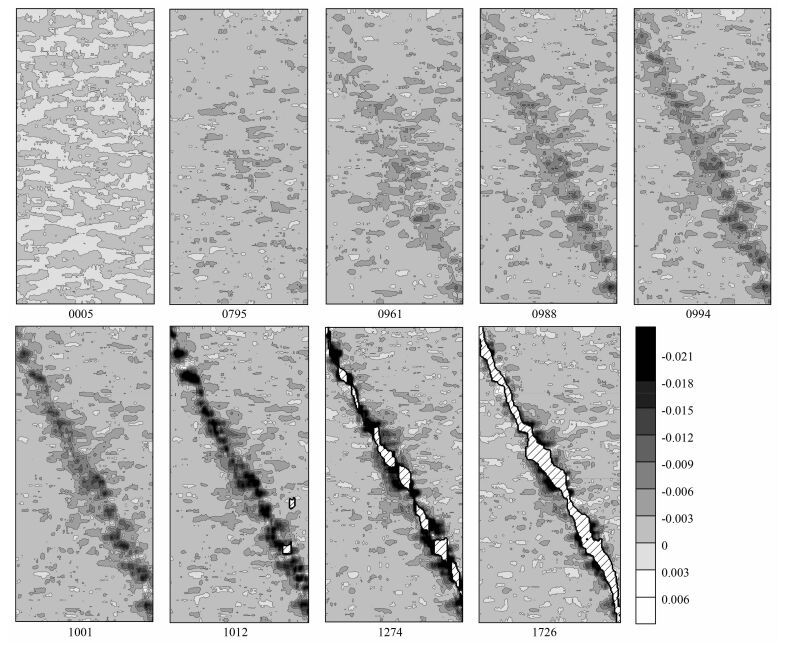

图 4
用白光数字散斑方法测量的岩石表面应变场ε22* (许向红, 2005)
Figure 4.
Rock surface strain ε22* field measured by Digital Speckle Correlation Method(Xu Xianghong, 2005)

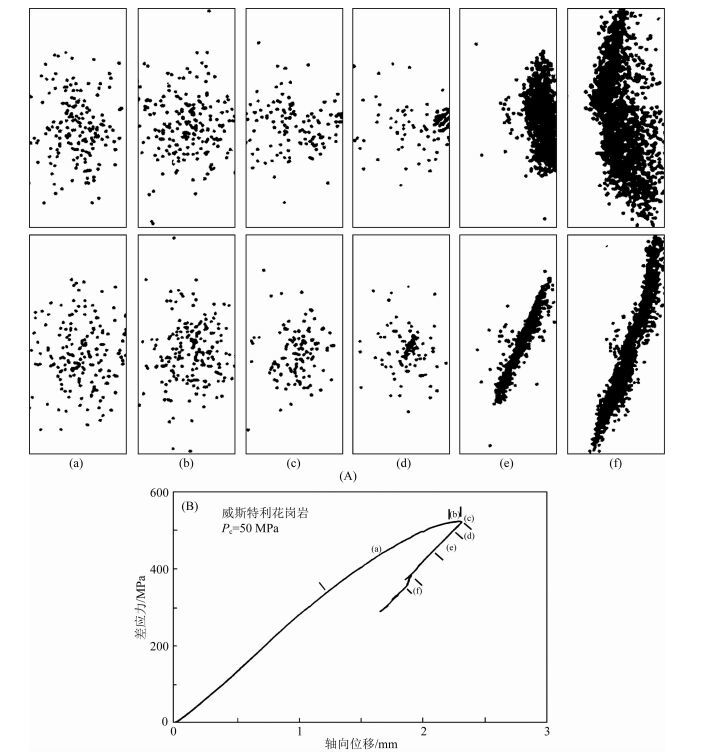

图 5
(A) Westerly花岗岩破裂过程中不同阶段获得的AE定位.上图从断层走向方向显示AE事件，下图从正对断层面显示AE事件; (B)相应位移-应力曲线, 变形过程中(a)—(f)阶段中记录到的声发射源的位置见上图(Lockner and Madden, 1991; 陈颙等，2009)
Figure 5.
(A) Acoustic emissions (AE) hypocenter locations during fault formation of initially intact Westerly granite.Time processes from left to right.Upper plots show events viewed along-strike of eventual fault plane. Lower show same events when fault plane is viewed on face-on.(B) Accompanying displacement-stress curve indicates segments of the experiment from which acoustic emission plots are made (Lockner and Madden, 1991; Chen Yong et al., 2009)
-
Berger J, Agnew D C, Parker R L, et al. 1979. Seismic system calibration: 2. Cross-spectral calibration using random binary signals. Bull. Seismol. Soc. Am., 69(1): 271-288.
Brodsky E E, Lay T. 2014. Recognizing foreshocks from the 1 April 2014 Chile earthquake. Science, 344(6185): 700-702. doi: 10.1126/science.1255202
Burridge R, Knopoff L. 1964. Body force equivalents for seismic dislocations. Bull. Seismol. Soc. Amer., 54(6A): 1875-1888. http://bssa.geoscienceworld.org/content/54/6A/1875
Chen Y, Huang T F, Liu E R. 2009. Rock Physics (in Chinese). Hefei: University of Science and Technology Press.
Chen Y T, Huang L R, Lin B H, et al. 1979. A dislocation model of the Tangshan earthquake of 1976 from the inversion of geodetic data. Acta Geophysica Sinica (in Chinese), 22(3): 201-217.
Chen Y T, Gu H D. 2017. Source Theories (In Press).
Chi S L, Chi Y, Deng T, et al. 2009. The necessity of building national strain-observation network from the strain abnormality before Wenchuan earthquake. Recent Developments in World Seismology (in Chinese), (1): 1-13. http://www.sciencedirect.com/science/article/pii/S1674984715300811
Fu S F, Zhu R Y. 1997. Higher Seismology (in Chinese). Beijing: Seimological Press, 50-51.
Geng N G. 1986. The development of b-value simulated experiments and the begining of b-value simulated experiments in China. Acta Seismologica Sinica (in Chinese), 8(3): 330-333.
Gladwin M T. 1984. High precision multi-component borehole deformation monitoring. Rev. Sci. Instru., 55(12): 2011-2016. doi: 10.1063/1.1137704
Gomberg J S, Agnew D C. 1996. The accuracy of seismic estimates of dynamic strains: An evaluation using strainmeter and seismometer data from Piñon Flat Observatory, California. Bull. Seismol. Soc. Am., 86(1A): 212-220. http://earthweb.ess.washington.edu/gomberg/Papers/Gomberg&AgnewBSSA96.pdf
Gu G H, Wang W X, Xu Y R, et al. 2009. Horizontal crustal movement before the 2008 Wenchuan MS8.0 earthquake obtained from GPS observations in regional network. Acta Seismologica Sinica (in Chinese), 31(6): 597-605.
Gu G H, Wang W X, Zan W, et al. 2015. Preseismic, coseismic and postseismic horizontal crustal movements of the Mw9.0 Tohoku earthquake in Japan, 2011. Geomatics and Information Science of Wuhan University (in Chinese), 40(12): 1669-1676.
Guo Z Q. 1982. Wave in Solids (in Chinese). Beijing: Seimological Press, 100.
He T M, Li S Y, Zhang H K, et al. 2011. Coulomb failure stress change in slip-weakening model and remote triggering of earthquakes. Acta Seismologica Sinica (in Chinese), 32(2): 165-186.
Jaeger J C, Cook N G W. 1979. Fundamentals of Rock Mechanics. 3rd ed. London: Chapman and Hall.
Jiang H K, Zhang L. 1998. Recent studies of acoustic emission for micro-fracture of source in rock. Translated World Seismology (in Chinese), (3): 1-7.
Kuksenko V, Tomilin N, Damaskinskaya E, et al. 1996. A two stage model of fracture of rocks. Pure and Applied Geophysics, 146(2): 253-263. doi: 10.1007/BF00876492
Li S Y, He X S. 2003. Accurately appraising the information amount of seismicity patterns. Recent Developments in World Seismology (in Chinese), (4): 29-31.
Li S Y, He T M, Yin X C. 2010. Introduction of Rock Fracture Mechanics (in Chinese). Hefei: University of Science and Technology Press.
Li S Y, He T M, Yin X C. 2015. Rock Fracture Mechanics (in Chinese). Beijing: Science Press.
Liu W Y, Zhang W T, Li L, et al. 2012. Optical fiber sensory technology: future direction for earthquake precursor monitoring. Earthquake (in Chinese), 32(4): 92-102. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZN201204010.htm
Lockner D A, Madden T R. 1991. A multiple crack model of brittle fracture: 2. Time-dependent simulations. J. Geophys. Res., 96(B12): 19643-19654.
Maruyama R. 1963. On the force equivalents of dynamical elastic dislocations with reference to the earthquake mechanism. Bull Earthq. Res. Inst., Tokyo Univ., 41: 467-486. http://repository.dl.itc.u-tokyo.ac.jp/dspace/bitstream/2261/12122/1/ji0413002.pdf
Ouyang Z X. 2011. U.S. PBO Project: Borehole strainmeter networks face a challenge. Recent Developments in World Seismology (in Chinese), (10): 19-28.
Qiu Z H, Zhang B H. 2002. Current situation of the seismological networks for borehole stress-strain precursor surveilance in China. Recent Developments in World Seismology (in Chinese), (6): 5-9.
Qiu Z H, Shi Y L. 2004. Developments of borehole strain observation outside China. Acta Seismologica Sinica (in Chinese), 26(S1): 162-168. http://cat.inist.fr/?aModele=afficheN&cpsidt=22873922
Qiu Z H, Zhang B H, Tang L, et al. 2011. Abnormal strain changes observed at Guza before the Wenchuan earthquake. Sci. China Earth Sci., 54(2): 233-240. doi: 10.1007/s11430-010-4057-1
Xu X H. 2005. Effects of mesoscopic heterogeneity on macroscopic deformation, damage and catastrophic failure of rock [Ph.D.](in Chinese). Beijing: Graduate School of Chinese Academy of Sciences.
Yan J Q, Hao Y Q. 2005. Intensity and acceleration applied in engineering fortification against earthquake. Cities and Disaster Reduction (in Chinese), (6): 17-18.
Yin X C, Zheng T Y. 1983. A rheological model for the process of preparation of an earthquake. Science China Chemistry, 26(3): 285-296.
Yin X C. 1985. Solid Mechanics (in Chinese). Beijing: Earthquake Press.
Yin X C. 2011. Solid Mechanics (in Chinese). Beijing: Earthquake Press.
陈颙, 黄庭芳, 刘恩儒. 2009.岩石物理学.合肥:中国科学技术大学出版社.
陈运泰, 黄立人, 林邦慧等. 1979.用大地测量资料反演的1976年唐山地震的位错模式.地球物理学报, 22(3): 201-217. http://www.geophy.cn/CN/abstract/abstract5387.shtml
陈运泰, 顾浩鼎. 2017. 震源理论(待发表).
池顺良, 池毅, 邓涛等. 2009.从5.12汶川地震前后分量应变仪观测到的应变异常看建设密集应变观测网络的必要性.国际地震动态, (1): 1-13. http://www.cnki.com.cn/Article/CJFDTOTAL-GJZT200901002.htm
傅淑芳, 朱仁益. 1997.高等地震学.北京:地震出版社, 50-51.
耿乃光. 1986. b值模拟实验的进展和我国b值模拟实验的开端.地震学报, 8(3): 330-333.
顾国华, 王武星, 徐岳仁等. 2009.区域网GPS观测得到的2008年汶川MS8.0地震前的地壳水平运动.地震学报, 31(6): 597-605. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXB200906000.htm
顾国华, 王武星, 占伟等. 2015.东日本Mw9. 0大地震前、同震及震后地壳水平运动.武汉大学学报(信息科学版), 40(12): 1669-1676. http://www.cnki.com.cn/Article/CJFDTOTAL-WHCH201512017.htm
郭自强. 1982.固体中的波.北京:地震出版社, 100.
和泰名, 李世愚, 张洪魁等. 2011.滑动弱化模型下的库仑应力变化与远程触发问题.地震学报, 33(2): 165-186. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXB201102006.htm
蒋海昆, 张流. 1998.岩石微破裂震源过程的声发射研究进展.世界地震译丛, (3): 1-7. http://www.cnki.com.cn/Article/CJFDTOTAL-DZYC199803000.htm
李世愚, 和雪松. 2003.应正确评估地震活动图像的信息量.国际地震动态, (4): 29-31. http://www.cnki.com.cn/Article/CJFDTOTAL-GJZT200304009.htm
李世愚, 和泰名, 尹祥础. 2010.岩石断裂力学导论.合肥:中国科学技术大学出版社, 1-468.
李世愚, 和泰名, 尹祥础. 2015.岩石断裂力学.北京:科学出版社.
刘文义, 张文涛, 李丽等. 2012.光纤传感技术—未来地震监测的发展方向.地震, 32(4): 92-102. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201204010.htm
欧阳祖熙. 2011.美国PBO计划:钻孔应变仪台网遭遇挑战.国际地震动态, (10): 19-28. doi: 10.3969/j.issn.0235-4975.2011.10.005
邱泽华, 张宝红. 2002.我国钻孔应力-应变地震前兆监测台网的现状.国际地震动态, (6): 5-9. http://www.cnki.com.cn/Article/CJFDTOTAL-GJZT200206001.htm
邱泽华, 石耀霖. 2004.国外钻孔应变观测的发展现状.地震学报, 26(S1): 162-168.
邱泽华, 张宝红, 唐磊等. 2010.汶川地震前姑咱台观测的异常应变变化.中国科学:地球科学, 40(8): 1031-1039. http://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201008009.htm
Roeloffs E, Hodgkinson K, Bryan C等. 2007.对美国地质调查局1985—2004年所收集的钻孔应变仪数据的评估.地壳构造与地壳应力, (2): 1-66. http://www.cnki.com.cn/Article/CJFDTOTAL-DQGD200702002.htm
许向红. 2005. 岩石的细观非均匀性对其宏观变形、损伤和灾变的影响[博士论文]. 北京: 中国科学院研究生院.
鄢家全, 郝玉芹. 2005.工程抗震设防中的烈度与加速度.城市与减灾, (6): 17-18.
尹祥础, 郑天愉. 1982.地震孕育过程的流变模式.中国科学, B辑, (10): 922-930.
尹祥础. 1985.固体力学.北京:地震出版社.
尹祥础. 2011.固体力学.北京:地震出版社.
-
